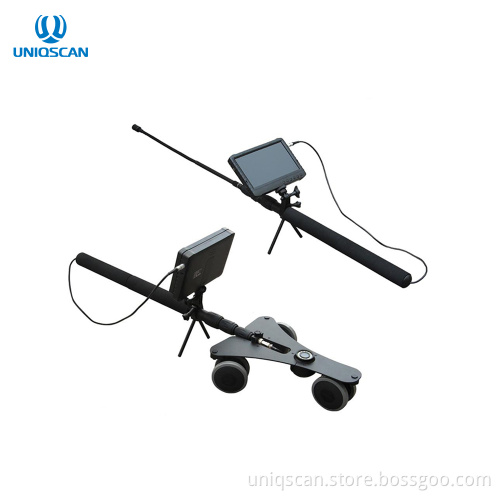

7-inch monitor high-resolution flexible camera DVR device

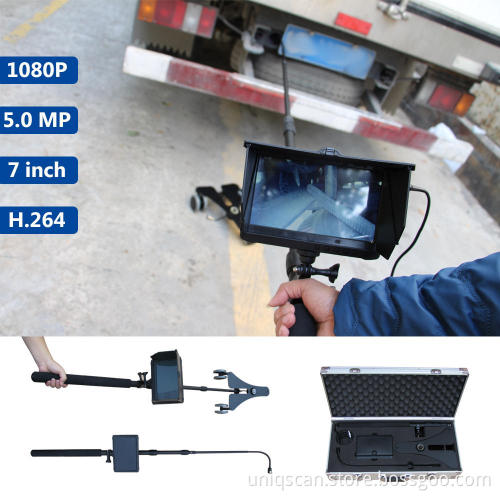

High Resolution Under Vehicle Surveillance DVR Equipment

1)Mini camera for Wheels tray
1.Optical Element:1/2.5 CMOS Sensor SONY
2.Optical Total Pixels:2.5M :2000(H)×1121(V)
3.CMOS Sensor Size:5.6mm(H)×3.14mm(V)
4.Sensitivity :0.08Lux/F1.2
5.Lens & View angle:3.6mm F1.2 (H )90 °
6.HD Video Output Interface:FPD-LinkⅢ
7.Waterproof rate:IP68
8.Camera Pole:2m Telescopic Survey Pole
9.Dimension & Weight :18 x 28mm, 10g
10.Cable Diameter:3.5mm Length:2.7meters

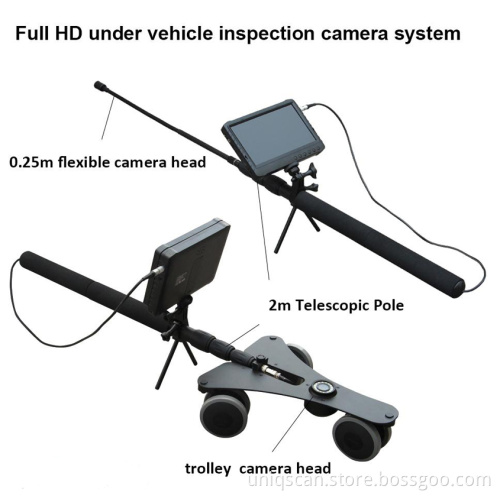

2)Flexible camera
1.Optical Element :1/3 CMOS Sensor
2.Optical Total Pixels :3.5 Mega :2304(H)×1536(V)
3.CMOS Sensor Size :5.07mm(H)×3.38mm(V)
4.Sensitivity :0.2Lux/F1.2
5.Lens & View angle:0.5mm F1.2 90 °
6.HD Video Output Interface :FPD-LinkⅢ
7.Waterproof rate:IP68
8.Dimension & Weight :18 x 28mm, 10g
9.Cable Diameter:3.5mm Length:3 meters
10.Camera Pole: 2m Telescopic Survey Pole

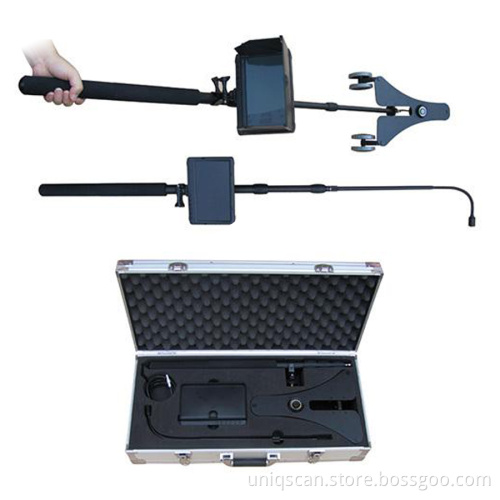

Neutral Packing:
Q'TY: 1 PCS/Aluminum Case
N.W.: 7.5 KGS
G.W.: 8.0 KGS
Carton MEAS.: 65(L)*33(W)*16(H)mm

Pre-Sales Service                                  After-Sales Service
* Inquiry and consulting support.           * Training how to instal the machine, training how to use the machine.
* Sample testing support.                      * Engineers available to service machinery overseas.
* View our Factory.

Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

We owns all of the intellectual property rights(IPR) to its core technologies,and have a experience engineer,sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house...etc. Wins a good reputation from end users from China and overseas.

We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services.

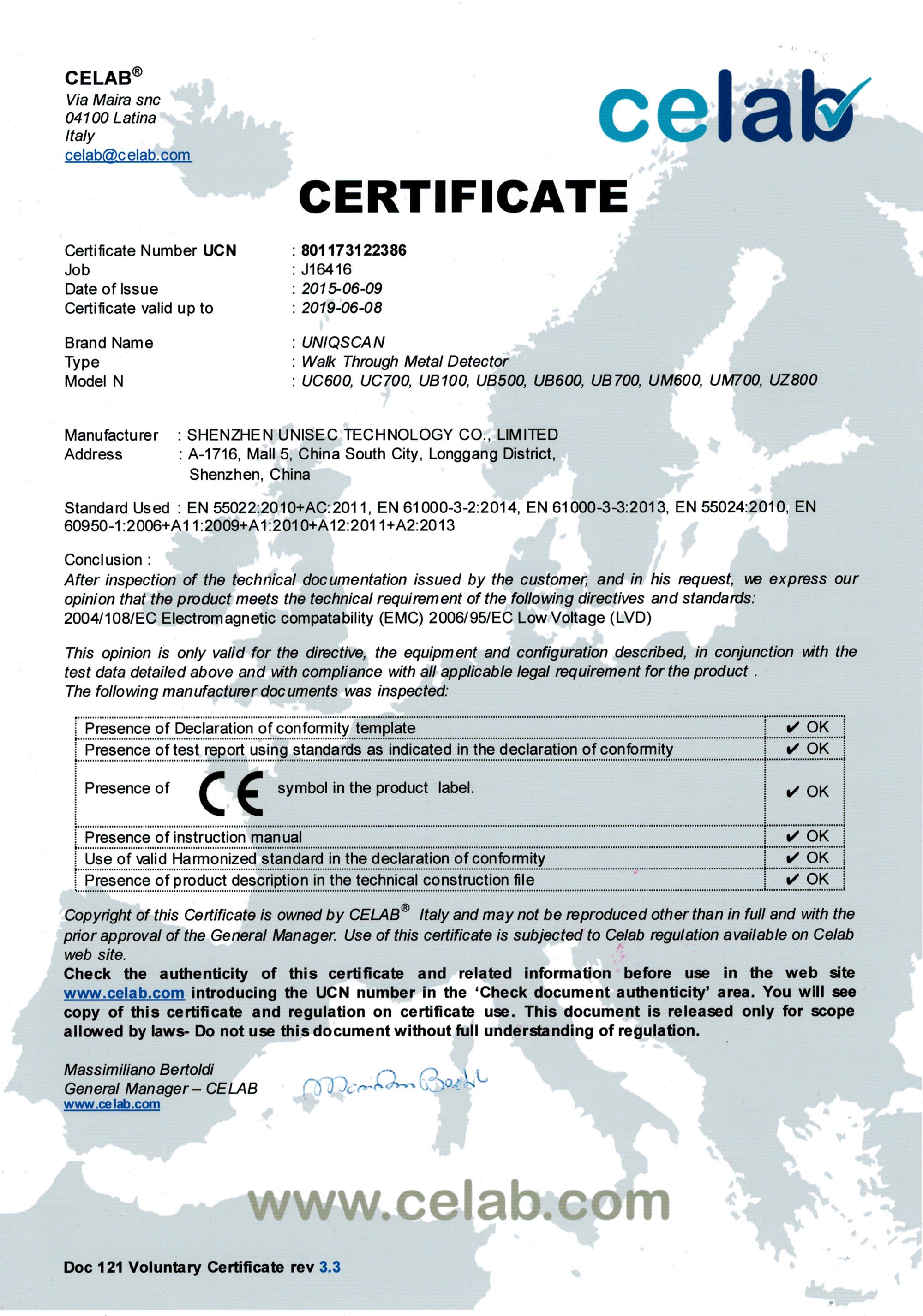

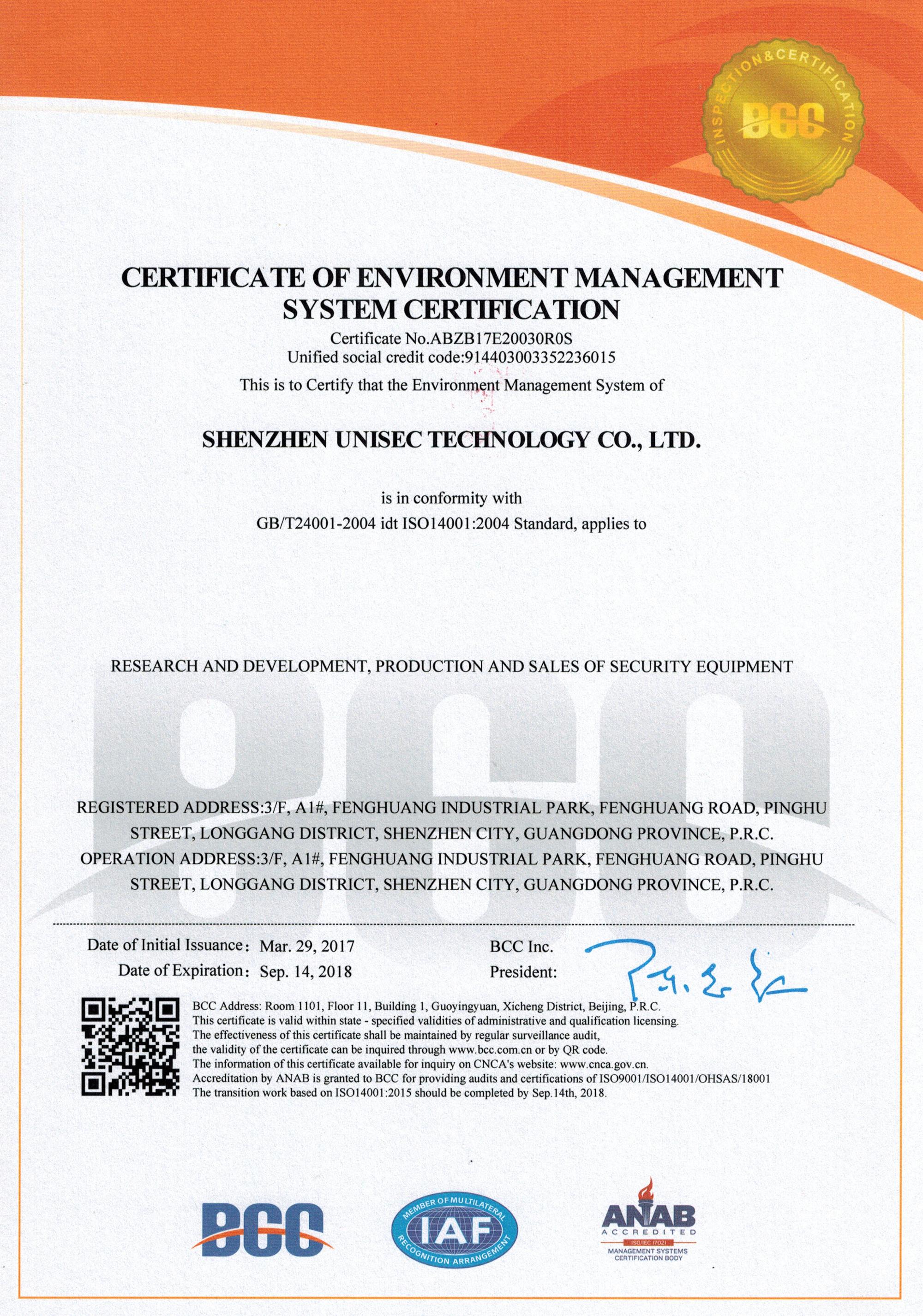

Certifitions
