Security retractable road block barriers bollards
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean
- Port:
- SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1500 Piece/Pieces per Week |
|---|---|
| Payment Type: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | SHENZHEN |

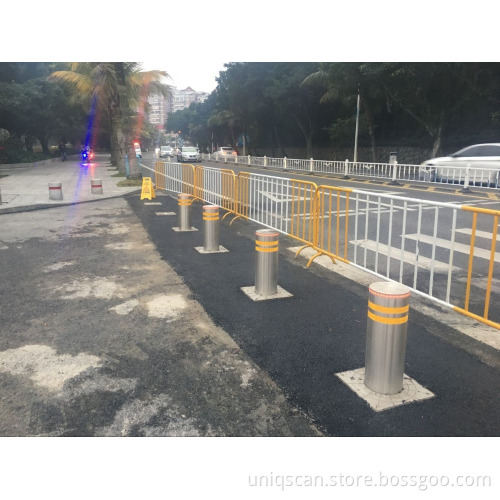

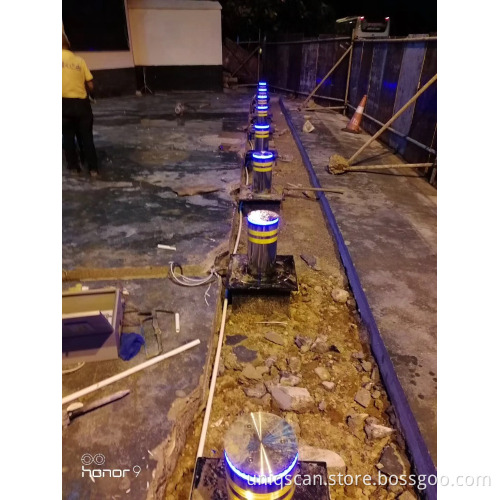

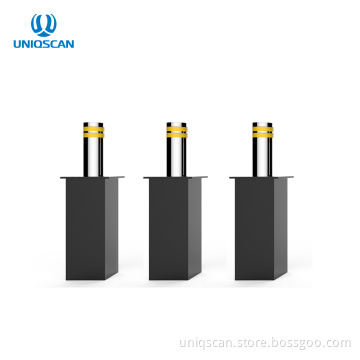

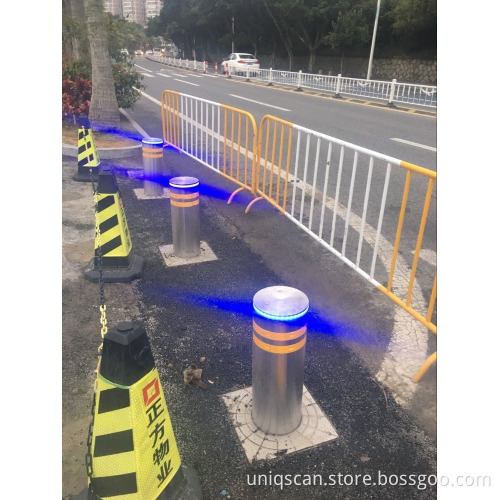

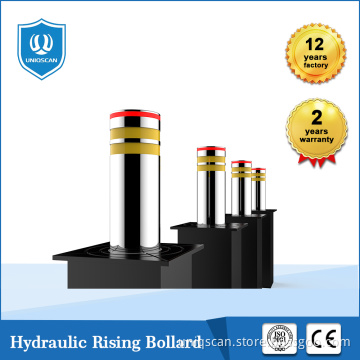

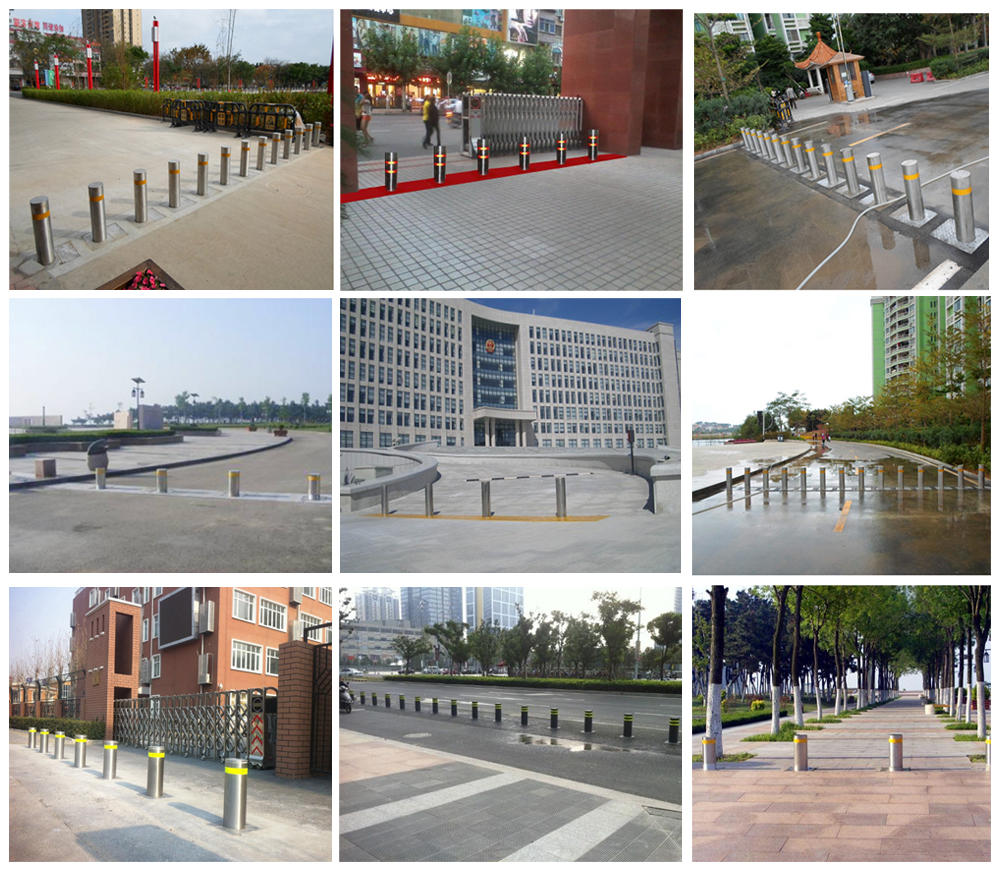

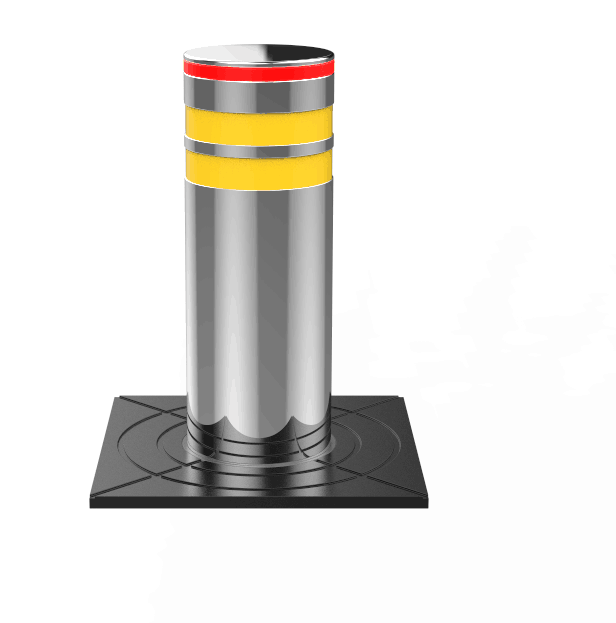

Security retractable road block barriers automatic rising lifting bollards for hotel entry
Control System | Integrated Electro- Hydraulic |
Passing pressure: | ≤80- 120 tons container trucks |
Voltage: | AC220V 50Hz Integrated |
System Dynamic power | 350W Integrated |
Rise time : | ≤3-4S (adjustable) (adjustable) |
fall time : | ≤3-4S (adjustable)
|
Material: | 304 stainless steel |
Rising height: | 600mm |
Diameter | 168mm,219mm,273mm (can be customized) |
External housing size | 430*430*1130mm/500*500*900mm
|
Thickness of bollard | 6mm,8mm,10mm.12mm,15mm,30mm (optional) |
Working Temperature : | -35℃~75℃(suitable) |
Storage Environment : | 10℃~65℃, Waterproof and moisture-proof |
Solenoid valve voltage :
| 24V |
Remote control distance | Approx .50m-100m |
Running noise | ≤60 db |
Waterproof: | IP68, double sealed |
Weight: | 200 KG approx. |
Main Function:
l Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
l Integrated electrical mechanism :stroke 600mm,Cylinder outer diameter 60mm,Rod diameter:16mm.
l 6k Mirror cylinder
l Colorful With LED (Acrylic light circle)
l Reflective sticker :2 strips
l Gang-control interface
l Can be manually fall down if power cut.
l Available to reverse operation during rising or falling down
l Hydraulic drive comes with hydraulic lock
l PLC programming command control system
l LCD display ,Both Chinese and English menu.
l PLC built-in encryption system
