Vehicle monitoring system car bomb detector used

Vehicle monitoring system car bomb detector used

$12500.00

≥1 Others

Min. Order:: 1 Unit

Min. Order:: 1 Unit

Transportation:: Ocean

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	300 Unit/Units per Month
Payment Type:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Incoterm:	FOB
Transportation:	Ocean
Port:	Shenzhen

Product Description

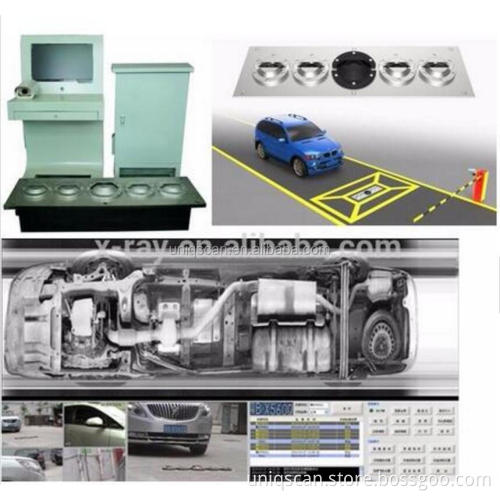

Under Vehicle Surveillance System Car Bomb Detector for prison with high definition and scaned images UV300-F

Under Vehicle Surveillance System fixed type UV300-F

Parameters:

Store or load time:	<1 second
Vehicle Image local magnification:	> 2 times
Vehicle Image scaling:	16 times
Vehicle image display mode:	large format transverse
Vehicle image storage format:	BMP or JPEG
System interface language:	English (can be customized)
Display resolution:	1920 * 1080P
Communication interface:	RS232/RS422
Scene image display:	≥1 channel
Speed identification:	when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image
Scan mode:	linear scanning, the ground sensor coil trigger
Vehicle speed:	1-60km/h, suggest speed : less than 30km/h
View angle:	175 degrees
Image Longitudinal resolution:	2048 pixels CCD
Scanner connecting cable:	100 meters (can be customized)

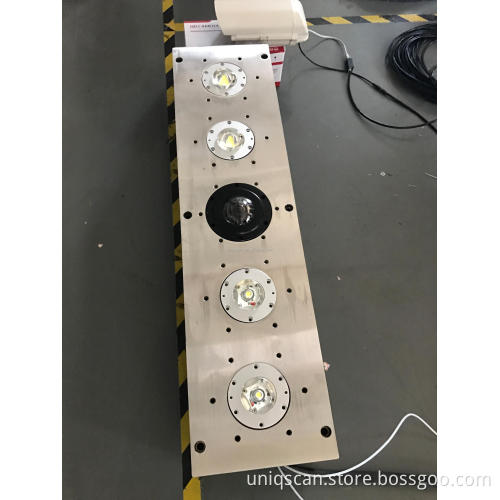

Lighting components :	Four single sealed LED surface light source
Life :	100,000h

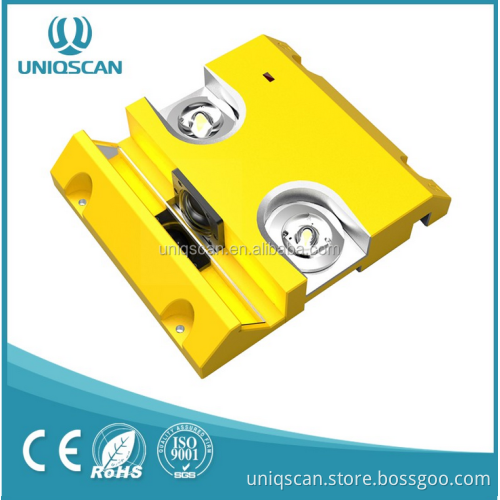

Under Vehicle image scanner with a unique open-wide field scan design
Working voltage:	DC24V
Power Supply:	AC110V-240V/50-60Hz
Structure design:	single sealed design
Loading weight:	30 Tons
Scanner size:	1200350210mm
Weight:	180kg
Environment temperature:	-40 degrees - +70 degrees

License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )

Computer:

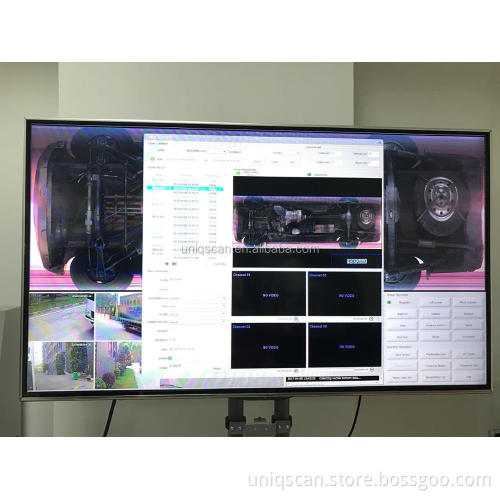

Display:	22 inch color LCD Screen
CPU:	INTEL core Quad-Core Processor
Motherboard :	dedicated motherboard
Memory :	DDR3 , more than 4GB
Hard disk :	500G high-speed hard disk
Graphics card :	DDR3, 192BIT independent graphics
Appearance:	stainless steel composite material
Working current:	3A
Working temperature :	-20 ℃ ~ 55 ℃

Under Vehicle Surveillance System Car Bomb Detector for prison with high definition and scaned images UV300-F
