Laminated Glass Switchable Pdlc Electrochromic Film

Laminated Glass Switchable Pdlc Electrochromic Film

1. What are the product advantages of automotive Frosted Window Electric Film?

Advantage 1: It can be electronically controlled, and can be adjusted to two states of transparency and atomization. Laminated Smart Film is mainly made of liquid crystal polymer mixed material injected into the middle of two transparent conductive films, and its light transmittance is as high as 90%.

Advantage 2: Sunshade, anti-ultraviolet, explosion-proof, relying on liquid crystal dimming film to refract sunlight and take away heat by the way. In the case of exposure to the sun, it can effectively avoid the sultry feeling in the car. The explosion-proof effect is also better than the general explosion-proof membrane.

Advantage 3: Projection, the opacity in the power-off state, and its milky white and light gray Magic Smart Film has a very good projection effect in the power-off state, and can be viewed on both sides.

Advantage 4: It is thinner than ordinary film, and it fits better on the glass, and there will be no scratches or folds during the lifting process.

Also Extra Transparency Self Adhesive Switchable Film >89% light tranmittance.

2. Does this dimming glass need to be modified by the car owner? Similar to the sticking method of explosion-proof film, plus an electronic modification. Because it needs to be powered on, the two modes of transparency and atomization can be adjusted with one key of electricity.

Dimming Smart Glass Pdlc Film for Conference Room Installation Tips:

1. Check each piece after your receive and open the carton.

2. Test each piece before you install.

3. Use clean water or alcohol to clean the glass before installation. Never use anything acidity nor alkalinity.

4. The glass must be clean, dry and flat before sticking the smart film.

5. All bubbles should be scraped out.

6. Pls kindly not tear off the tape on the busbar. It can protect the busbar.

7. After installation, the smart film edge should be sealed with neutral glass silicone, never acidity nor alkalinity.

Abstract: A method for manufacturing a light-adjusting thin film electrode is provided with a light-adjusting liquid crystal layer. The light-adjusting liquid crystal layer is provided with conductive films on two sides of the liquid crystal layer, and pressure sensitive films are respectively provided on the outer sides of the two conductive films relative to the liquid crystal layer. The manufacturing process of the adhesive includes: cutting the High Transparent Pdlc Switchable Glass Film,  Switchable Electric Glass Decorative Film from the upper and lower surfaces on two sides respectively, removing a single layer of pressure-sensitive adhesive, a conductive film and a liquid crystal layer in sequence from the outside to the inside to form a connecting groove, and the connecting groove is on the inner side The surface of the conductive film is coated with conductive glue, and then a mesh conductor is installed, and the exposed part of the mesh conductor extends to the outside of the Self Adhesive Smart Film. The conductive glue is cured by heating in a heating furnace, and the mesh conductor is welded on the surface of the exposed part. The solder joints are formed to connect the conductive lines, so that the solder of the solder joints sinks into the grid structure of the mesh conductors, so that the conductive glue can firmly and effectively combine the conductive film and the mesh conductors, and it can also make the soldering easier. The high temperature will not be conducted to the liquid crystal layer and the conductive film to avoid damaging the functions of the liquid crystal layer and the conductive film, and can effectively allow the voltage and current to be uniformly conducted to the conductive film through the mesh conductor, so as to improve the reaction and performance of the Pdlc Smart Film and

Some main features of Pdlc Electric Smart Film:

1. Privacy Smart Film Dimming: The intelligent electronically controlled privacy smart film; dimming pdlc film has the ability to quickly and freely adjust the transmittance of visible light and infrared light. It only takes about 1‰ second from opaque state to transparent state, and only 1% second from transparent to opaque state, and its transparency can be changed in an instant.

2. Safety: Due to the production process of Pdlc Smart Film, the safety of intelligent Electric Smart Adhesive Film Glass is improved. The  Extra Transparency Laminated Switchable Film in the smart electronically controlled eletrical Pdlc film firmly sticks the Smart Glass Shower Door, so that when the Smart Film Glass Pdlc is impacted and broken, the glass fragments stick to the PDLC Lamination Smart Film in the middle, and the fragments will not splash and hurt people.

3. Environmental protection and energy saving: With the continuous improvement of the quality of life, the concept of healthy and environmentally friendly life has become more popular, and the intelligent Frosted Window Electric Film, adopts a more humanized design in technology. According to professional reports, a considerable part of the indoor temperature is generated by direct sunlight entering the room from outside the window. After using the glass, it has heat insulation and heat preservation performance, which can greatly save energy. At the same time, it can also shield more than 90% of infrared rays and ultraviolet rays, reducing infrared heat radiation and transmission, which not only achieves environmental protection and energy conservation, but also makes us feel at ease. enjoys the bright sunshine.Privacy glass film pdlc; low cost Pdlc film; smart film for glass; Pdlc self adhesive smart tint are all environmental protection and energy saving.

Product Parameters

Smart PDLC Film Glass Application

PDLC Smart Film Production Process;

4.5m Full Auotmatic Cutting Machine to cut smart film;

Make Busbar

The accessories for making busbar

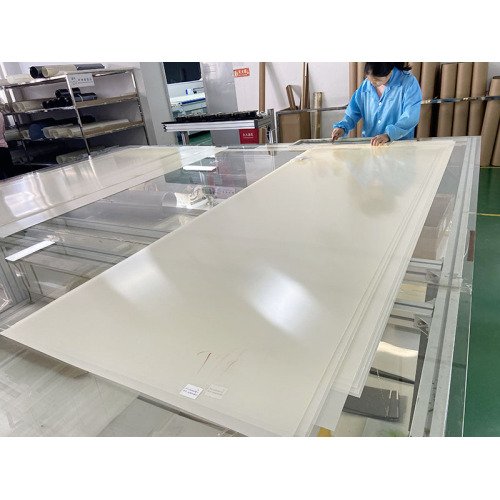

Check and test smart film

Packing of smart film
