Transparent-opaque Privacy Smart Film PDLC Window Film

Product Description

Transparent-opaque Privacy Smart Film PDLC Window Film

The Difference of PDLC Switchable Smart Film and Switchable Smart Glass

1. In terms of cost, the magic glass is made of laminated glass by placing the liquid crystal film in the middle of two layers of glass original sheets through high temperature and high pressure. The self-adhesive Smart Window film is directly made of ITO film with adhesive backing, which can be directly attached to the glass. In terms of cost, the self-adhesive dimming film saves the cost of the original glass sheet and all the costs of processing it into glass, and the price will of course be...
2. In terms of transportation, electronic glass is a fragile product, there are certain risks in transportation, and it is very heavy. It must be packed in wooden boxes for long-distance transportation, and export wooden boxes are required to export to foreign countries. The cost of wooden boxes and freight are relatively high. The self-adhesive film can be rolled into a roll-shaped package, which is smaller in size, lower in shipping costs, and safer and more convenient for transportation.
3. Installation The installation method of privacy glass is basically the same as that of ordinary glass, except that the wiring needs the guidance of the manufacturer, other processes can be completed as ordinary glass installation. The filming process of self-adhesive film is more complicated. It not only requires the glass surface to be clean and flat, but also requires the operator to have skilled techniques. There are many places to pay attention to.

Smart Film Installation Tips:

1. Check each piece after your receive and open the carton.

2. Test each piece before you install.

3. Use clean water or alcohol to clean the glass before installation. Never use anything acidity nor alkalinity.

4. The glass must be clean, dry and flat before sticking the smart film.

5. All bubbles should be scraped out.

6. Pls kindly not tear off the tape on the busbar. It can protect the busbar.

7. After installation, the smart film edge should be sealed with neutral glass silicone, never acidity nor alkalinity.

30W -- 5sqmt-- 53.82sqft

50W -- 8sqmt-- 86.11sqft

100W-- 15sqmt-- 161.46sqft

200W-- 30sqmt-- 322*92sqft

300W-- 50sqmt-- 538.20sqft

500W-- 80sqmt-- 861.11sqft

PDLC Smart Glass Technology

Smart Glass is a state of the art laminated glass with a liquid crystal PDLC interlayer sandwiched between two sheets of glass.

How it Works
In clear mode an electrical current is passed through the PDLC (Polymer Dispersed Liquid Crystal) interlayer which aligns the microscopic crystals along a number of parallel axes, thus allowing vision through the glass.

Available as a Self-Adhesive Film for Existing Glass

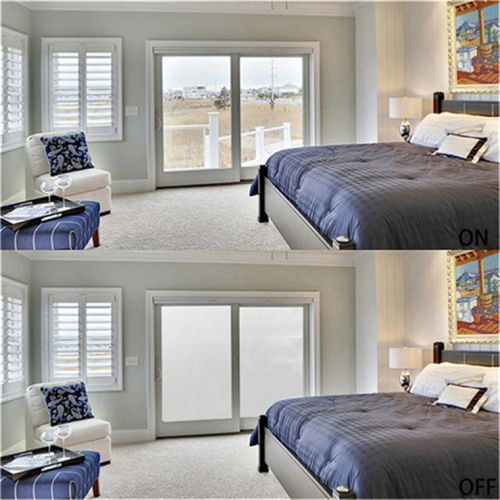

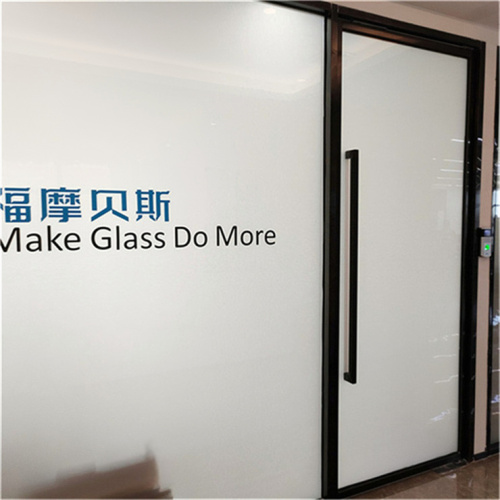

Self adhesive Smart Window Film applies to any existing or new smooth glass surface. A simple ON – OFF mode switches the PDLC film from being clear (transparent) to frosted (opaque).

Product Parameters

Application

Factory

4.5m Full Auotmatic Cutting Machine

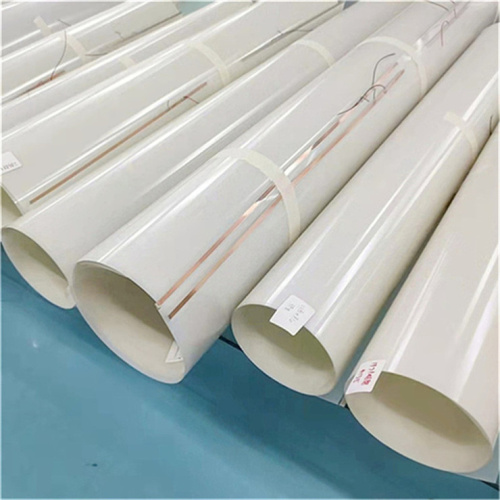

Smart Film Pieces

Work Table

Make Busbar

Goods Shipping
