Magic Smart Glass Switchable Smart Glass

Product Description

Magic Smart Glass Switchable Smart Glass

For many domestic building material manufacturers and even glass practitioners, Magic Smart Glass is a brand new product. Electronically controlled dimming glass According to the similarities and differences of control methods and principles, dimming glass can realize the switching of transparent and opaque states of glass through various methods such as electronic control, temperature control, light control, and voltage control. Due to various constraints, almost all of the Lcd Switchable Privacy Glass that is mass-produced on the market are electronically controlled Smart Glass Film. The principle of the electronically controlled dimming glass is relatively easy to understand: when the electronically controlled product is turned off, the liquid crystal molecules in the electronically controlled Pdlc Film Smart Glass will show an irregular dispersion state, so that the light cannot be injected, and the electronically controlled glass will appear opaque. After power-on, the liquid crystal molecules inside are neatly arranged, light can penetrate freely, and the electronically controlled liquid crystal glass is transparent at this time. Switchable Smart Glass; Lcd Switchable Privacy Glass. Smart Glass. Get Smart Film. Switchable Privacy Glass Film.
Pdlc Smart Film, Switchable Smart Film.

Switchable Smart Film Electronic Area and Transformer Wattage

30W -- 5sqmt-- 53.82sqft

50W -- 8sqmt-- 86.11sqft

100W-- 15sqmt-- 161.46sqft

200W-- 30sqmt-- 322*92sqft

300W-- 50sqmt-- 538.20sqft

500W-- 80sqmt-- 861.11sqft

PDLC Smart Glass Technology

Smart Glass is a state of the art laminated glass switchable smart glass with a liquid crystal PDLC interlayer sandwiched between two sheets of glass.

How it Works
In clear mode an electrical current is passed through the PDLC (Polymer Dispersed Liquid Crystal) interlayer which aligns the microscopic crystals along a number of parallel axes, thus allowing vision through the glass.

Available as a Self-Adhesive Film for Existing Glass

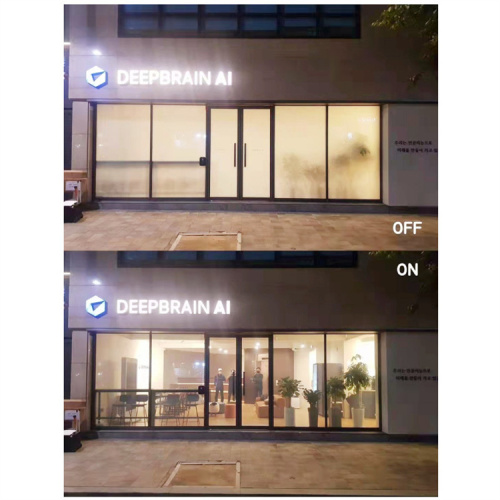

Self adhesive Smart Window Film applies to any existing or new smooth glass surface. A simple ON – OFF mode switches the PDLC film from being clear (transparent) to frosted (opaque).

Smart Film Installation Tips:

1. Check each piece after your receive and open the carton.

2. Test each piece before you install.

3. Use clean water or alcohol to clean the glass before installation. Never use anything acidity nor alkalinity.

4. The glass must be clean, dry and flat before sticking the PDLC smart film.

5. All bubbles should be scraped out.

6. Pls kindly not tear off the tape on the busbar. It can protect the busbar.

7. After installation, the smart film edge should be sealed with neutral glass silicone, never acidity nor alkalinity.

Product Parameters

Application

Factory

4.5m Full Auotmatic Cutting Machine

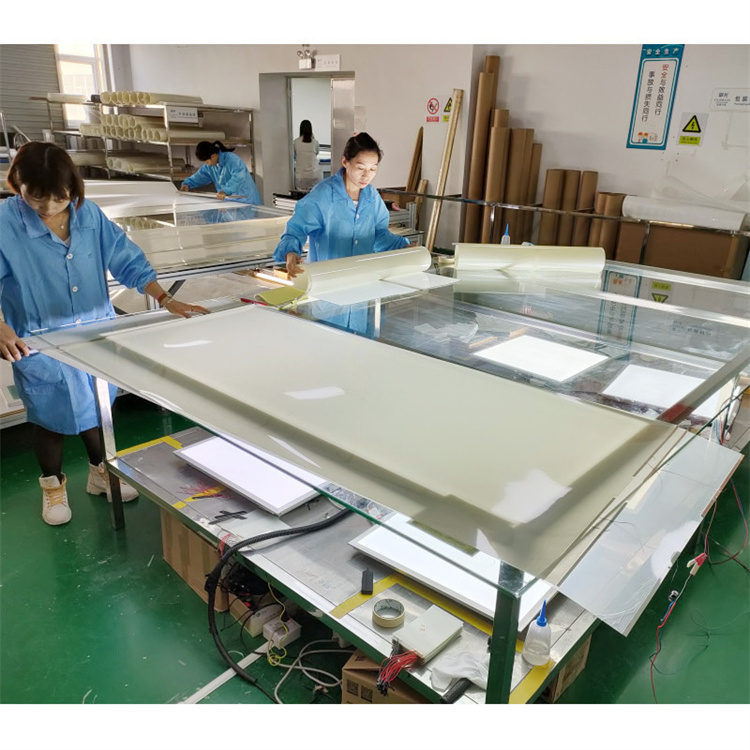

Smart Film Pieces

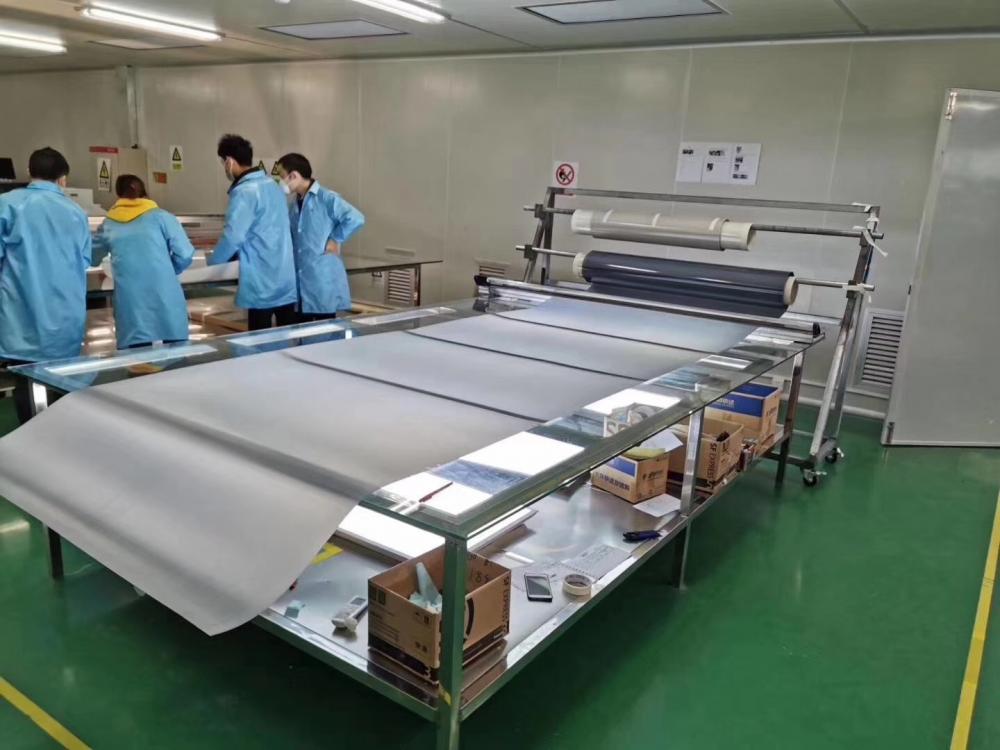

Work Table

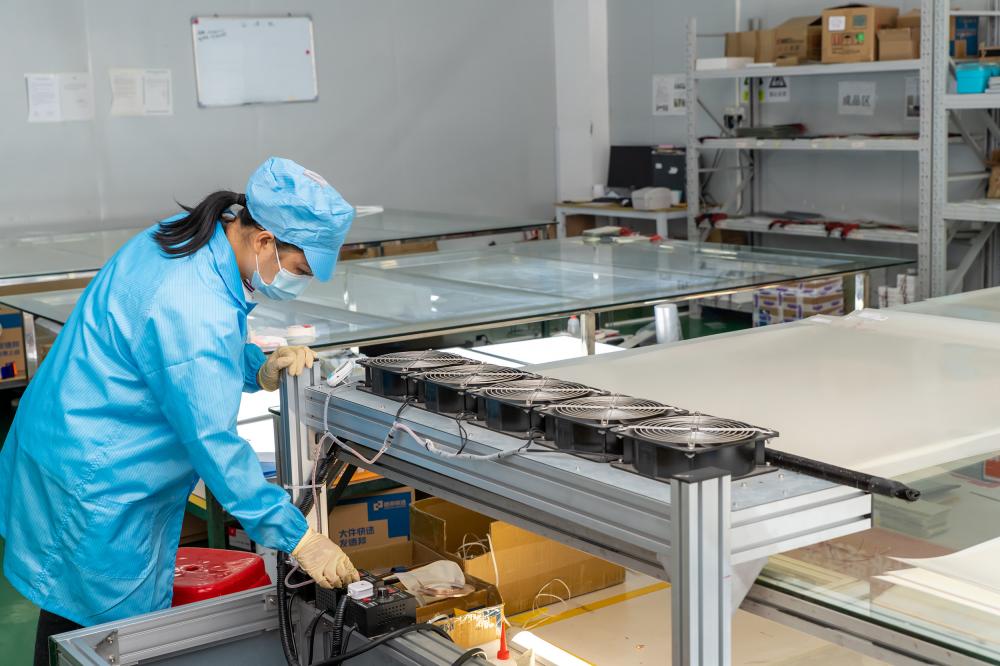

Make Busbar

Goods Shipping
