PDLC Self Adhesive Smart Film for Sliding Door

PDLC Self Adhesive Smart Film for Sliding Door

$28.00

1-49 Square Meter
$23.00

50-99 Square Meter
$18.00

≥100 Square Meter

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Description

What is Self Adhesive Intelligent Film

Intelligent Film is a new technology product that combines a liquid crystal/polymer hybrid material in the middle of two flexible ITO transparent conductive films. It is composed of PET polyester resin, flexible ITO transparent conductive film, PDLC polymer dispersed liquid crystal molecules, flexible ITO transparent conductive film, and PET polyester resin. It can be adjusted to a transparent and atomized (transparent but not transparent) state, that is, when there is no electric field. Under the circumstance, the liquid crystal/polymer hybrid material in the middle of the light-adjusting film will present an irregular and disorderly arrangement, so that it will form a transparent and opaque atomized state. When the current is applied, the liquid crystal/polymer hybrid material will achieve Arranged in an orderly manner, at this time, the PDCL FILM will switch from the atomized state to the transparent state. Through the action of the electric field, it can realize the rapid transition from the on state → the off state, and the off state → the on state.

The dimming film is divided into self-adhesive dimming film and laminated dimming film. The Selfadhesive Switchable Smart Film is equivalent to the cost dimming film, that is, the product is pasted and can be used, which can achieve the effect of power-on transparency and power-off atomization. , Switch at will, control at will. Laminated Smart Film is the main material for making Switchable Glass, that is, the laminated dimming film is sandwiched between two pieces of steel colored glass. Generally speaking, it is half the cost and cannot be directly pasted and used!

When the self-adhesive dimming film leaves the factory, there is a special self-adhesive on one side, which can be pasted on the original glass, and can be re-applied repeatedly. Both have a protective layer. When the Switchable Film is pasted, debug After powering on, it is best to tear off the protective layer. Self-Adhesive Smart Film, cut it according to the size of the customer's requirements on our factory, connect the Smart Film Power Supply Transformer, and the customer can paste it by himself according to the video and requirements

Pdlc Film Smart Glass Tint

Pdlc Switchable Smart Film Tint

Product Parameters

Item		Mode	Specification
Optical Parameter	Visible Light Transmittance	Power on	>83%
	Visible Light Transmittance	Power off	>53%
	Parallel Light Tansmittance	Power on	75%
	Parallel Light Tansmittance	Power off	<2%
	Haze	Power on	<4%
	Haze	Power off	>95%
	Viewangle	Power on	>150°
Electrical Parameter	Operating Voltage	Power on	AC48V-65V/ 50Hz
	Response Time	Power off-on	<200ms
	Power Dissipation	Power off-on	6-8 W/㎡
Size Parameter	Thickness	0.38mm
Size Parameter	Maximum Size	6000mm*2000mm
Operating Parameter	Operating Temperature	-30°C-50°C
Operating Parameter	Storage Temperature	-40°C-70°C
Service Times		Power on	>12 years
Switching Times			>2 millions

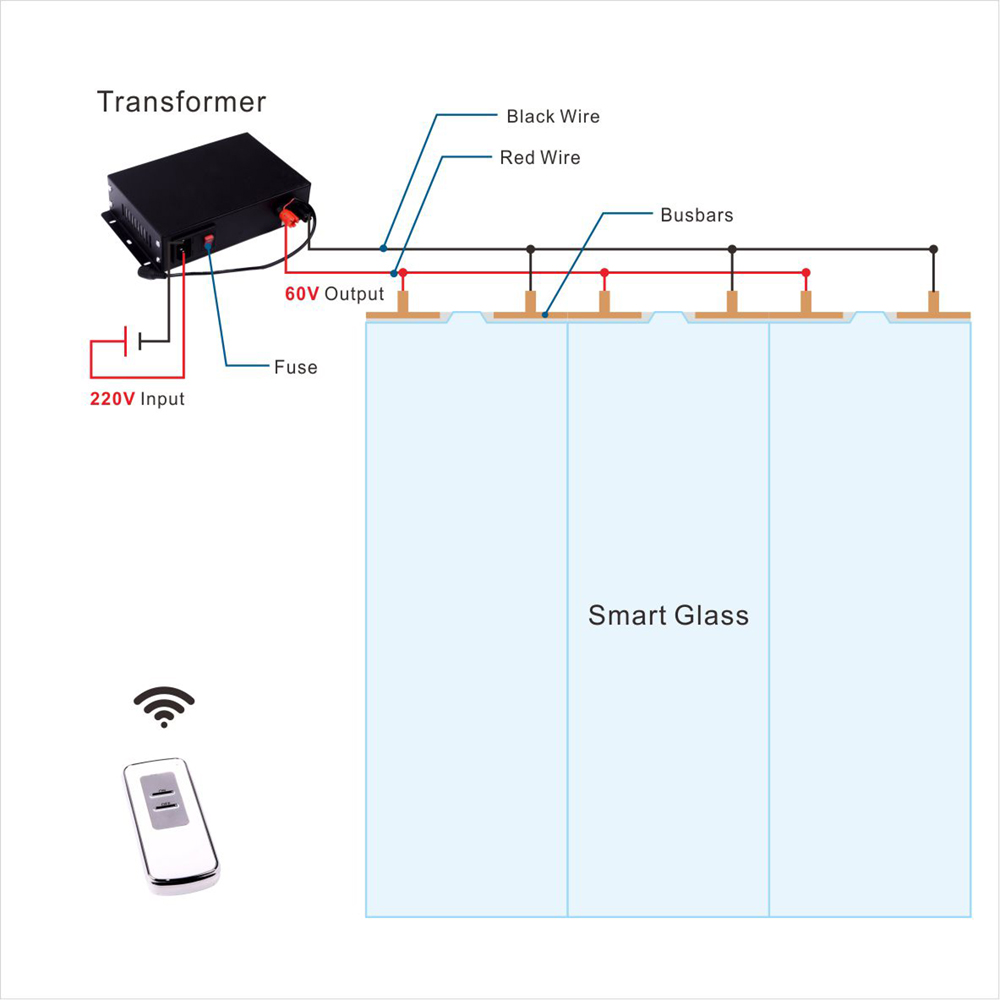

How to connect Smart Film or Switchable Smart Glass to PDLC Film Power Supply

Application

Dubai Smart Film Dubai Smart Glass Smart Glass Singapore

Smart Glass India Smart Glass Hong Kong

Factory

After sales & clients comments

FAQ

1.Does smart film privacy film blocks harmful UV rays?

Yes, it can block over 98% of the harmful UV rays.

2.Is smart film energy efficient?

Yes, it's a green product that only consumers 6-8 W/㎡.

3.Can customers install smart film by themselves?

Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.

4.How can I purchase or get a quote?

Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-13711583005

5.What is the difference between self-adhesive PDLC film and PDLC film?

Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure.

6.Do you offer smart glass?

Yes, we customized smart glass according to customers' requirements.

7.Can you project on smart glass?

Yes, smart glass can be used as a rear projection screen.
