Customized PDLC Adhesive Film Smart in roll
-
$60.001-99 Square Meter
-
$50.00100-499 Square Meter
-
$40.00≥500 Square Meter
- Transportation:
- Ocean, Land, Express, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 100000 Square Meters per Month |
| Supply Ability: | 1000000sqm per month |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,EXW,CIF |
| Certificate: | CE,SGS,IS9001,ROHS |
| HS Code: | 9013809000 |
| Transportation: | Ocean,Land,Express,Air |
| Port: | Shenzhen |
Product Parameters
Customized pdlc adhesive film smart in roll
Customized pdlc adhesive film smart in roll
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|
Product Description
High Quality PDLC Film, PDLC Glass
How it Works
Switchable Transparent Glass(STG) consists of float glass, EVA, and Yuguang Smart Transparent Film(STF) that form a kind of laminated glass. The scientific principles lie in the STF, when it is powered off, the liquid crystal molecules fall into a random state,that diffuse light passing through the sandwich structure and to provide instant privacy. When it is powered on, the voltage drive the liquid crystal molecules align along the direction perpendicular to the film, then visible light go through STF and turns transparent.
Switchable Transparent Film (STF)
STF is a sort of light modulating material comprised of polymer dispersed liquid crystal and flexible ITO film. When it is powered off, visible light scatters through the STF and the film turns opaque. When it is powered on, visible light transmits the STF and the film turns transparent. STF can be used in SA-STF or STG. Customized pdlc adhesive film smart in roll.
Self-Adhensive Switchable Transparent Film (SA-STF)
SA-STF is an intelligent film which provides a simple and cost effective alternative to switchable film technology. It is manufactured with a self-adhesive cling layer on one side (peel and stick) which can directly stick to the existing glass and switch from transparent to opaque instantaneously under voltage.
Switchable Transparent Glass (STG)
STG consists of toughened glass, EVA, and STF that form a kind of laminated glass. Customized pdlc adhesive film smart in roll.
Switchable Transparent Glass(STG) consists of float glass, EVA, and Yuguang Smart Transparent Film(STF) that form a kind of laminated glass. The scientific principles lie in the STF, when it is powered off, the liquid crystal molecules fall into a random state,that diffuse light passing through the sandwich structure and to provide instant privacy. When it is powered on, the voltage drive the liquid crystal molecules align along the direction perpendicular to the film, then visible light go through STF and turns transparent.
Switchable Transparent Film (STF)
STF is a sort of light modulating material comprised of polymer dispersed liquid crystal and flexible ITO film. When it is powered off, visible light scatters through the STF and the film turns opaque. When it is powered on, visible light transmits the STF and the film turns transparent. STF can be used in SA-STF or STG. Customized pdlc adhesive film smart in roll.
STG consists of toughened glass, EVA, and STF that form a kind of laminated glass. Customized pdlc adhesive film smart in roll.
Smart transparent film technical diagram

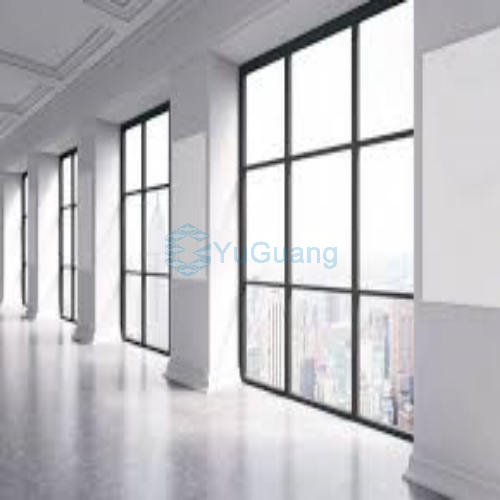

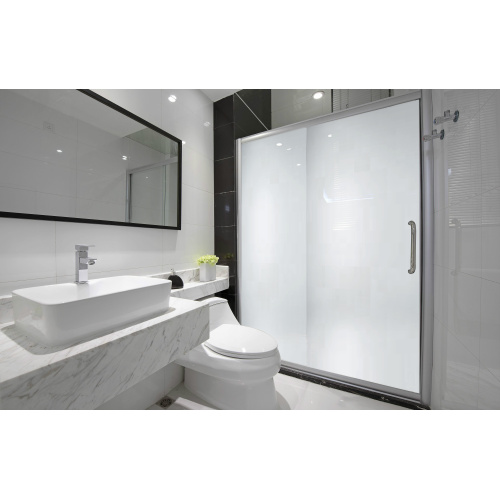

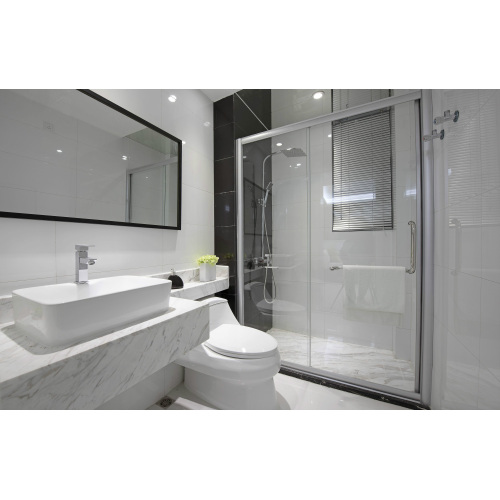

Application
Customized pdlc adhesive film smart in roll

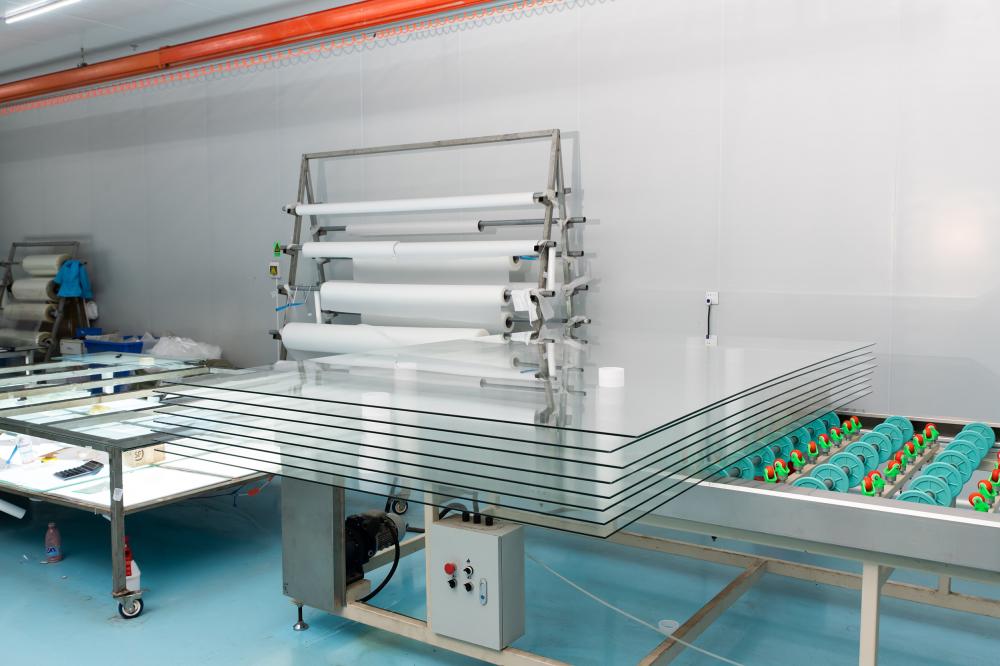

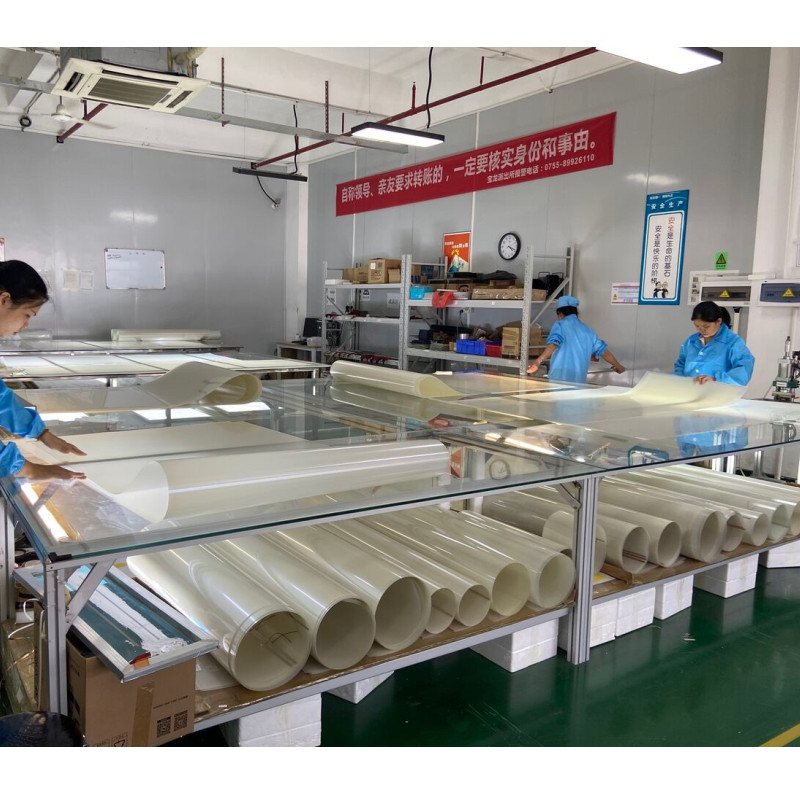

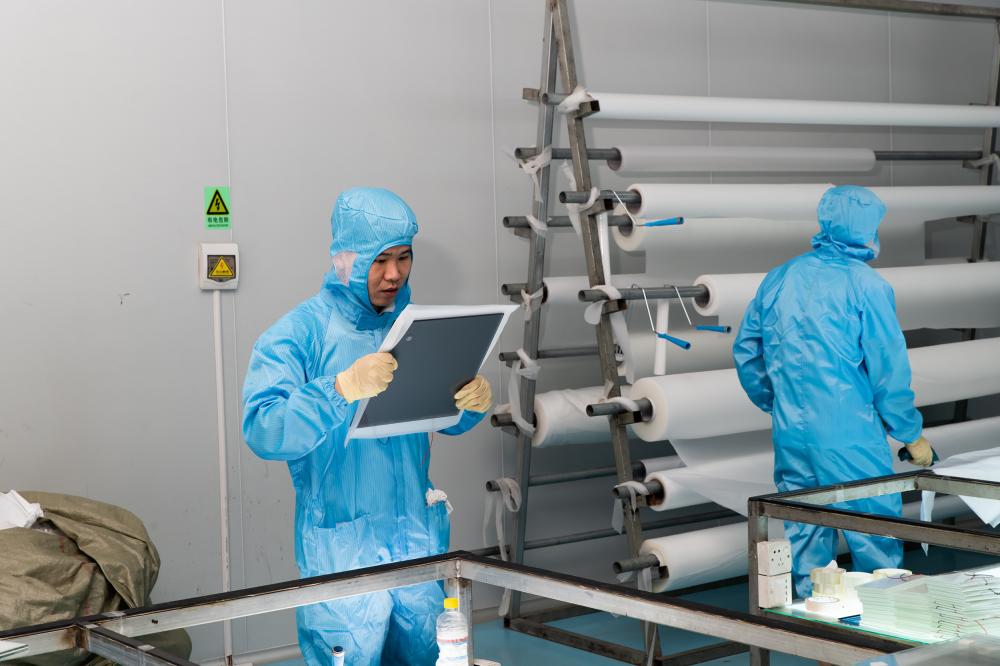

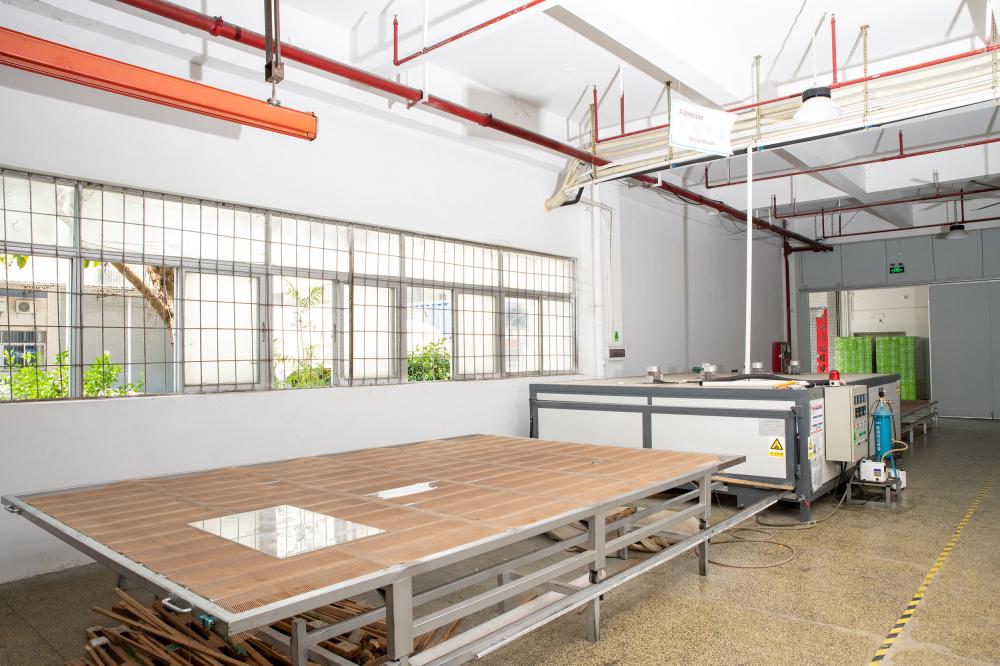

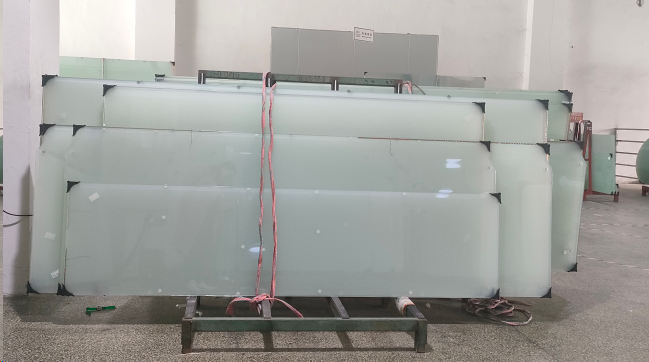

Factory
After sales & clients comments
FAQ
1.Does smart film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is Intelligent Film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡. Customized pdlc adhesive film smart in roll.
3.Can customers install Smart Film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-18927438513
.Customized pdlc adhesive film smart in roll.
5.What is the difference between Self-Adhesive PDLC Film and Lamination Smart Film?
Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure. Customized pdlc adhesive film smart in roll.
6.Do you offer Smart Glass?
Yes, we customized Intelligent Film lass according to customers' requirements.
7.Can you project on Toughened Switchable Glass?
Yes, smart glass can be used as a rear projection screen.
Customized pdlc adhesive film smart in roll.
