Different Colors and Different Sizes Smart PDLC Film
-
$60.001-99 Square Meter
-
$50.00100-499 Square Meter
-
$40.00≥500 Square Meter
- Transportation:
- Ocean, Land, Express, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 100000 Square Meters per Month |
| Supply Ability: | 1000000sqm per month |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,EXW,CIF |
| Certificate: | CE,SGS,IS9001,ROHS |
| HS Code: | 9013809000 |
| Transportation: | Ocean,Land,Express,Air |
| Port: | Shenzhen |
Product Parameters
Switchable Electric Glass Decorative Film
|
Item |
Mode | Specification | |
|
Optical Parameter Pdlc Switchable Glass Film
|
Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|
Product Description
High Technology Smart Window Film
High Quality PDLC Film, PDLC Glass
How it Works
Switchable Transparent Glass(STG) consists of float glass, EVA, and Yuguang Smart Transparent Film(STF) that form a kind of laminated glass. The scientific principles lie in the STF, Different Colors and Different Sizes Smart PDLC Film when it is powered off, the liquid crystal molecules fall into a random state,that diffuse light passing through the sandwich structure and to provide instant privacy. When it is powered on, the voltage drive the liquid crystal molecules align along the direction perpendicular to the film, then visible light go through STF and turns transparent.
Switchable Transparent Film (STF)
STF is a sort of light modulating material comprised of polymer dispersed liquid crystal and flexible ITO film.Different Colors and Different Sizes Smart PDLC Film When it is powered off, visible light scatters through the STF and the film turns opaque. When it is powered on, visible light transmits the STF and the film turns transparent. STF can be used in SA-STF or STG. Different Colors and Different Sizes Smart PDLC Film
Self-Adhensive Switchable Transparent Film (SA-STF)
SA-STF is an intelligent film which provides a simple and cost effective alternative to switchable film technology. Different Colors and Different Sizes Smart PDLC Film It is manufactured with a self-adhesive cling layer on one side (peel and stick) which can directly stick to the existing glass and switch from transparent to opaque instantaneously under voltage Switchable Electric Glass Decorative Film
Switchable Transparent Glass (STG)
STG consists of toughened glass, EVA, and STF that form a kind of laminated glass.
Switchable Transparent Glass(STG) consists of float glass, EVA, and Yuguang Smart Transparent Film(STF) that form a kind of laminated glass. The scientific principles lie in the STF, Different Colors and Different Sizes Smart PDLC Film when it is powered off, the liquid crystal molecules fall into a random state,that diffuse light passing through the sandwich structure and to provide instant privacy. When it is powered on, the voltage drive the liquid crystal molecules align along the direction perpendicular to the film, then visible light go through STF and turns transparent.
Switchable Transparent Film (STF)
STF is a sort of light modulating material comprised of polymer dispersed liquid crystal and flexible ITO film.Different Colors and Different Sizes Smart PDLC Film When it is powered off, visible light scatters through the STF and the film turns opaque. When it is powered on, visible light transmits the STF and the film turns transparent. STF can be used in SA-STF or STG. Different Colors and Different Sizes Smart PDLC Film
STG consists of toughened glass, EVA, and STF that form a kind of laminated glass.
Smart transparent film technical diagram

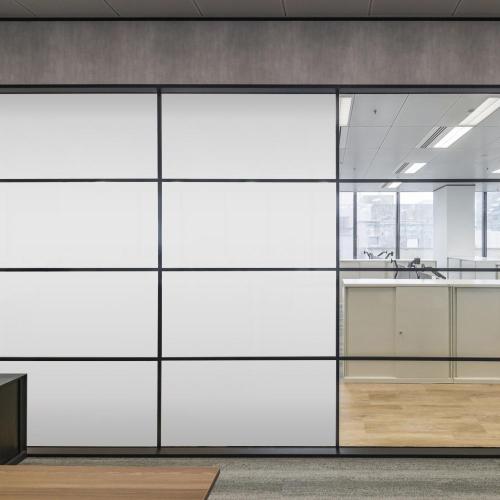

Application
Different Colors and Different Sizes Smart PDLC Film
Factory
After sales & clients comments
FAQ
1.Does smart film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is smart film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡.
3.Can customers install smart film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-18927438513
.High Transparency Self Adhesive Smart Film
5.What is the difference between self-adhesive PDLC film and PDLC film?
Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can
be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure.Different Colors and Different Sizes Smart PDLC Film
6.Do you offer smart glass?
Yes, we customized smart glass according to customers' requirements.
7.Can you project on smart glass?
Yes, smart glass can be used as a rear projection screen Self Adhesive Smart Film
