PDLC Fuent de Alimentacion Smart Film Bluetooth
-
$55.001-49 Square Meter
-
$48.0050-99 Square Meter
-
$45.00≥100 Square Meter
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
Your message must be between 20 to 2000 characters
Contact NowProduct Description

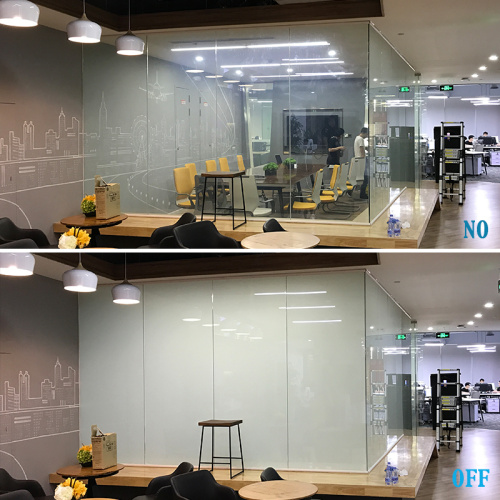

The film is composed of PET film,ITO film,polymer and liquid crystal molecules. When the film is under off state, the randomly
aligned liquid crystal molecules stay along on the walls of capsule, the reflection of liquid crystal molecules and polymer makes
light disperses then it is opaque. Non Adheive Smart Film While electricity supplied, these molecules arrange themselves Self
adhesive Switchable Smart Film in a specific direction then parallel light can pass through the film makes it transparent PDLC
Switchable Glass Film.
Transformador Pdlc Smart Film
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|
Dimming Smart Glass Pdlc Film
Application
Factory
After sales & clients comments
FAQ
1.Does smart film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is smart film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡.
3.Can customers install smart film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer
preview Pdlc Electric Smart Film
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-18927438513.
5.What is the difference between self-adhesive PDLC film and PDLC film?
Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which
can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to
form a sandwich structure High Transparency Self Adhesive Smart Film.
6.Do you offer smart glass?
Yes, we customized smart glass according to customers' requirements.
7.Can you project on smart glass?
Yes, smart glass can be used as a rear projection screen Transformador Pdlc Smart Film.
