Electronic PDLC Smart Film Switchable
-
$46.001-49 Square Meter
-
$43.0050-99 Square Meter
-
$40.00≥100 Square Meter
- Transportation:
- Express, Air, Ocean, Land
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 999999 Square Meters per Month |
| Supply Ability: | 999999 Square Meters per Month |
| Payment Type: | T/T,Paypal,Money Gram,Western Union,Others |
| Incoterm: | EXW,Express Delivery,FOB,CIF,DDU,DDP |
| Certificate: | CE,SGS,IS9001,ROHS |
| HS Code: | 9013809000 |
| Transportation: | Express,Air,Ocean,Land |
| Port: | Shenzhen |
Product Technology
PDLC (Polymer Dispersed Liquid Crystal) is a medium whose light scattering power is adjustable through applying an electric field. In their natural (uncharged) state, the PDLC droplets randomly align.

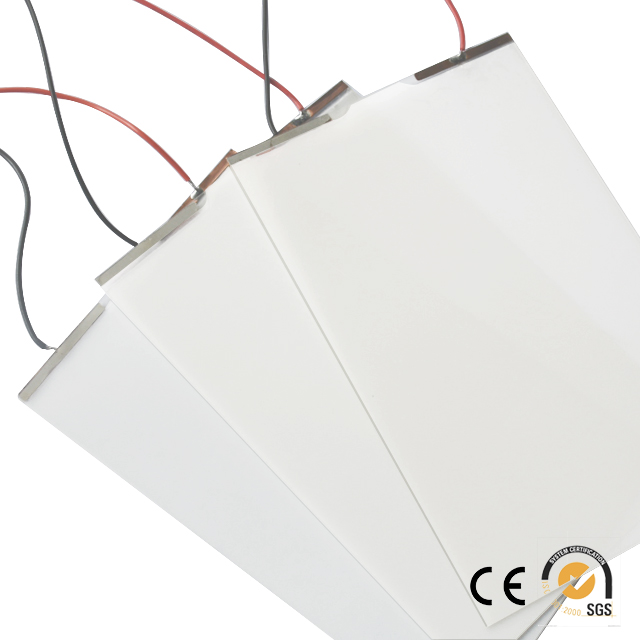

PDLC Film consists of a polymer matrix of liquid crystals enclosed by electrically conductive Indium Tin Oxide-coated PET film. The resulting PDLC Film
has wiring attached to a conductive copper strip (busbar) along the film’s edge. In a low voltage platform, this wiring is connected to a step-down transformer through which power is supplied for the “on” (clear) state. In their natural (uncharged) state, the PDLC droplets randomly align, thus
creating the an opaque translucent condition.

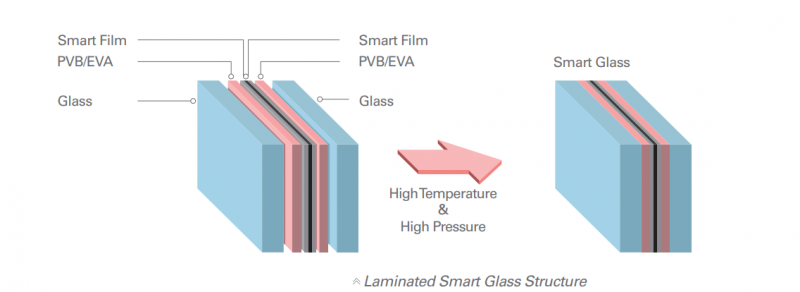

Two sheets of glass are laminated over the PDLC film. The components are assembled under high pressure and temperature to form a single unit.
The ordinary refractive index of these liquid crystals does not match that of the polymer, and the incident light is thus scattered, resulting in a translucent state. When an electric field is applied across the material, the PDLC droplets re-orient, and subsequently the extraordinary refractive index of the liquid crystal matches that of the polymer. Therefore, the incident light can pass through, resulting in a transparent state.
Pdlc Switchable Electrochromic Glass
WhatsApp: +86 13533612990 Jessica
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|

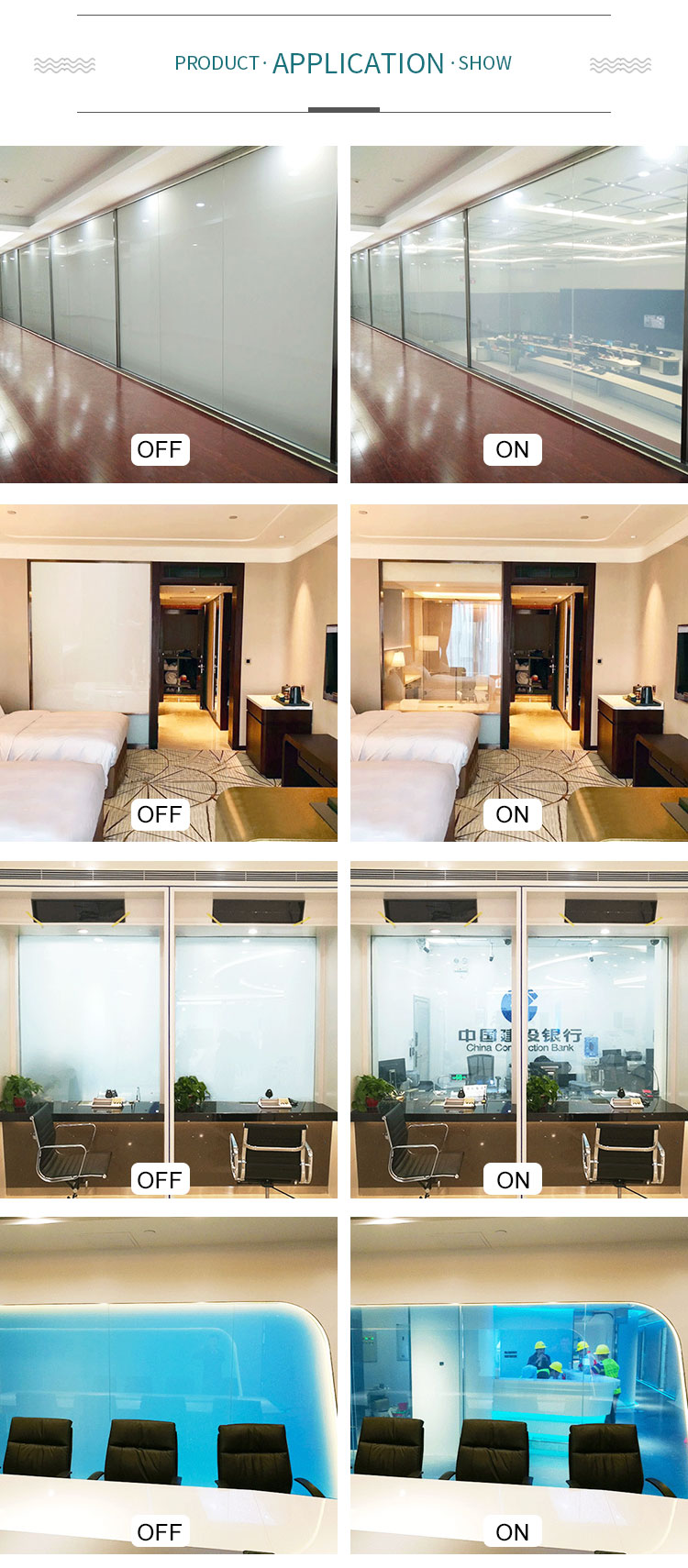

Application

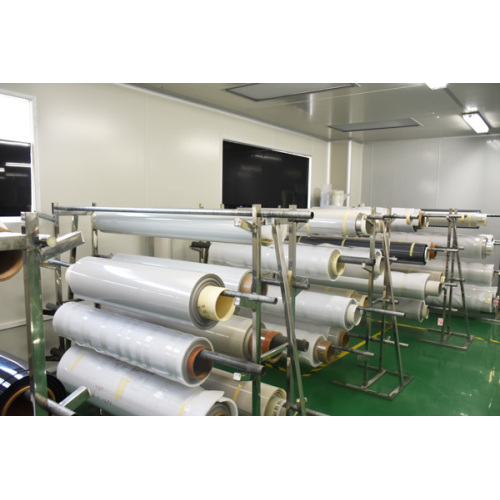

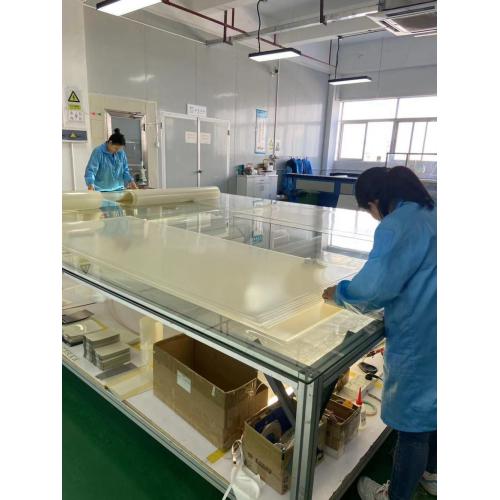

Factory
2022 top PDLC Dimming smart Film for Building

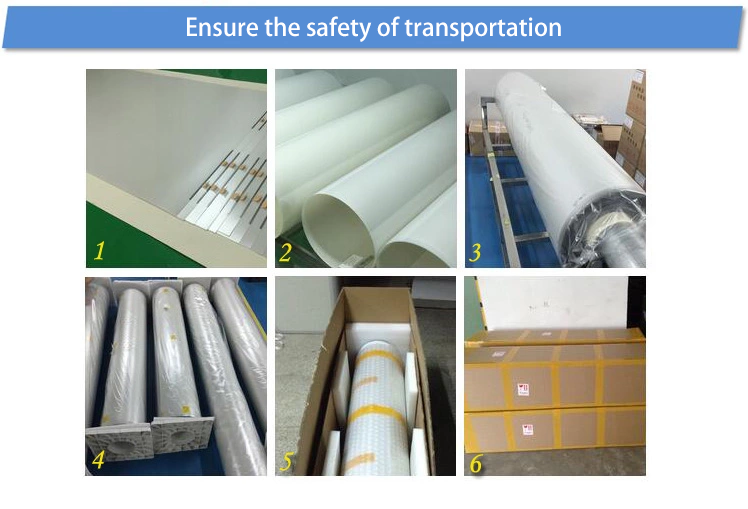

Packing and delivery
FAQ
1.Does smart film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is smart film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡.
3.Can customers install smart film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-18927438513.
5.What is the difference between self-adhesive PDLC film and PDLC film?
Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure Smart Film In Building Glass.
6.Do you offer smart glass?
Yes, we customized smart glass according to customers' requirements.
7.Can you project on smart glass?
Yes, smart glass can be used as a rear projection screen Transformador Pdlc Smart Film.
