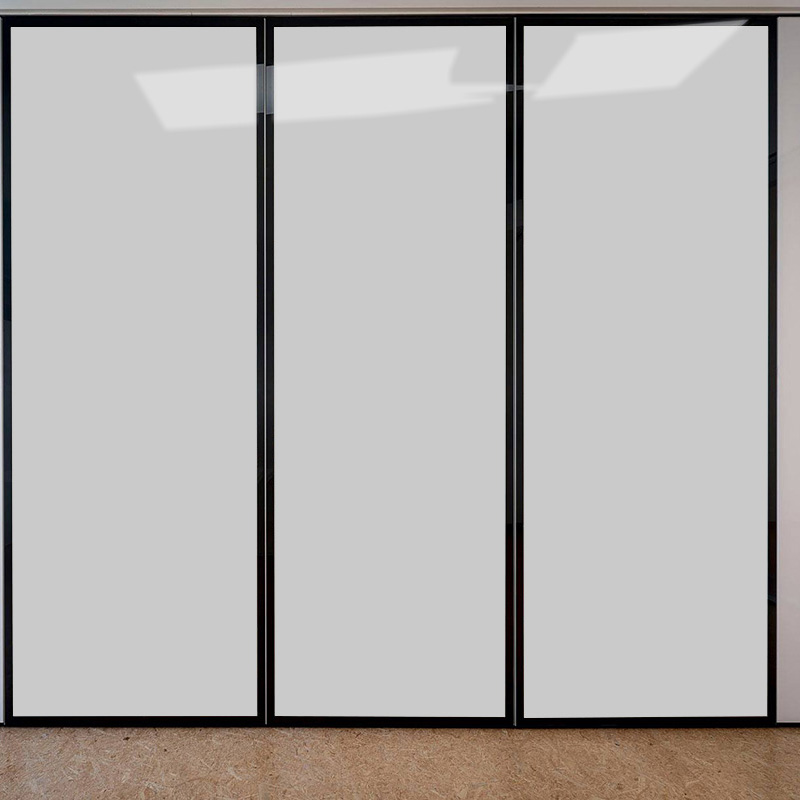

Toughened Safety Switchable Glass Tempered Intelligent Glass
  • Toughened Safety Switchable Glass Tempered Intelligent Glass
  • Toughened Safety Switchable Glass Tempered Intelligent Glass
  • Toughened Safety Switchable Glass Tempered Intelligent Glass
  • Toughened Safety Switchable Glass Tempered Intelligent Glass
  • Toughened Safety Switchable Glass Tempered Intelligent Glass
Toughened Safety Switchable Glass Tempered Intelligent Glass
Toughened Safety Switchable Glass Tempered Intelligent Glass
Toughened Safety Switchable Glass Tempered Intelligent Glass
Toughened Safety Switchable Glass Tempered Intelligent Glass
Toughened Safety Switchable Glass Tempered Intelligent Glass

Toughened Safety Switchable Glass Tempered Intelligent Glass

  • $105.00
    1-49 Square Meter
  • $103.00
    50-99 Square Meter
  • $98.00
    ≥100 Square Meter
Min. Order:
1 Square Meter
Min. Order:
1 Square Meter
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Product Description

Tempered Clear Switchable Smart Glass Intelligent Dimming Glass can be based on different occasions, such as mood, functional requirements can change the mood of the glass in a flash, Laminated Glass Switchable Pdlc the function such as demand can change glass appear a performance in - instantly, truly achieve the "the effect of light with me to move, it also is the magical thing about this state of the user can conveniently control switch, switch or remote control, slightly press can shape the privacy,Decorative Curved Glass Smart effectively protect the individual privacy space Pdlc Double Glazing Intelligent Glass.SMART GLASS is a layer of Lamination Smart Film sandwiched between two glasses and EVA Film or PVB Film .Switchable Smart Glass has advantage against privacy protection, along with the features of safety glass. Color can also be done in accordance with the customer, the film can be made with a self-adhesive membrane function according to customer requirements. Switchable Glass will be transparent when there is current on Privacy Smart Film or opaque when power off. Light and darkness can be changed by controlling the voltage, easy to switch, convenient and simple.


Yuguang PDLC smart film

Smart Film Glass

Yuguang smart film

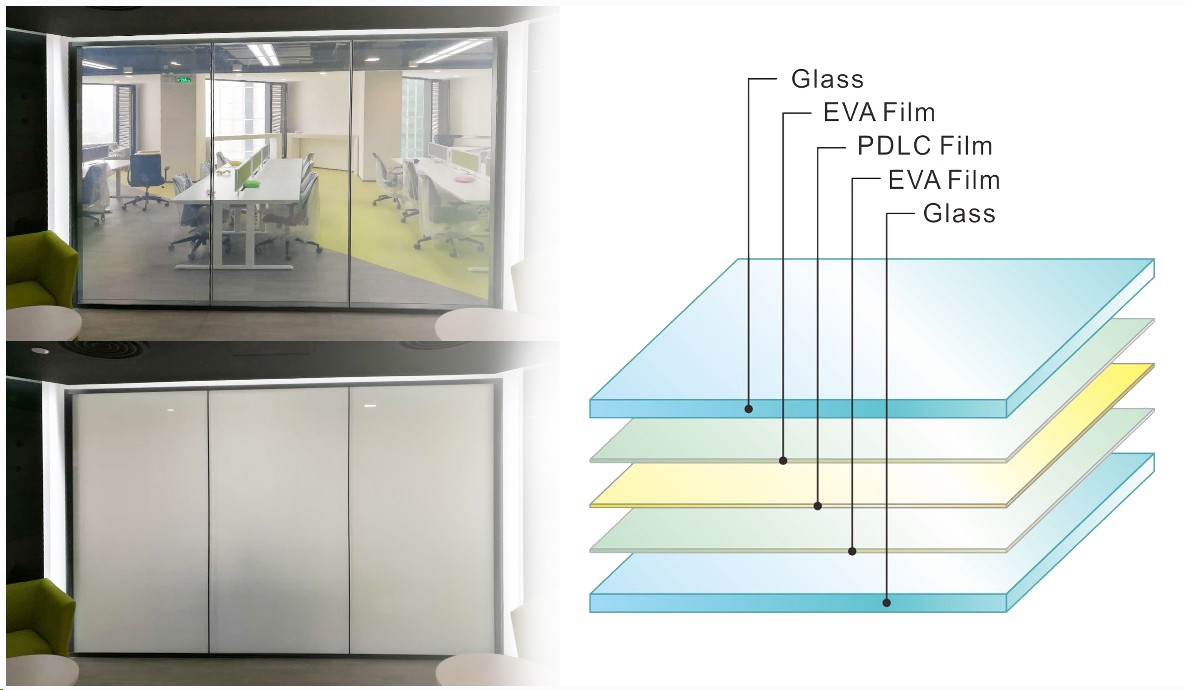

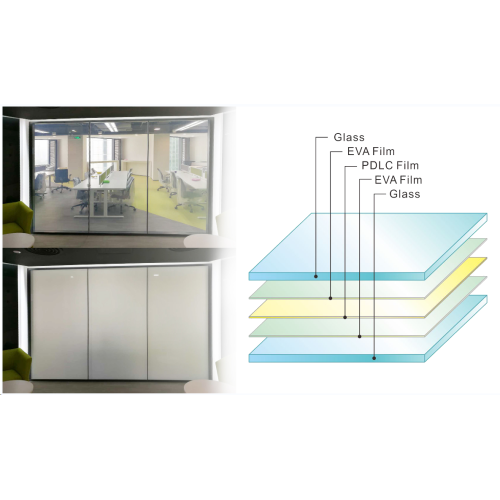

Smart transparent film technical diagram

Technical Principle

Double Glazing Intelligent Glass In the natural state, the liquid crystal molecules inside it are arranged randomly, the refractive index of liquid crystal is lower than that of the polymer outside, and the incident light scatters in the polymer and is milky white, that is, opaque.After electrification, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal changes from disorder to directional order, so that the refractive index of the liquid crystal is the same as that of the polymer, and the incident light can completely pass through, Pdlc Smart Laminated Double Glazing Glass forming a transparent state. Intelligent dimming glass can be based on different occasions, such as mood, functional requirements can change the mood of the glass in a flash, the function such as demand can change glass appear a performance in - instantly, truly achieve the "the effect of light with me to move, it also is the magical thing about this state of the user can conveniently control switch, switch or remote control, Smart Glass Privacy Film Tempered Glass slightly press can shape the privacy, effectively protect the individual privacy space Self Adhesive Switchable Film Glass.


Product Parameters


Item
Mode Specification
Optical Parameter Visible Light Transmittance Power on
>83%
Power off
>53%
Parallel Light Tansmittance
Power on
75%
Power off
<2%
Haze
Power on
<4%
Power off
>95%
Viewangle
Power on
>150°
Electrical Parameter
Operating Voltage
Power on
AC48V-65V/ 50Hz
Response Time
Power off-on
<200ms
Power Dissipation
Power off-on
6-8 W/㎡
Size Parameter
Thickness
0.38mm
Maximum Size
6000mm*2000mm
Operating Parameter
Operating Temperature
-30°C-50°C
Storage Temperature
-40°C-70°C
Service Times
Power on
>12 years
Switching Times

>2 millions

Switchable Film Glass

Main advantages:
1.Privacy protection. As most important function, smart glass can be changed from transparent to opaque via easy model ON & OFF.
2. Perfect function of safety. As smart glass is a special kind of laminated glass, it has all the good function of the laminated glass, mainly the security.
3. Blocks about 99% UV rays ,avoiding fading in the room.
4. Sound proof. With excellent damping action, the smart glass is easy to block the noise.
5.Projection. When it is under suitable light, the perfect projection appears.
6.No trouble of curtain setting and cleaning.
7.With a modern looking, very good for interior design.

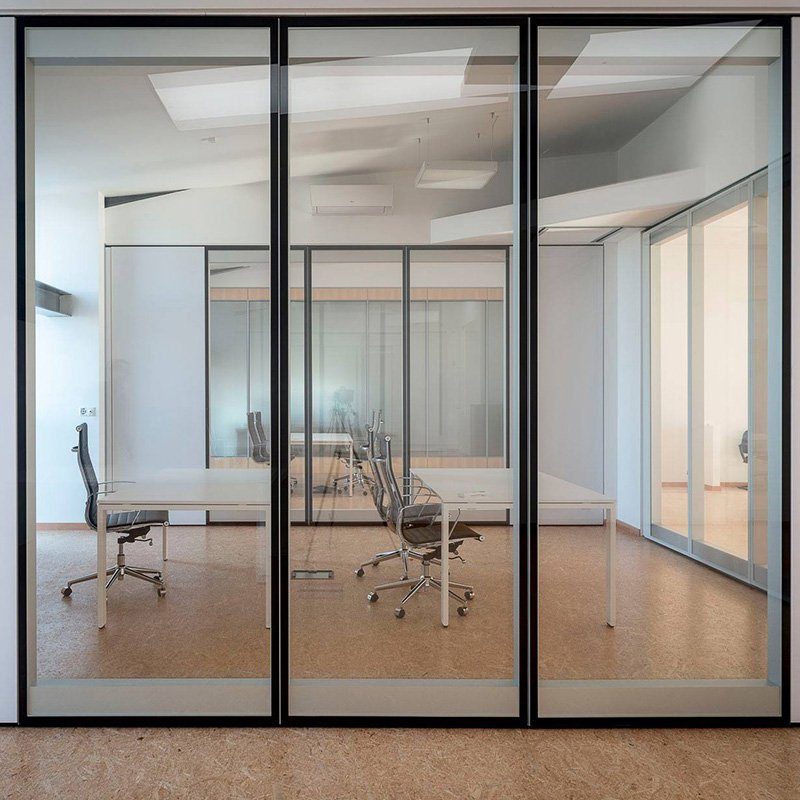

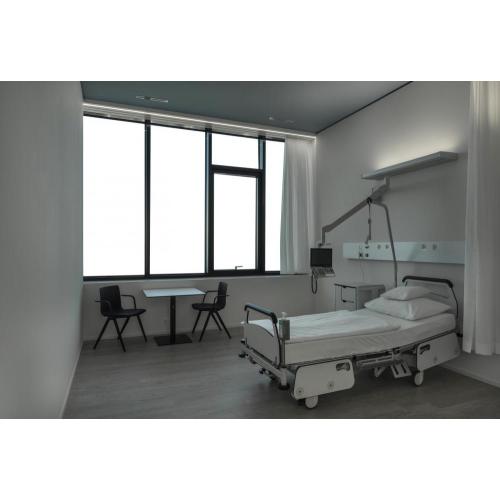

Application

Intelligent PDLC smart film

Yuguang PDLC smart filmSmart FilmSwitchable Film

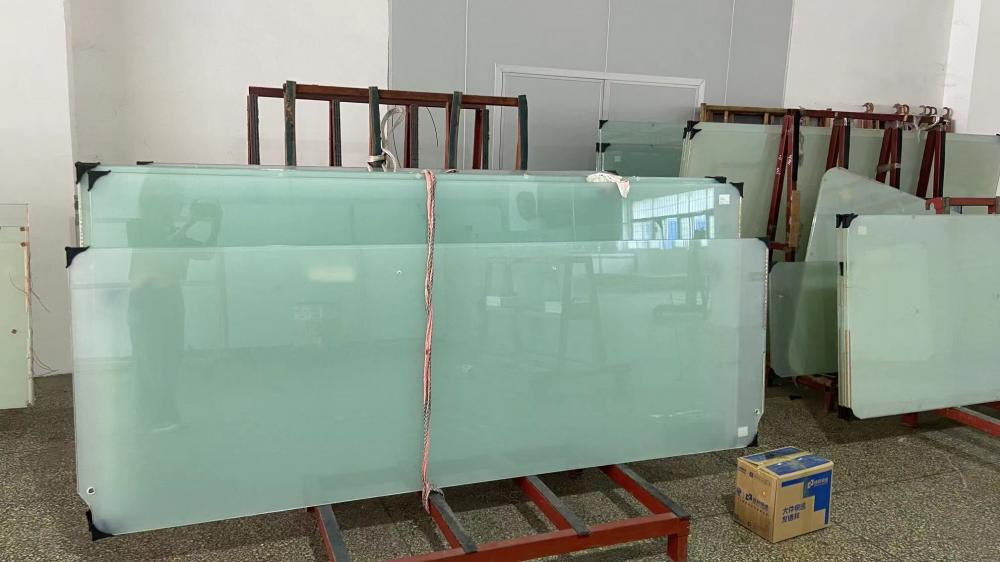

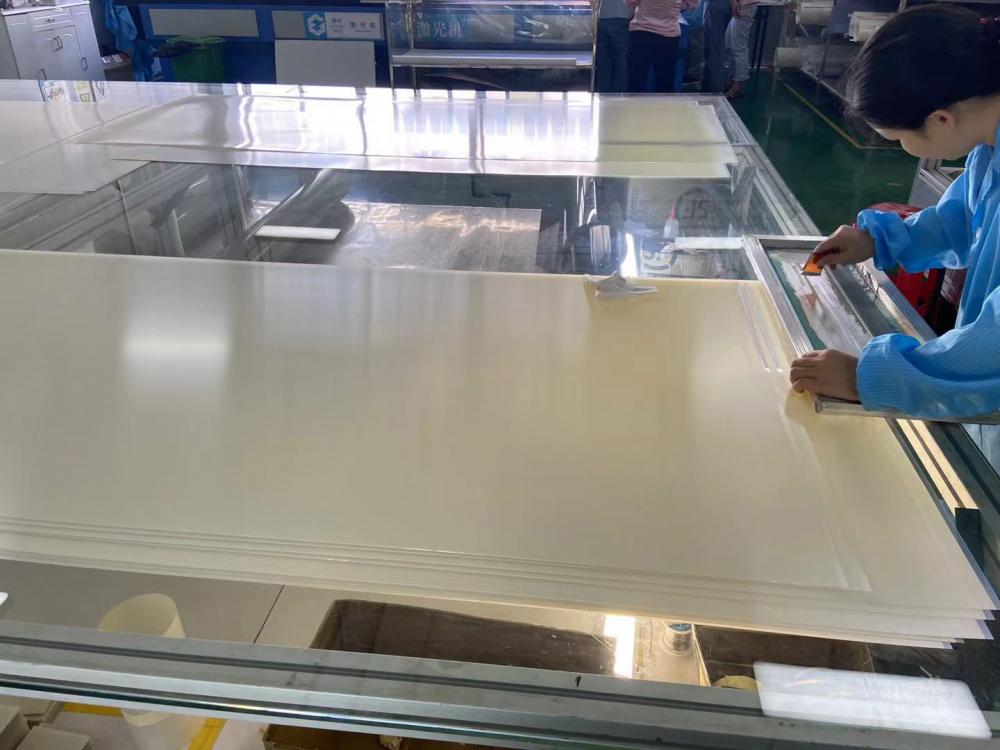

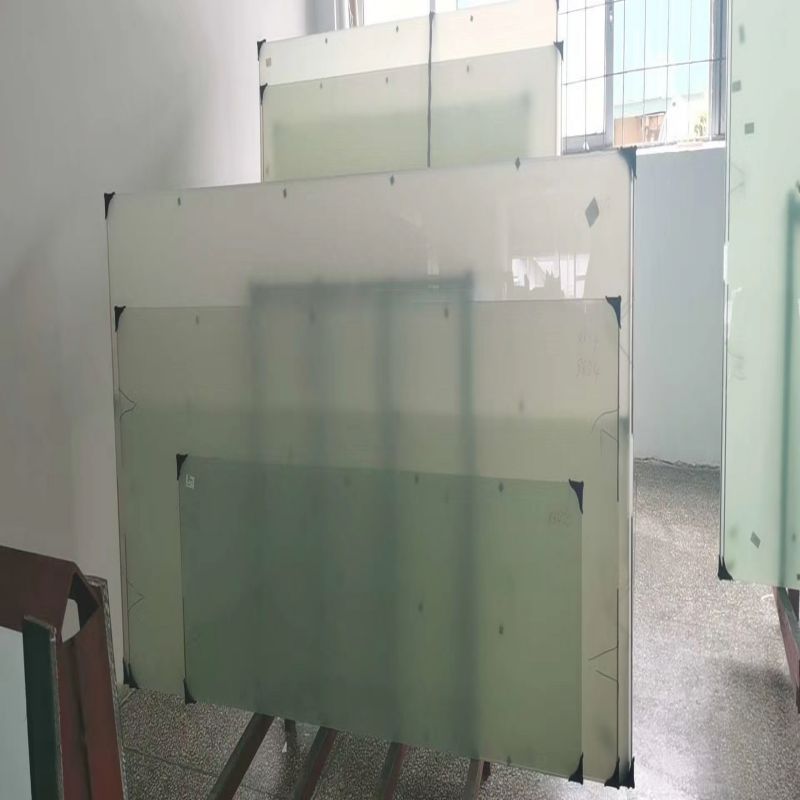

Factory

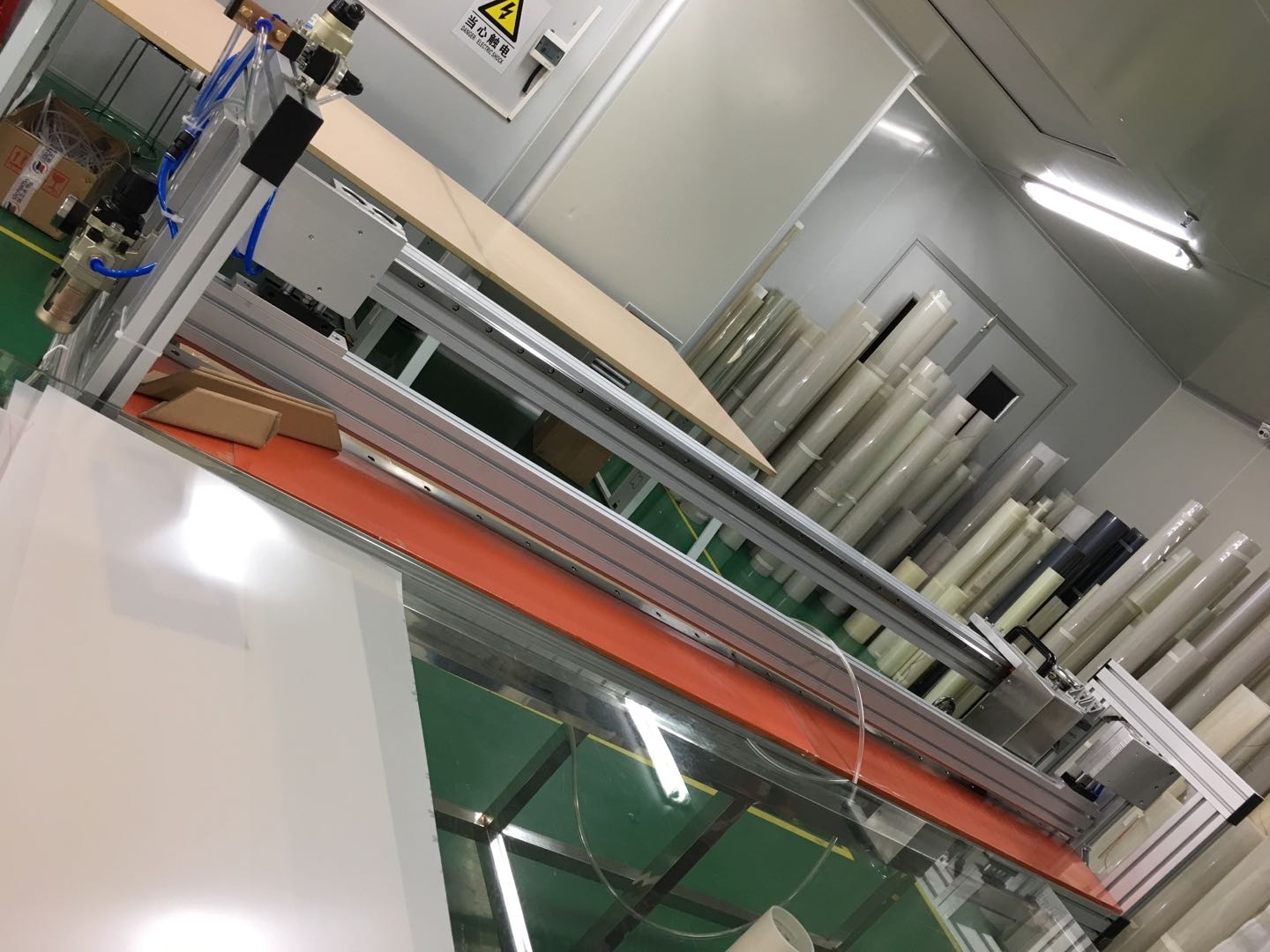

3 6m Smart Film Cutting MachineSwitchable FilmSelf Adhesive Smart FilmSmart GlassIntelligent Glass


222




After sales & clients comments

Yuguang PDLC smart film


FAQ

1.Does Smart Film privacy film blocks harmful UV rays?

Yes, it can block over 98% of the harmful UV rays.


2.Is Smart Film energy efficient?

Yes, it's a green product that only consumers 6-8 W/㎡.


3.Can customers install Self Adhesive Smart Film by themselves? Electric film tint focals Intelligent Glass 12+12mm

Yes, we offer a complete installaion kit if needed, meanwhile,we supply instruction video for customer preview.


4.How can I purchase or get a quote?

Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-13711583005.


5.What is the difference between self-adhesive PDLC film and  PDLC film?

Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which

can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to

form a sandwich structure.


6.Do you offer Switchable Glass?

Yes, we customized PDLC Glass according to customers' requirements.


7.Can you project on Smart Glass?

Yes, Intelligent Glass can be used as a rear projection screen.
