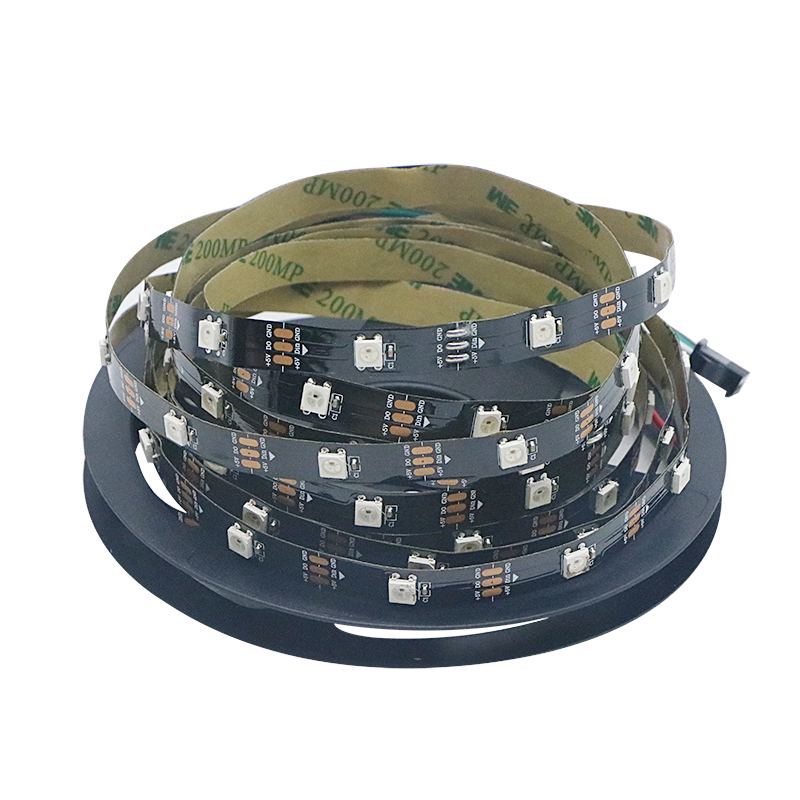

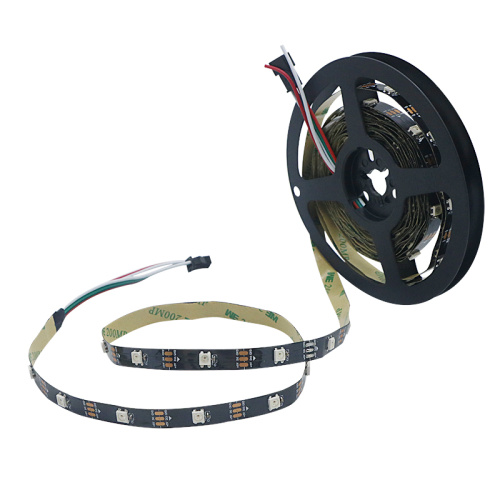

5V 5050SMD 30LED/M WS2812B LED PIXEL Strip Light

5V 5050SMD 30LED/M WS2812B LED PIXEL Strip Light

$2.05 - $2.75/Meter

Min. Order:: 200 Meter

Min. Order:: 200 Meter

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

What is the difference between Pixel LED Strip Lights and Horse Race LED Strip Lights

1. Pixel LED Strip Lights and Horse Race LED Strip Light are different, and the controllers of Horserace LED Strip Light are different. The line structure of the Horserace LED Strip Light is 9 lines and 10 lines. The light effect is realized by changing different lighting lines. running effect.
2. The biggest difference between Pixel SMD LED Strip Lights and Horserace led strip light is whether it has an IC chip. Pixel SMD LED Strip Light is a large family, mainly divided into built-in IC and external IC, and according to the type of signal, it is divided into DMX Signal and spi signal, there are more specific types, there are probably hundreds of them: LPD6803, LPD8806, LPD68

Parameter Details

Details	Features
Lighting Mode	5V DC SMD5050 30LED/m WS2812 pixel LED Flexible Strip Lights
LED Chip Method	SMD5050
LED Quantity	30LED/M, 30IC/m
Packing	5m/roll, antistatic bag packing
Waterproof Rate	IP20/65/67 available
PCB Color	White or black PCB and 10mm PCB width
LED Color/CRI	WS2812 digital color, CRI>80
Power	9W/m
Lumens	35lm/led
Lighting Time	>50000 HOURS
Type of Tapg on the back	Adhesive Tape on the back
Operating Temperature	-20~60℃
Dimesion	500MM10MM2.5MM
Net Weight	100/250G/roll

Features:

Input Voltage:DC 5V
Power:
30leds/m----9watt/meter.
60leds/m----18watt/meter.
74leds/m----22watt/meter.
96leds/m----28.8watt/meter.
100leds/m----30watt/meter.
144leds/m----43.2watt/meter.
LED Resource: WS2812B led (5050 SMD RGB LED with built-in improved version of ws2811 ic).
LED: Each LED is separately controlled.
IC Type: Improved version ws2812 IC(built inside the 5050 smd rgb led).
Of IC: (1 IC drives 1 led chip).
Pixels: 30/60/74/96/100/144/meter.
Grey Scale: 256.
Bits/color: 8-bits/color.
FPCB Width:
30leds/m----10mm.
60leds/m----10mm.
74leds/m----12mm.
96leds/m----12mm.
100leds/m----10mm.
144leds/m----12mm.
FPC Color: Black/White.
Protection rate:
IP30 Non-Waterproof.
IP65 Waterproof in Silicon Coating.
IP67 Waterproof in Silicone Tube.
Lighting Colors: Full color RGB, dream color changing.
Cuttable: Every LED is cuttable.
Package: In anti-static bag, IP30 IP65 with adhensive tape on the back.
(IP67 without adhensive).Each strip with one free male connector for connector.

How to Install the led strip Light?

1,clean the surface on the installation,

2,cut or connect to the lenght you need,

3,Tear off the M tape for easy installation,

4,connec adapter to led strip

Notice: 12V 24V LED strip is low voltage led strip, must connect 12v or 24V power supply, should not connect 220V or 110V voltage, otherwise will be heating!

How to Choose LED Power Supply and Pixels Controller?

First, Calculated The Whole Led Strip Lights Watts.

One Led Chip is About 0.3W, If You Buy 5m 60Leds/m ( Total LED Strip is 300 Leds ), So 0.3W*300=90W.

Then, Choose the Right Led Power Supply.

This Led Strip is Work with DC5V Power, So 90W / 5V=18A ( At Least 18A or more ).

Finally, Choose the Right Pixels Controller You Like.

WS2812B Led Strip is Controlled By Single Data Line Controller.

So you could choose them from our store, we have IR/RF Remote, Bluetooth, Wifi, Music APP and Computer controller etc. ( If you can't recognize them, you could feel free to contact us, we will glad to help you )
