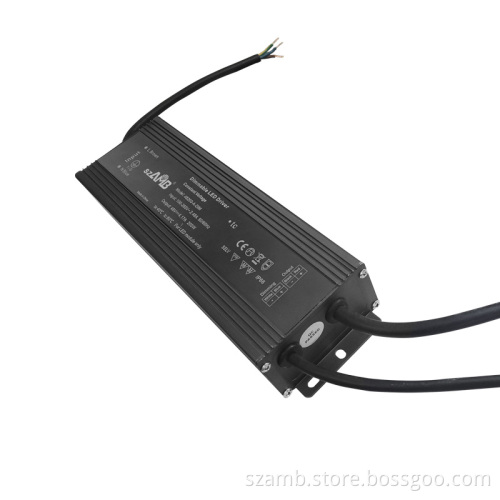

300W Waterproof LED dimmable driver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Feature:
·Output constant voltage
·Universal AC input:100-265VAC
·Built-in active PFC function
·High efficiency up to 90%
·Protections: Short circuit/Over current/Over loading
·Cooling by free air convection
·IP66 design for indoor or outdoor installation
·Class 1 power unit
·Three in one dimming function(0/1-10Vdc or PWM signal or resistance)
·Dimming range: 0-100%
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting

·Five years warranty

Specification

Model		12300-A-DIM	24300-A-DIM	36300-A-DIM	48300-A-DIM
Output	DC Voltage	12V	24V	36V	48V
	Voltage Tolerance	±0.5V
	Rated Current	0-25A	0-12.5A	0-8.3A	0-6.25A
	Rated power	320W
Input	Voltage Range	100-265VAC
	Frequency Range	47-63Hz
	Power Factor	PF≥0.98/120VAC PF≥0.98/230VAC PF≥0.95/265VAC（Full loading）
	Efficiency（Typ.）	88%	89%	90%	90%
	AC Current（Max.）	1.81A	1.98A	1.96A	1.96A
	Leakage current	<0.7mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Loading	≤120%
	Over Current	≤1.2*Iout
	Over Temperature	100℃±10℃, Shut down o/p voltage, recovers automatically after temp. goes down.
Environment	Working TEMP.	-40～+60℃
	Working Humidity	20～95%RH non-condensing
	Storage TEMP., Humidity	-40～+80℃，10～95%RH
	TEMP. coefficient	±0.03%/℃（0～50℃）
	Vibration	10～500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes
Safety&EMC	Safety standards	EN61347-1 EN61347-2-13
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P I/P-FG O/P-FG：100M Ohms/500VDC/25℃/70%RH
	EMC EMISSION	EN55015,EN61000-3-2 (≥60%load)
	EMC IMMUNITY	EN61000-4-2,3,4,5,6,11,EN61547, light industry Level(surge 4KV) Criteria A
Others	Net. Weight	1.6KG
	Size	2767847mm（LWH）
	Packing	440295145mm/8pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again .

300W 0-10V dimmable driver Mechanical Specification

Lable

※Input Rubber cable H03VV-F 3G 1.0mm 2 ，the green/yellow cable connect with (FG)，Brown with AC (L),
Blue with AC(N)
※Signal Rubber H03VV-F 2G*0.75 mm 2 ，Blue is（DIM+）,White is（DIM-）
※Output rubber cable H03VV-F 2G*1.0 mm 2 ，Red is output（V+）,Black is output（V-）.
Note: Any other requests we can customized.
