1.54 Inch MIPI TFT LCD Resolution 240X240 Touch Screen
- Min. Order:
- 1
- Min. Order:
- 1
Your message must be between 20 to 2000 characters
Contact Now| Size: 1.54TFT | Dimension: 31.52（W）* 33.72（H） *1.90(T) |
| Active Area: 27.72* 27.72 | Number Of Dots: 240 * RGB * 240 |
| LCD Type: A-Si TFT | Viewing Direction: ALL |
| Driver IC: ST7789V | Interface Type: MIPI |
| Operating Temperature: -20℃~ 70℃ | Storage Temperature: -30℃~ 80℃ |
| Backlight Type: 3 LEDs | Luminance: Customizable |
| Interface Pins: 24PIN SPI/MCU | With /without TsP: Without TP/with CTP |
| Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board |
ESEN T-154HX2501 1.54-Inch TFT LCD Display/Screen: High-Speed Clarity for Next-Gen Embedded Systems
Crafted in Shenzhen, China, and rigorously certified under ISO9001/ISO14001 standards, the ESEN T-154HX2501 1.54-Inch TFT LCD Display redefines compact visual excellence for advanced embedded applications. Combining a sleek 31.52mm x 33.72mm x 1.90mm footprint with a square active area (27.72mm x 27.72mm), this TFT Screen is engineered for precision-driven devices like medical wearables, smart home controllers, and industrial IoT hubs. Featuring 240 x RGB x 240 resolution and powered by the ST7789V driver IC, it delivers sharp, vibrant visuals through a high-speed MIPI interface—ideal for data-intensive systems requiring rapid refresh rates. With customizable luminance and a 3-LED backlight, it adapts seamlessly to environments ranging from dim laboratories to sunlit outdoor settings. Its all-direction viewing angle ensures consistent image integrity, whether integrated into handheld scanners, automotive dashboards, or consumer electronics.

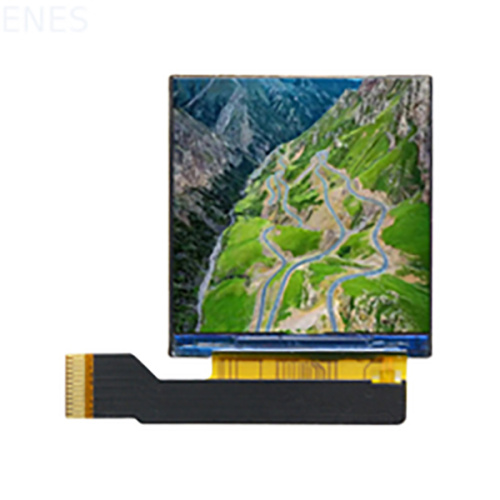

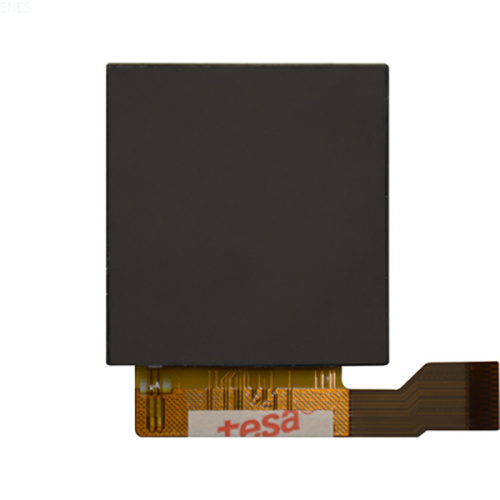

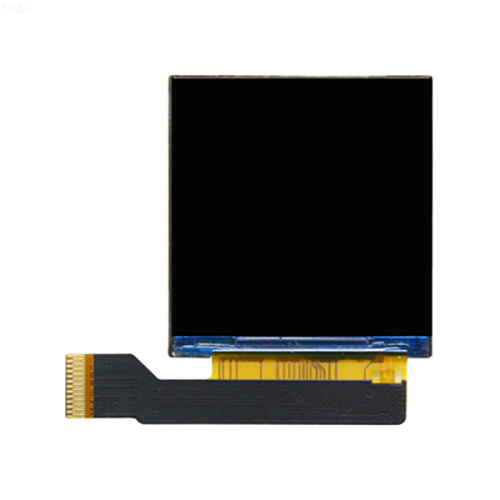

Product Show
Cutting-Edge Performance for Rugged Applications
Built on A-Si TFT technology, the ESEN TFT Display excels in both energy efficiency and durability. The 24-pin SPI/MCU interface offers dual-mode connectivity, while the MIPI protocol enhances data transmission speed by 40% compared to traditional SPI interfaces, reducing latency in real-time applications. Storage resilience (up to -30℃ to 80℃) and a robust operating range (-20℃ to 70℃) make it suitable for harsh conditions, from freezing logistics trackers to high-temperature factory machinery. Optional capacitive touch (CTP) or resistive touch (RTP) panels enable intuitive user interaction, while the 0.2184um pixel density ensures crisp text and graphics for detailed UI/UX designs.
Flexible Customization & Streamlined Global Logistics
ESEN’s T-154HX2501 TFT LCD Screen supports extensive tailoring—modify FPC lengths, redefine pin layouts, or integrate HDMI boards for multimedia compatibility. With a 500-PCS MOQ and rapid 8–12-day production cycle, we cater to startups and enterprises alike. Our scalable supply chain delivers 300,000 units monthly, securely packed in EPE-lined cartons, blister trays, and capboards to prevent transit damage. Competitive pricing (negotiable) and flexible payment terms (L/C, T/T) simplify cross-border procurement, backed by dedicated logistics support to ensure timely global delivery.
Why ESEN?
As a pioneer in TFT Display innovation, ESEN merges technical precision with agile customer service. Each unit undergoes 12+ quality checks to guarantee industrial-grade reliability, making it a trusted choice for aerospace interfaces, retail POS systems, and portable diagnostic tools. Whether you need a basic display or a CTP-enabled solution, our team collaborates closely to align with your project’s unique demands. Partner with ESEN to transform your vision into a market-ready product—contact us today and experience the future of compact display technology!
Note: Customized orders may require additional testing phases. Specifications subject to incremental upgrades.
