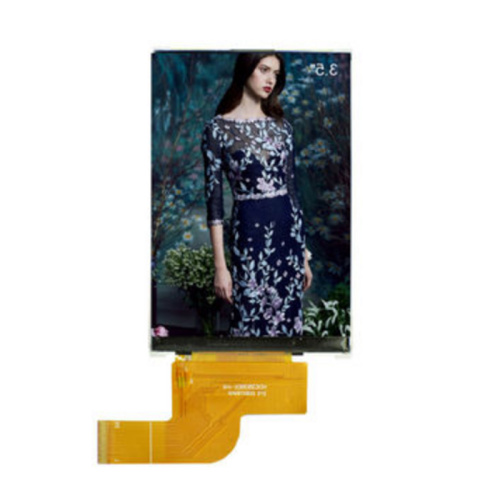

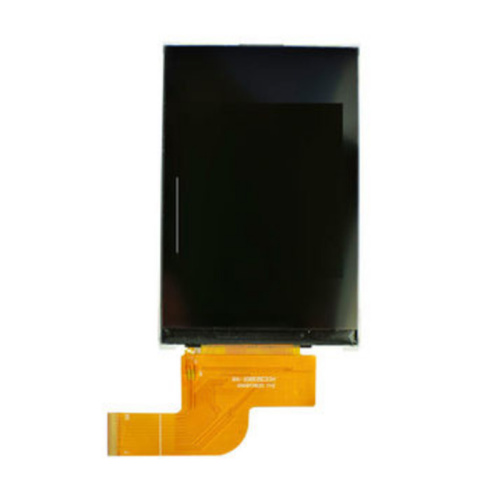

3.5 inch 320x480 TFT display LCD screen ILI9488

Key Specifications/Special Features:

Size: 3.5" TFT
LCM Dimension: 54.50(W)* 83.00(H) * 2.15(T) mm
LCD Active Area: 48.96* 73.44 mm
Number Of Dots: 320 * RGB * 480
LCD Type: a-Si TFT
Viewing Direction: 12 0'CLOCK
Driver IC: ILI9488
Interface Type: RGB
Operating Temperature: -20℃~ 70℃
Storage Temperature: -30℃~ 80℃
Backlight Type: 6 LEDs
Brightness: 370-400Cd/m2

Any third-party trademarks or images shown here are for reference purposes only Organic Light Emitting Display.

With the development of society and the acceleration of urbanization, the pressure on urban traffic is increasing LCD Display Module. In this context, more and more short-distance commutes choose electric vehicles. However, with the increase in the number of electric vehicles, the charging of electric vehicles has become a concern of people, and charging piles have been more widely used Passive matrix OLED. So how should smart charging piles choose outdoor HD charging pile LCD screens? How to make the outdoor direct sunlight clearly visible?
1. High brightness Active Matrix OLED
The high-brightness TFT display is a TFT LCD screen with high brightness and contrast, which can provide better viewing visual effects under strong ambient light Transparent OLED. Ordinary TFT display screens generally cannot see the image clearly in the sun. The brightness of the high-brightness TFT display can reach more than 700cd/㎡.
2. Intelligent environment lighting function Liquid Crystal Display
Automatically adjust the brightness of the environment to display the best effect of the LCD screen. The night light is not dazzling, and the brightness of the displayed image is softer.
3. High and low temperature protection function
Because most of the charging piles are installed and used outdoors, it is necessary to consider the influence of temperature changes. It has an automatic temperature adjustment function at low temperatures to avoid frostbite when the charging pile’s LCD screen is not working; at high temperatures, it exceeds the normal working limit of the charging pile’s LCD screen. The backlight automatically turns off, and the temperature returns to normal working temperature and turns on automatically to achieve the protection effect.
