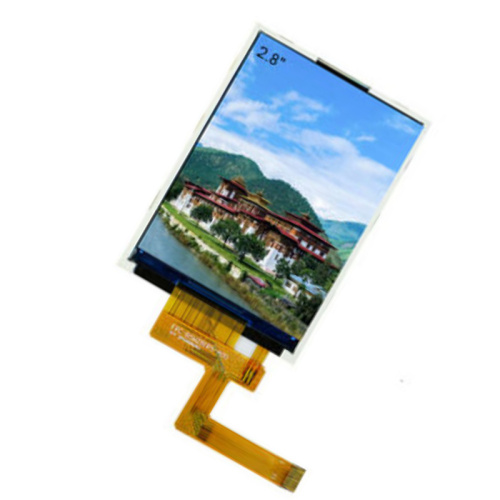

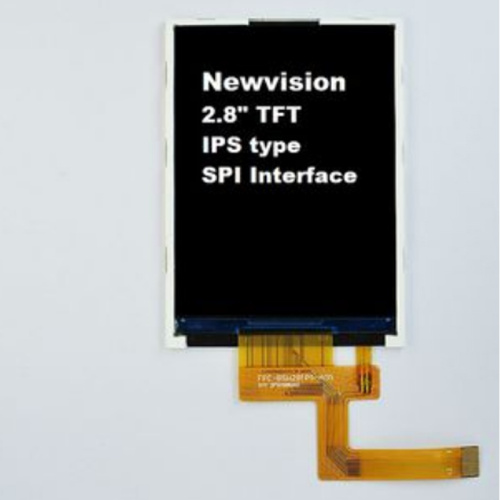

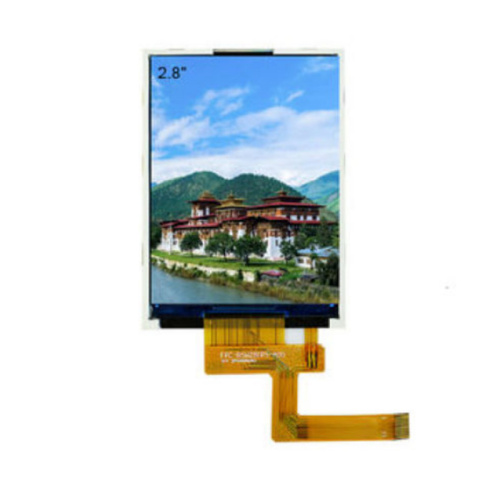

TFT display LCD screen monitor 2.8 inch 240x320

The working environment and working state of industrial display screens are higher than that of ordinary household LCD Display Module panels. In addition, for example, the whole industrial splicing screen has some good effects in terms of chassis and machine heat dissipation. This professional cooling effect ensures that the machine operates continuously 24 hours a day in harsh environments without failure. The aging test of the industrial LCD screen is different when it leaves the factory, and the application selection of various electrical components is also different. Its cooling effect is also very different. Due to demand, the shock resistance of industrial LCD panels is relatively good, while ordinary household LCD Display panels are far from this standard Transparent OLED.

Model Number: H28I1201

Brand Name: Newvison

Origin: China (mainland)

Small Orders: Accepted

Key Specifications/Special Features:
Size: 2.8 inch TFT
LCM Dimension: 50.00(W)* 69.20(H) * 2.30(T)mm
LCD Active Area: 43.20* 57.60mm
Number Of Dots: 240 * RGB * 320pixel
LCD Type: a-Si TFT
Viewing Direction: ALL
Driver IC: ST7789V2-G4-A-1
Interface Type: SPI
Operating Temperature: -20℃~ 70℃
Storage Temperature: -30℃~ 80℃
Backlight Type: 4 LEDs
Brightness: 230-250Cd/m2

Shipping Information:
FOB Port: Shenzhen
Lead Time: 15 - 20 days
HTS Code: 9013.80.90 00
Dimensions per Unit: 5 × 6.92 × 0.23 Centimeters
Weight per Unit: 5.98 Kilograms
Units per Export Carton: 320
Export Carton Dimensions L/W/H: 38.5 × 31.5 × 22.7 Centimeters
Export Carton Weight: 1.86 Kilograms
Main Export Markets:
Central/South America
Eastern Europe
Mid East/Africa
North America
Western Europe
Asia
Australasia
