Lead-free Environmentally Friendly Soldering Tin Furnace

High-quality lead-free soldering furnace

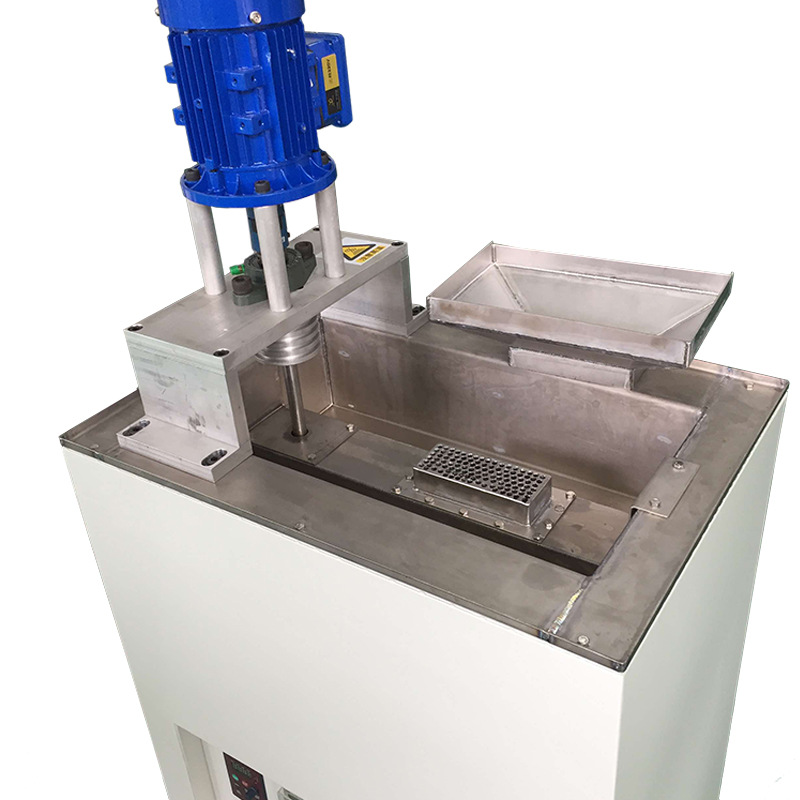

Lead-free tin bath, spray tin channel
The surface is easy to clean and has a long service life
Strong anti-corrosion ability

Spout can be customized
The nozzle size can be customized according to customer needs

Operation panel
Using PID microcomputer chip intelligent control

Dual temperature digital display
Intuitive, clear, high precision, high thermal sensitivity
Fast temperature recovery and fast temperature compensation

Frequency conversion speed motor
Imported variable frequency speed regulating motor has stable peaks
Good tin surface fluidity, good effect of scratch-free tin dross immersion board

Holding device
Under-temperature holding device over-current protection
Effective protection of motor production

Casters
Easy to carry and does not take up space

Timer switch
Weekly control improves production efficiency
Can set the switch time of one week

Common faults and maintenance
Vertical jet tin furnace

1. If during use, the thermostat displays (ERR)
It means that the temperature sensing wire has been damaged and must be replaced with a new one
2. If the temperature drops suddenly during use
A: Check whether the fuse is fused;
B: Check whether the heating tube is damaged or deteriorated;
C: If the above two items are not damaged, please replace with a new solid state relay
3. If it is found that all the digits of the meter are flickering obviously
Please check whether the power supply voltage of the instrument is too low and make it meet the technical requirements
4. If there is a difference between the displayed temperature and the actual temperature
Enter the temperature meter function parameters to set the temperature difference compensation. Because the internal parameters of this thermostat are complicated and the function parameters have been locked by a password, please contact the manufacturer’s technical engineer for the password and temperature compensation parameters
5. Instructions for use
A: Turn on the power switch and the power indicator light is on, indicating that it is working normally
B: Set the required temperature first, and then adjust the thermostat to the required temperature (it is recommended to set the melting temperature to 80-150 degrees for the first time, and then slowly adjust the temperature to the required temperature after the tin starts to melt)
C: It takes about 20-30 minutes for the temperature to reach the set temperature
D: After the tin is completely melted, the soldering work can be done
F: The height of the molten tin in the tin furnace should be about 5mm away from the tin furnace.
6. Maintenance method
A: Every day, after the work is completed, be sure to clean the oxides in the tin bath to keep the tin bath and the tin furnace shell clean for a long time
B: When adjusting the temperature parameters and pressing the switch, be careful not to use too much force to avoid damage to the switch. The tin in the tin bath should be kept in sufficient amount, because the temperature sensing point is about the middle height of the tin bath, too little molten tin will cause temperature detection deviation

Workshop shots

Item display

About delivery
All the equipment of the company includes freight and distribution fees, excluding the cost of going upstairs, depending on the distance, choose logistics consignment or door-to-door delivery
On-site installation and commissioning
The company is responsible for distribution, and there are professional engineers on-site installation, commissioning, training, or guidance and assistance through remote video or telephone
1 year warranty
After-sales promises that all parts of the wave soldering machine are guaranteed for one year, except for human problems
Lifetime service
The company provides life-long maintenance, paid service, only labor costs and material costs



Preparation before installation and commissioning
1. Door-to-door time: within 2 working days after all the following work is ready, special circumstances will be discussed separately
2. Logistics transportation: After receiving the goods, customers who choose logistics transportation must first place the equipment and prepare all the following materials
3. Home delivery: Customers who choose home delivery need to reserve space in advance to prevent equipment and prepare all the following materials
Material preparation:
1. Power connection: lead the power cord to the device according to the requirements of the device, leaving a length of more than 3 meters to connect to the device
2. Air connection: If there is an air source in the workshop, lead the air pipe to the side of the equipment, leaving a length of more than 3 meters to connect to the equipment. If there is no air source in the workshop, you need to prepare the air compressor in advance and prepare the necessary accessories
3. Tin bar: Prepare enough tin bars in advance according to the tin capacity requirements of the equipment, so that the master can directly melt the tin for on-site trial welding test and training when he comes to the door.
4. Flux: the flux that needs to be used when the product is ready for trial welding. At least 2 liters required for testing
5. Cleaning agent: the nozzle used to clean the flux, temporarily not used, it will not affect the debugging
