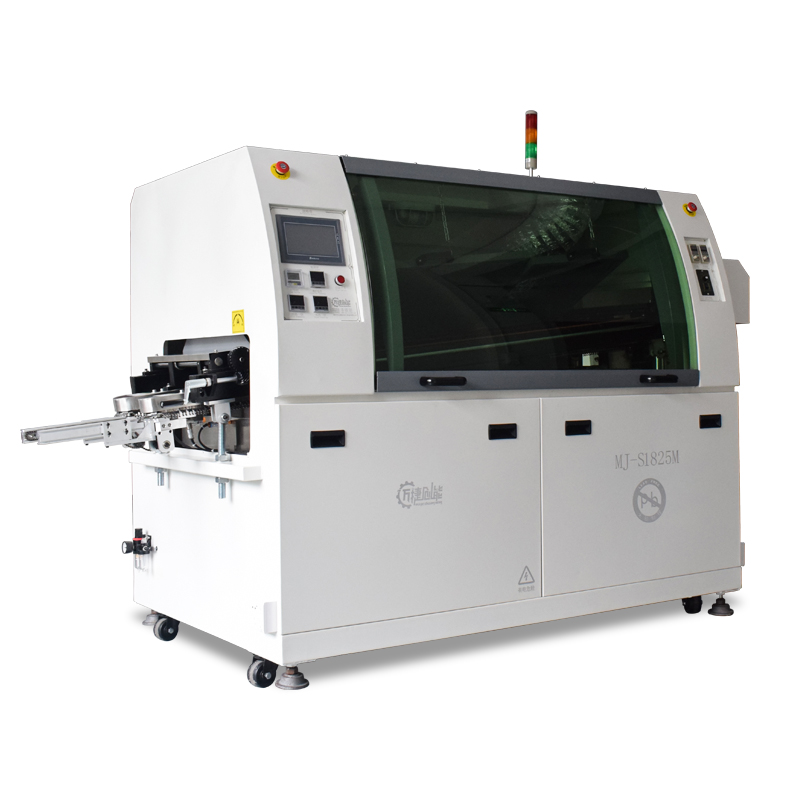

High quality intelligent wave soldering machine
Wave soldering is to make the soldering surface of the plug-in board directly contact the high-temperature liquid tin to achieve the purpose of soldering. The high-temperature liquid tin maintains a slope, and a special device makes the liquid tin form a wave-like phenomenon, so it is called "wave soldering". The material is solder bars. At present, wave soldering machines basically use thermal radiation for preheating. The most commonly used wave soldering preheating methods include forced hot air convection, electric heating plate convection, electric heating rod heating and infrared heating.
Product parameter
Maintenance
|
Project |
Method of operation |
Maintenance amount |
|
Flux spray device |
1. The flux is regularly replaced with new flux 2. Cleaning the flux jet box |
February/Once One month/once |
|
Preheater |
1. Whether it reaches the indicated temperature |
One hour/once |
|
Tin stove |
1. Clean the oxide of the nozzle, remove the nozzle, remove the nozzle, and remove the oxide between the layers of the net; 2. After the tin has been used and aged for a long time, it must be replaced completely. First, increase the furnace temperature to more than 260°, then disconnect the power supply, and put the tin out with a stainless steel spoon |
Six months/once Once a year |
|
Transmission part |
1.Each transmission part should be kept well lubricated and all lubricated with high temperature grease. 2. The tightness of the transmission chain should be checked and adjusted regularly. |
One month/once One month/once |
|
Electric control system |
1. Clean the dust in the electric box 2. Check the electrical appliances in the electric control box and tighten their wiring screws. 3. Regularly check the joints of the electric heating pipes in the preheater and tin furnace. 4. Correction of tin furnace and preheating temperature |
One month/once One month/once One month/once Once a year |
|
Whole machine |
1. Always keep the body and electric control box clean. 2. Except for the relevant technicians, anyone should not operate the machine casually to avoid operating errors and causing damage. 3. It is strictly forbidden to put the solid solder directly into the tin furnace to melt the tin in the first use. |
|
Precautions:
1. The flux should be a special flux for wave soldering
2. Regular cleaning of tin slag in the furnace
3. Regular cleaning of nozzles
4. Add tin at high temperature in the tin furnace, pay attention to safety when cleaning the tin slag, and beware of burns
5. The height of the track must be higher than the height of the tin furnace to avoid damage to the tin furnace
6. The tin furnace is turned on in advance to melt the tin, and the tin furnace temperature reaches a constant temperature before the plate can be passed.
Company strength
Workshop shots
Item display
About delivery
All the equipment of the company includes freight and distribution fees, excluding the cost of going upstairs, depending on the distance, choose logistics consignment or door-to-door delivery
On-site installation and commissioning
The company is responsible for distribution, and there are professional engineers on-site installation, commissioning and training, or guidance and assistance through remote video or telephone
1 year warranty
After-sales promise that all parts of the wave soldering machine are guaranteed for one year, except for problems caused by human factors
Lifetime service
The company's wave soldering provides lifetime maintenance, paid service, and only charges labor and material costs
Preparation before installation and commissioning
1. Door-to-door time: within 2 working days after all the following tasks are ready, special circumstances will be discussed separately
2. Logistics transportation: After receiving the goods, customers who choose logistics transportation should initially place the equipment and prepare all the materials indicated below
3. Door-to-door delivery: Customers who choose door-to-door delivery need to reserve space in advance to prevent equipment and prepare all the materials indicated below
Material preparation:
1. Power connection: lead the power supply line to the device according to the requirements of the device and leave a length of more than 3 meters to connect to the device
2. Air connection: If there is a gas source in the workshop, lead the air pipe to the side of the equipment and leave more than 3 meters long to connect to the equipment. If there is no air source in the workshop, you need to prepare an air compressor in advance and prepare the necessary accessories
3. Tin bars: Prepare enough tin bars in advance according to the tin capacity requirements of the equipment, so that the master can directly melt the tin for on-site trial welding test and training when he comes to the door.
4. Flux: The flux that needs to be used when the product is ready for trial soldering. The test requires a minimum of 2 liters
5. Cleaning agent: used to wash the spray nozzle of the flux, if not temporarily, it will not affect the debugging
