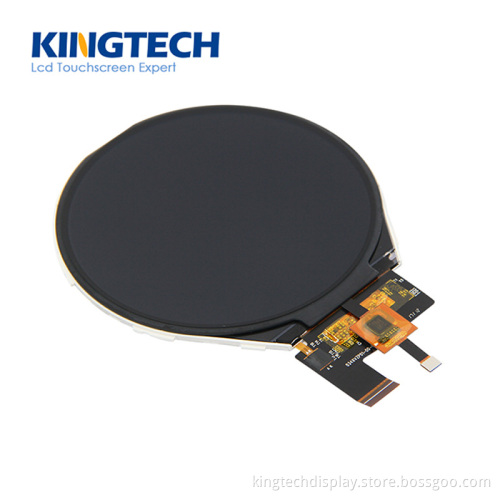

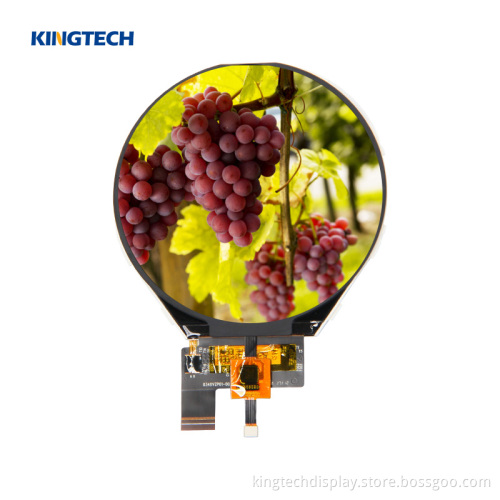

3.4 Inch Round TFT LCD Display
-
USD200≥1 Piece/Pieces
- Payment Type:
- Paypal, Western Union
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4-6weeks Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 800,000pcs/M |
| Supply Ability: | 800,000pcs/M |
| Payment Type: | Paypal,Western Union |
We make sensor and bond FPC in our own lcd screen factory and buy lcd screen from professional lcd screen maker. We can do OCA and LOCA bonding in our own facility.

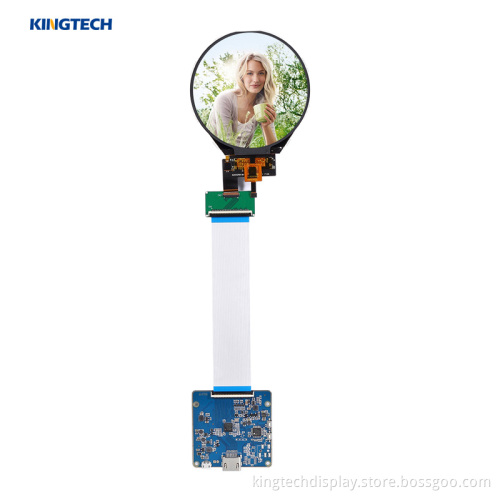

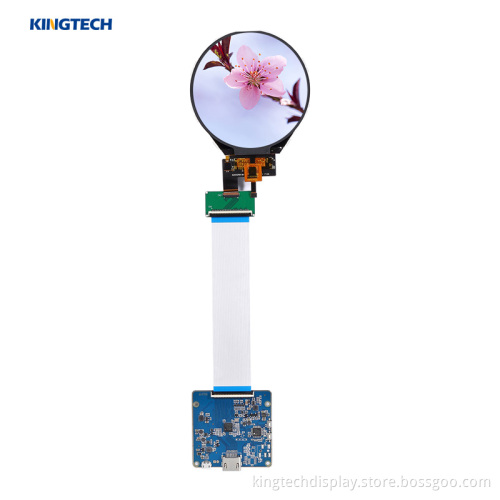

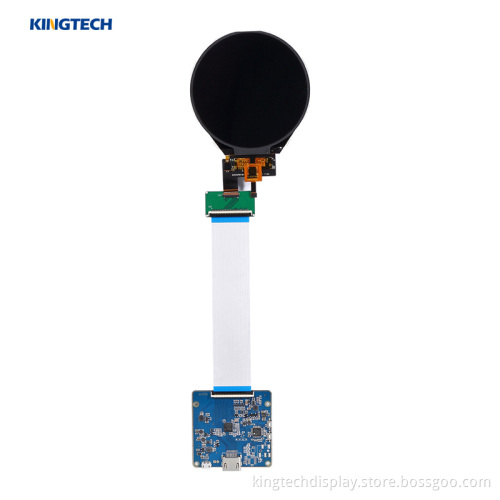

Kingtech 3.4inch IPS/ free/all/wide viewing angle TFT LCD display is our most leading product. The 3.4inch resolution is very high, it's 800x800. It has a capacitive touch and has an existing HDMI Board. The HDMI board can be connected to a raspberry pi.
The 3.4 inch 4k lcd display also has a Linux/Android main board, the board can test the 3.4inch touch function.
We, as one of 4k lcd panel manufacturers, is able to offer qualified prodcts and any requirements for custom 4k lcd panel will be welcomed.
Features of 800X800 Resolution 3.4 Inch Round TFT LCD Display
All/Free/Wide viewing angle
800x800 resolution
Round / Circle / Circular
IPS type
High brightness/sunlight readable
Support capacitive touch
HDMI Board, Linux & Android Board
Specification of 800X800 Resolution 3.4 Inch Round TFT LCD Display
|
Item |
3.4 inch round TFT module display |
|
Model No |
PV03400AR39A |
|
Resolution |
800*800 |
|
Outline Dimension |
99.0(W)*96.6(H)*3.98(T) |
|
Active Area(mm) |
87.6(W)*87.6(H) |
|
Interface |
MIPI 3 lane |
|
Touch panel |
Capacitive touch panel |
|
Viewing Angle |
All |
|
Driving IC |
ILI9881C |
|
Display Mode |
Transmission / Normally Black / SFT |
|
FPC type |
ZIF |
|
PIN |
39 |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-30℃~80℃ |
|
Brightness |
350nits |
|
Board |
HDMI board |
Application of 800X800 Resolution 3.4 Inch Round TFT LCD Display
The 3.4 inches 800x800 round display has a wide application field. It can be used for the thermostat, automotive device, handheld device, industrial control, and smart home equipment.
