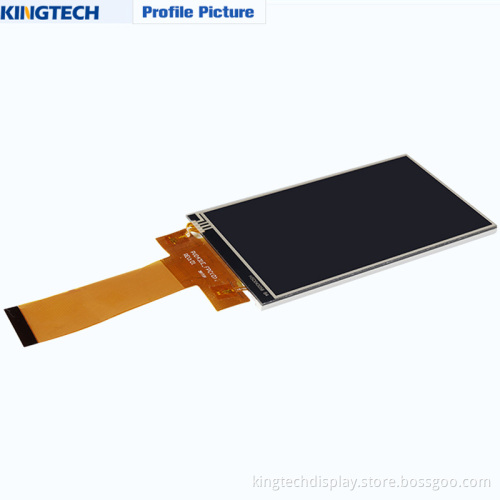

480x800 Resolution 4.3 Inch Full View Angle LCD Display

Kingtech 4.3 inch 480x800 IPS/free/all viewing angle TFT LCD display is our most leading product. This 4.3 inch LCD display is mainly used for blackbox, so this 4.3 inch TFT LCD display is very popular in Korea Market.

This 4.3inch IPS display has the existing resistive touch and TFT capacitive touchscreen, we can also custom the touch panel according to the customer's requirements. We can provide display LCD gps 4.3, mipi dsi 4.3 display and raspberry pi 4.3 TFT. Any requests for products will be welcomed in our Kingtech LCD.

Features of 480x800 Resolution lcd 4.3 Inch Full View Angle LCD Display
This TFT 4.3-inch display has many features, as follows：

All/Free/Wide viewing angle

480x800 resolution

IPS TFT LCD display

3-wire SPI/4-wire SPI + RGB interface

Support resistive touch and capacitive touch

Specification of 480x800 Resolution 4.3 Inch Full View Angle LCD Display



Item	4.3 inch IPS TFT module display
Model No	PV04303LZR50E-C
Resolution	480*800
Outline Dimension	75(W)*120(H)*3.8(T)
Active Area(mm)	56.16(W)*93.6(H)
Interface	3-wire SPI/4-wire SPI + RGB interface
Viewing Angle	All
Driving IC	JD9161
Display Mode	Transmission / Normally Black
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
Brightness	300nits
Touchscreen	Resistive / capacitive touchscreen



Application of 480x800 Resolution 4.3 Inch Full View Angle LCD Display

The ips LCD lcd touch screen can be used for medical devices, handheld equipment, industrial control, smart Home, POS machine, and the black box.

As a professional tft lcd module factory , we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.
