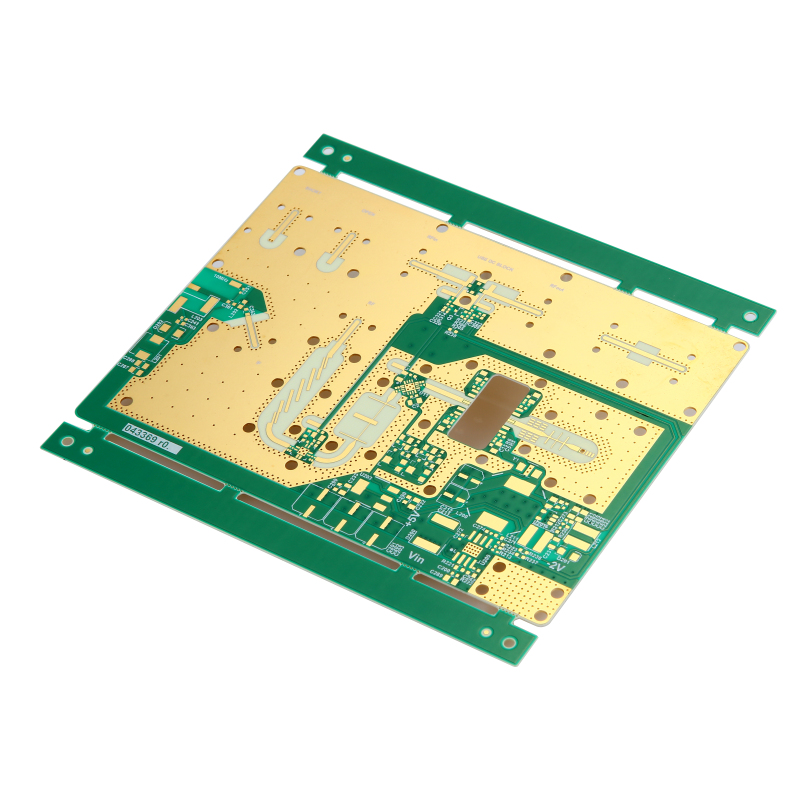

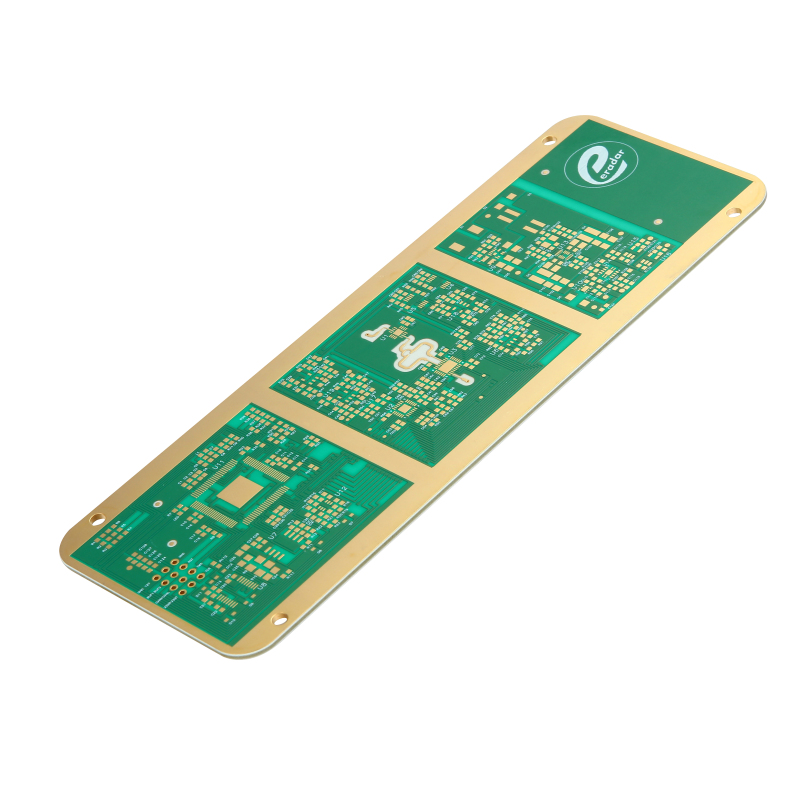

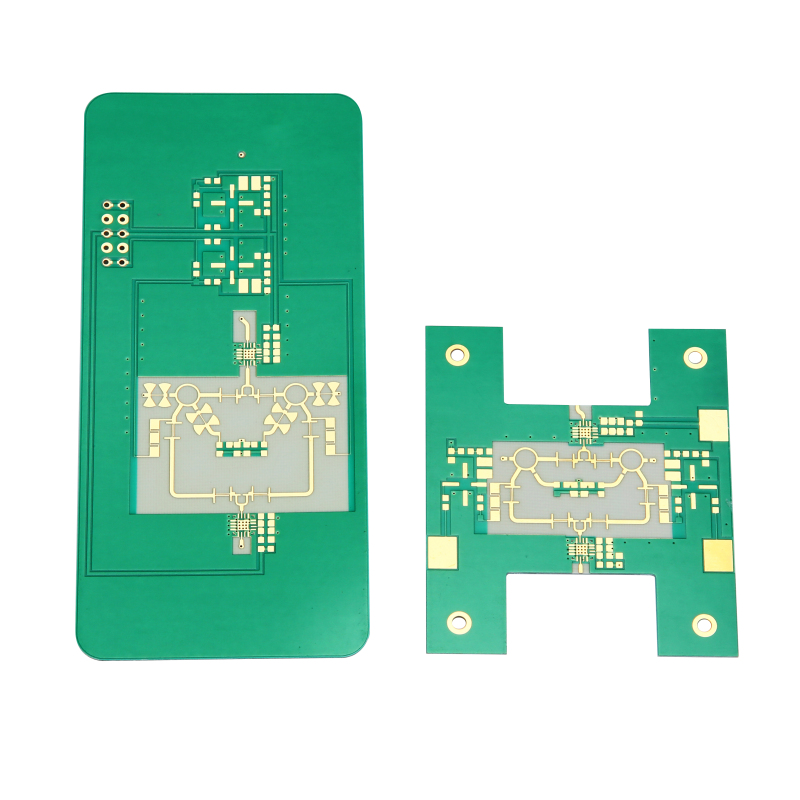

Rogers high frequency pcb Ro4350B RF circuit boards

What is Rogers PCB material?

  With the development of electronic technology. The production of custom pcb fabrication of electronic products also requires more and more materials, such as high-frequency materials. Take Rogers as an example. Rogers PCB board is a kind of high frequency board produced by Rogers Corporation. It is different from traditional PCB epoxy resin. No glass fiber in the middle is a ceramic-based high-frequency material. When the circuit frequency is higher than 500MHz, the range of materials that design engineers can choose is greatly reduced. Rogers RO4350B material can easily make radio frequency engineering design circuits, such as network matching, transmission line impedance control, etc. Due to its low dielectric loss, R04350B has advantages over ordinary circuit materials in high frequency applications. The dielectric constant of temperature fluctuation is almost the lowest in the same material. In a wide frequency range, the dielectric constant is also very stable at 3.48. 3.66. The recommended value of LoPra copper foil design can reduce the insertion loss. This makes the material suitable for broadband applications.
Rogers PCB material Ceramic PCB series classification: RO3000 series: ceramic-filled PTFE circuit material, model: RO3003, RO3006, RO3010, RO3035 Microwave radio frequency board. RT6000 series: ceramic filled PTFE circuit material, designed for high dielectric constant electronics and Microwave radio frequency board, model: RT6006 dielectric constant 6.15/RT6010 dielectric constant 10.2. TMM series: based on ceramics, hydrocarbons, thermosetting polymers, models: TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i composite materials.
