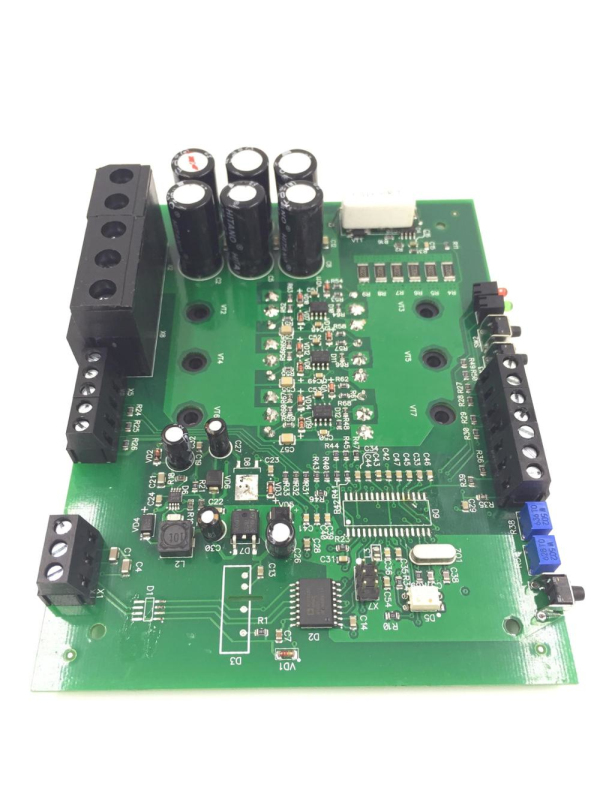

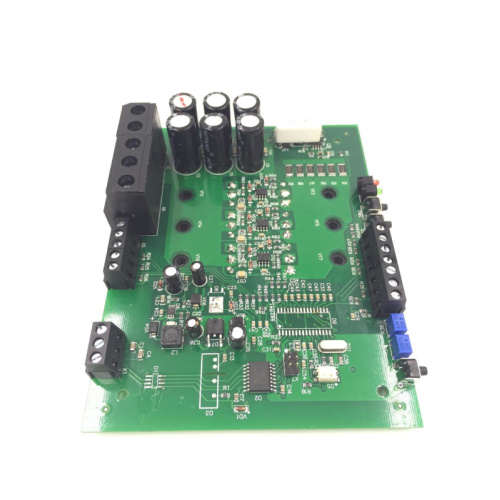

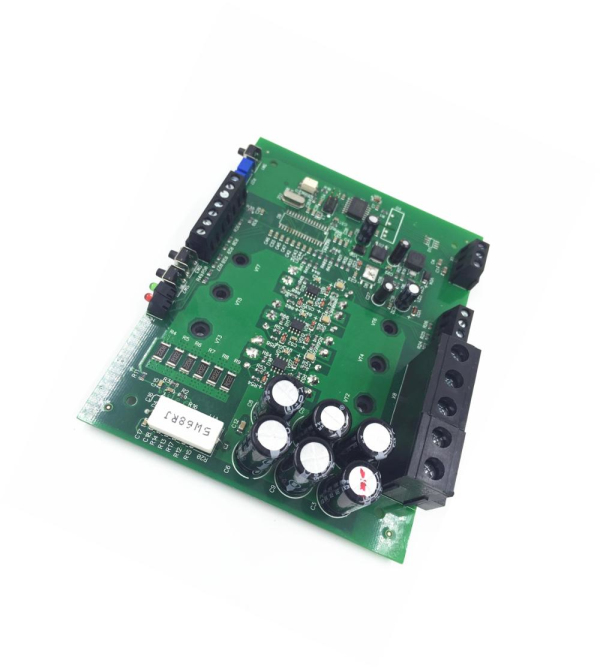

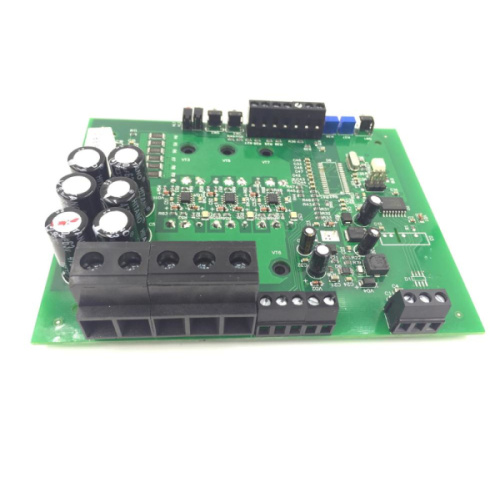

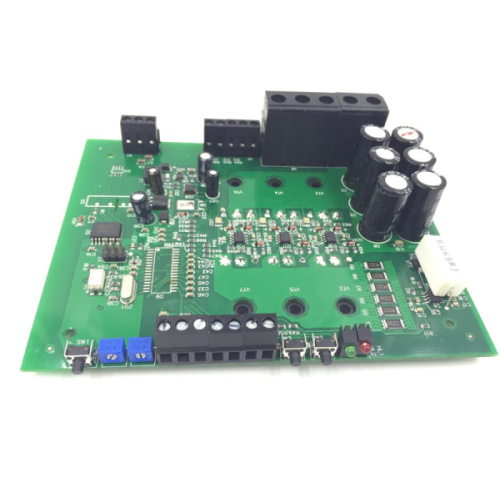

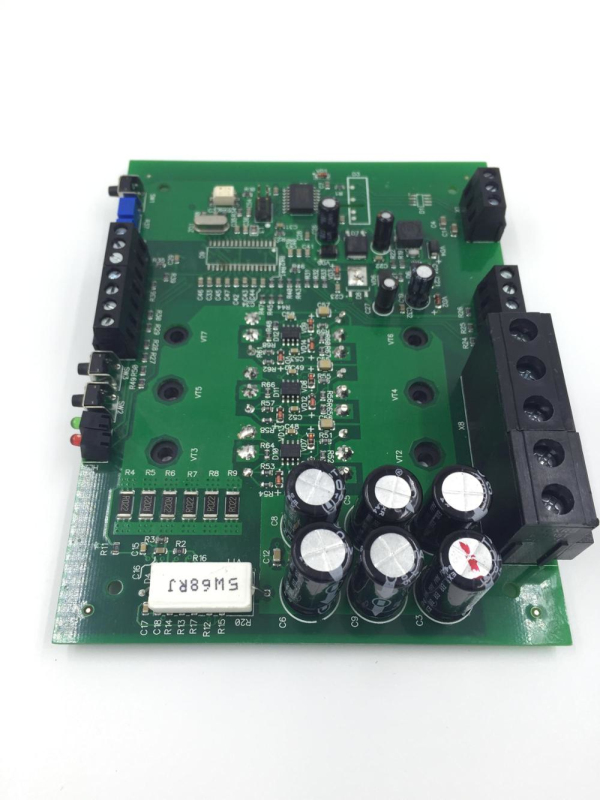

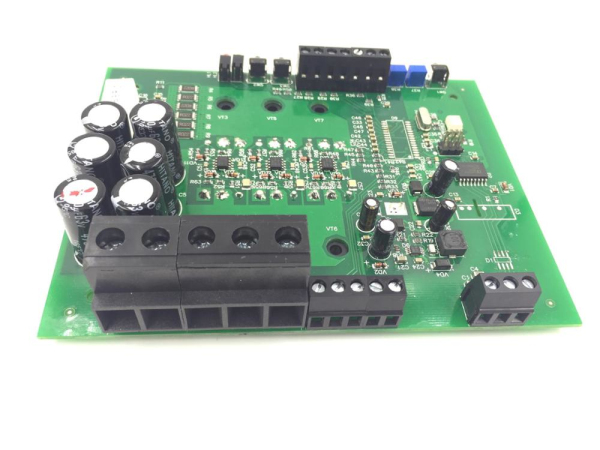

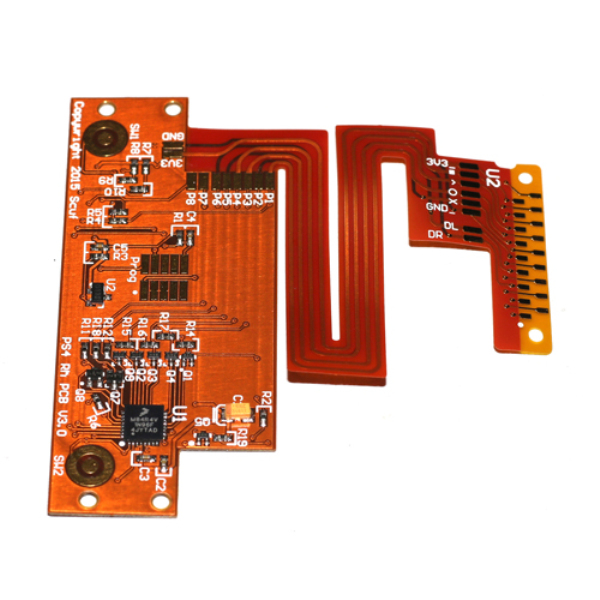

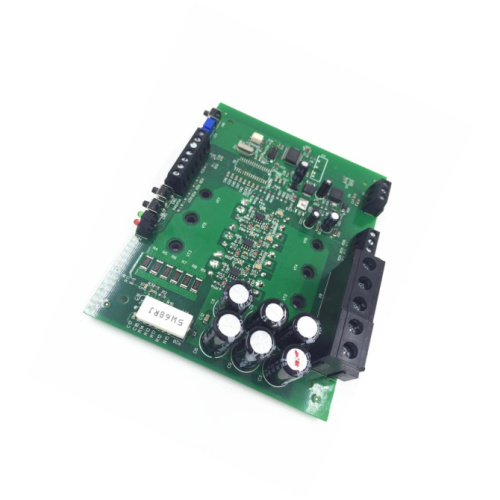

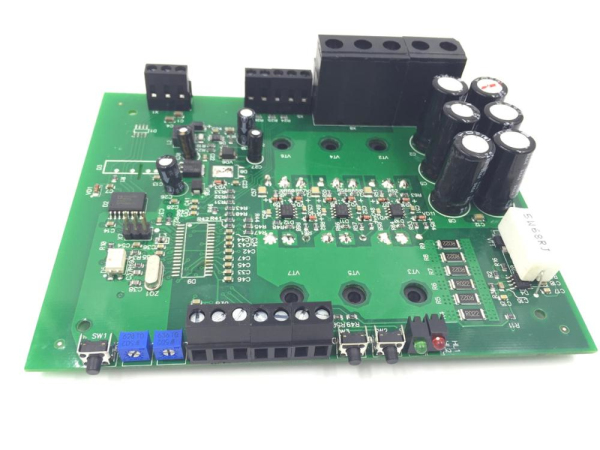

Quick-turn Double Sided PCB

How are double sided PCB made?

1. Preparation part: design the PCB, make the punching file, blank the PCB with double-sided copper-clad board, then polish the double-sided copper-clad board for CNC drilling, and check whether there are defects after polishing and drying.
　　 2. Making vias: This is the main link. Firstly, complete the hole. After the holes are organized and standardized, they are washed, dried and other procedures. After confirming that the holes are not defective, black holes are carried out to prepare for the copper plating of the vias, and then the through holes are carried out, and then the drying is carried out ( In order to fully blacken the air, washing and drying must be performed twice). After completion, copper plating can be performed. After copper plating, polishing is performed, and the holes are checked again for defects.
3. Line production process: applying photosensitive blue oil-drying ink-pasting the bottom and top line film, and positioning it properly-proper exposure, development-washing, drying-checking for defects in the circuit-tinning-washing-corrosion-fading Tin—on solder mask ink—drying ink—attach the film to the pad and set it in place—proper exposure—developing + check for defects—washing, drying—character ink, drying ink—sticking film, proper exposure—developing + inspection Defects-washing, drying-curing ink.
　　4. Mechanical forming treatment: cut off the excess part and make it into a PCB board with a Founder specification. Then you can solder the Electronic Components to the PCB. After soldering the Electronic Components, you can energize the test.
　　The main link of double-sided PCB production
　　In the design of double-sided PCB boards, the layout of components and the wiring of circuit connections are the two key links. The layout is to place the circuit devices in the wiring area of the printed circuit board. Whether the layout is reasonable not only affects the subsequent wiring work, but also has an important impact on the performance of the entire circuit board. After ensuring the circuit functions and performance indicators, to meet the requirements of manufacturability, testing and maintenance, the Electronic Components should be evenly, neatly and compactly placed on the PCB to minimize and shorten the Cable Connectors I/O between the Electronic Components Connectors to get a uniform assembly density.
　　 Arrange the position of each functional circuit unit according to the circuit flow, so that the layout is convenient for signal circulation, input and output signals, high-level and low-level parts do not cross as much as possible, and the signal transmission route is short. Functional distinction: The location of components should be grouped according to power supply voltage, digital and analog circuits, speed, current size, etc. to avoid mutual interference.
　　 When the digital circuit and the analog circuit are installed on the High frequency board at the same time, the ground wire and power supply system of the two circuits are completely separated. If possible, the digital circuit and the analog circuit are arranged in different layers. When fast, medium and low-speed logic circuits need to be arranged on the circuit board, they should be placed close to the connector; and low-speed logic and memory should be placed far away from the connector. In this way, it is beneficial to reduce the reduction of common impedance coupling, radiation and crosstalk. Clock circuits and high-frequency circuits are the main sources of harassment radiation and must be arranged separately and away from sensitive circuits.
