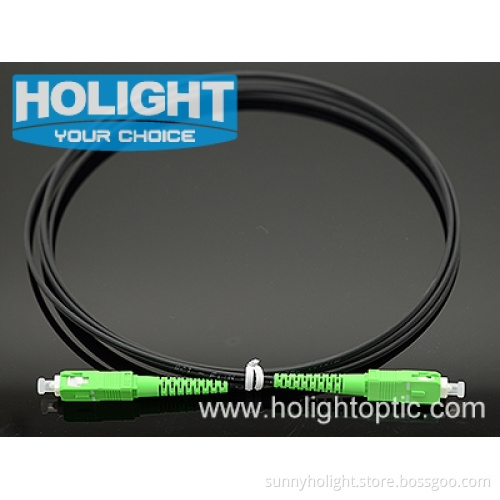

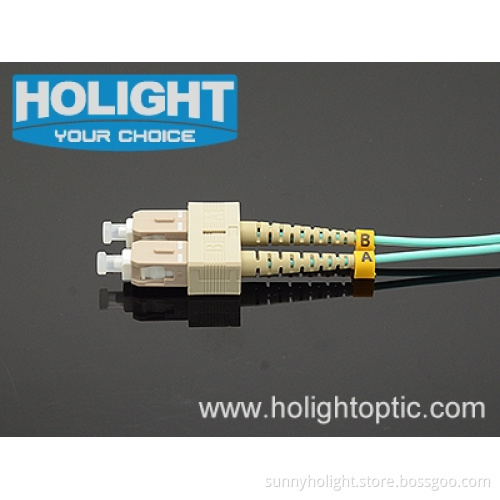

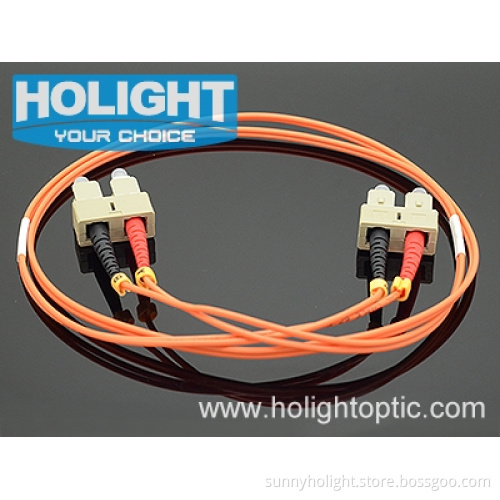

SC Patch Cord

Get Latest Price

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CN
Productivity:	5000pcs/Day
Certificate:	ROHS

Product Description

SPECIFICATIONS

Single mode

Multimode

Insertion Loss

≤0.2 dB

Return Loss

≥50 dB (PC) ≥65 dB (APC)

Repeatability

≤0.1 dB

Interchangeability

≤0.2 dB

Durability

plug and unplug 1000 times

Operating Temperature

-40°C ~ 85°C

FOR PATCHCORD ORDERING INFORMATION

Cable
number

Both sides
conectors

Polish type
of conectors

Fiber
Type

Boot
(cable) Size

Fiber Cable
Length

Fiber Cable
Jacket

Fiber Cable
Color (Standard)

Simplex

9/125μm (SM)

0.9mm

Customized

LSZH

Yellow

Duplex

UPC

50/125μm (MM)

2.0mm

PVC

Orange

Fan-out (4f)

APC

62.5/125μm (MM)

3.0mm

OFNP

Aqua

Fan-out (6f)

Fan-out (8f)

E2000

Fan-out (8f)

MTRJ

MPO
