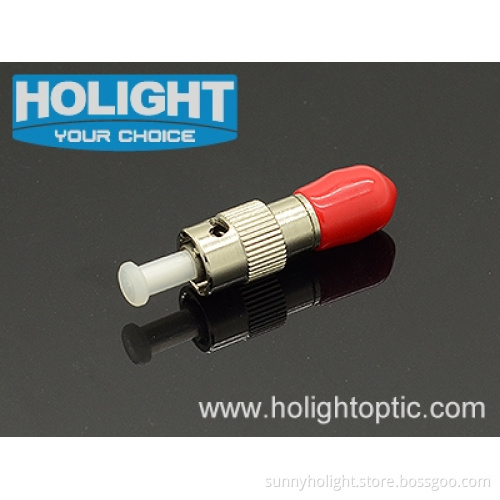

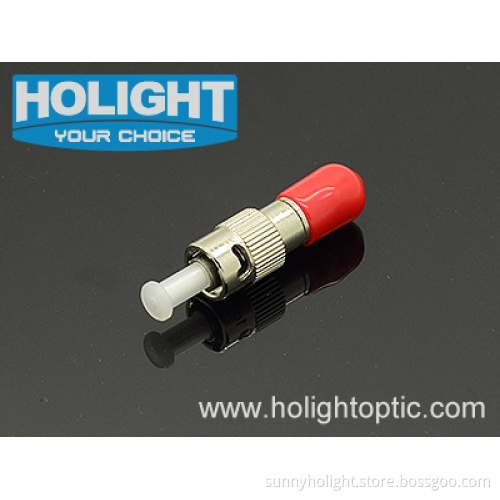

ST Attenuator
- Payment Type:
- L/C, T/T, Western Union
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | CN |
|---|---|
| Productivity: | 50000pcs/Day |
| Supply Ability: | Very Good |
| Payment Type: | L/C,T/T,Western Union |
| Certificate: | ROHS |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
* SPECIFICATIONS
|
Attenuation Range |
0-25dB |
| Attenuation Accuracy | ±0.5dB(1dB-10dB) |
| ±1.0dB(11dB-25dB) | |
| Available Wavelengths | 1310nm,1550nm,1310&1550nm |
| Wavelength Dependence | ＜0.3dB Change in insertion loss for 1310-1550nm |
| Retuen Loss | ≥55dB(UPC) |
| ≥65dB(APC) | |
| Polarization Dependent Loss | ≤0.2dB |
| Temperature Range | -40-80°C(≤0.2dB in insertion loss) |
| Humidity Range | ±0.2dB Change in 10% to 90% relative Humidity Range |
| Vibration | ≤0.1dB Change between 10Hz to 55Hz |
| Drop | ±0.2dB after 8 drops from 1.8meters onto a hard surface |
| Maximum Optical Input Power | 200mW |
