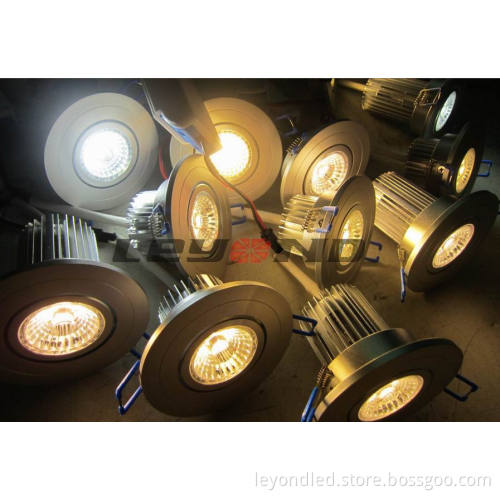

COB LED downlight,cob led down light
- Min. Order:
- 100
- Min. Order:
- 100
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Certificate: | CE,RoHS |
Anti-glare led downlight,anti glare COB LED downlight,COB LED downlight no glare,COB 5w/7w/9w/11w LED downlight no glare,anti glare 9w led downlight,anti glare 9w/11w COB LED downlight,9w COB LED downlight,11w anti-glare led downlight,11w led downlight
1, Anti-glare led downlight Specification
|
Product type |
LY-DL2005PW/WW |
LY-DL2005PW/PW |
|
Color Temperature |
WW |
PW |
|
Power Consumption(W) |
5W |
|
|
Input voltage(V) |
AC100-240V 50/60Hz |
|
|
Power Factor |
>0.95 |
|
|
Beam Angle(o) |
24/38/60 |
|
|
CRI |
85 |
75 |
|
Luminous Flux(lm) |
356 |
413 |
|
Dimmable |
Yes |
|
|
Lifetime(hrs) |
40000 |
|
|
Dimmension(mm) |
Φ95*(H)45*(Hole)75 |
|
|
Net weight(kg) |
0.33 |
|
2, DIWLTM Optical Theory
DIMLTM lens series, an unique and effective solution for LED spot design.
Structure
1) COB LED source
2) LED Chips
3) Fly Eye Design
4) Fish-Scales
3, Anti-glare led downlight Operation and Storage Condition
Operation Ambient Temperature -20 to +40°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -40 to+85°C, Relative Humidity 5~95%
4, Anti-glare led downlight Quality Warranty
Quality guarantee is based on storing, installing ,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately, breaking the operating rules, and leading to the products damaging.
Our company will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period.
5, Anti-glare led downlight Safety Note
No pressing or striking
Transport and handle carefully
Pay attention to the voltage before using
Indoor use only
No twisting when power is on
· Light Facula Illustration
·
Anti-glare led downlight,COB LED downlight application:
Indoor lighting,residential lighting,commercial lighting such as super mall,super market,super store,bedroom,office building etc.
