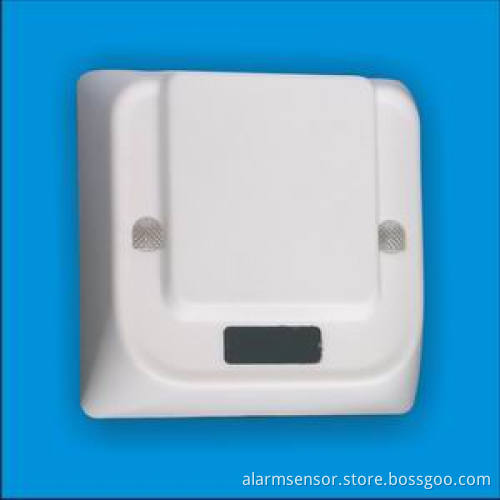

Anti-masking Tri-technology Detector

Specifications:
Detection mode: MRD-PLUS dual microwave system and active infrared
Microwave frequency: meet FCC standard by 10.525 and 10.325GHz
Detection range: 15 x 15m
Anti-mask distance: 0 to 15m
Operating temperatures: -25 to 55°C
Relative humidity: 5 to 95% RH
Detection sensitivity: 1 to 15m adjustable
Auto temperature compensation: digital temperature compensation
Power supply: 9.5 to 15V DC, 18mA
Alarm output: photo mos relay NC contacts, 35V DC, 150mA (maximum)
Tamper output: NC contacts, 60V AC, 500mA
Response speed: 0. 2 and 2m/second
White light immunity: free from any light
Pet immunity: below 35kg
RF immunity: 52V/m, 10 to 1000MHz
Dimensions: 86 x 86 x 28mm
Weight: 150g

Features:

Original MRD-plus displacement identification technology accurately recognizes swing plants, swing wet clothes and more inferential objects, moving human body to prevent false alarms
Original 100% hidden-installation: sensor can be totally hided behind picture or most of common materials, reflecting highest level of security structures, such as museums, exchequers, archives and more
Original MRD-plus technology, change of surrounding temperature will not interfere detection range at all
Anti-mask range 15m, when objects shield, will not interfere the detection sensitivity and range
