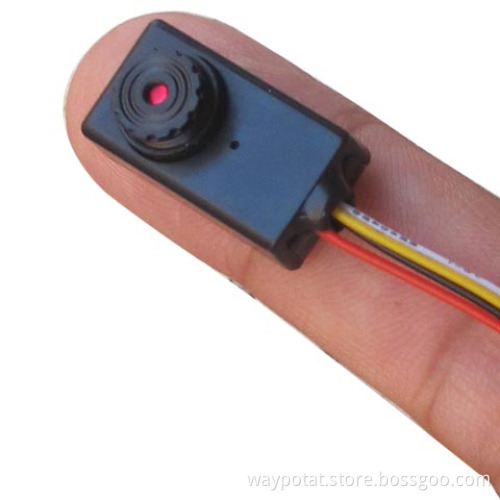

0.008Lux 520TVL Mini CCTV Camera MIC901D
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
MIC901D Specification
|
PICK UP ELEMENT
|
Single chip 1/3 CMOS
|
|
|
SYSTEM
|
NTSC
|
PAL
|
|
NUMBER OF PIXEL
|
NTSC:656(H)×492(V)
|
PAL:786(H)×576(V)
|
|
SENSOR DIMENSION
|
4.75mm(H)×3.55mm(V)
|
|
|
HORIZONTAL RESOLUTION
|
Approximately 520TV Lines
|
|
|
SENSITIVITY
|
0.008Lux/F1.2
|
|
|
LENS & VIEW ANGLE
|
0.5mm F2.0 / 55°
|
|
|
S/N RATIO
|
48dB
|
|
|
AUTO GAIN CONTROL
|
OUT
|
|
|
WHITE BALANCE CONTROL
|
OUT
|
|
|
BACK LIGHT COMPENSATION
|
OUT
|
|
|
VIDEO OUT
|
1.0V p-p/75ohm
|
|
|
AUDIO OUT
|
1.0V p-p/1Kohm
|
|
|
SIZE (L x W x H)
|
22.5mm x 12mm x 10.5mm
|
|
|
WEIGHT
|
2g
|
|
|
WORK CURRENT
|
75mA
|
|
|
POWER REQUIREMENT
|
DC 3.6V-5V
|
|
|
OPERATING TEMPERATURE
|
- 10° C ~ +50°C .less than 90% RH
|
|
|
Connection
|
PIN1à Red DC5V PIN2à Black GND PIN3à Yellow VIDEO OUT PIN4à White AUDIO OUT
|
|
Features & functions
It’s an ultra small high definition CCTV camera with excellent night vision.
Size is 22.5 X 12 X 10.5mm only, Weight is 2g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
