DATA SPECIALIST PLUS(2008 NEW PDA VERSION )

DATA SPECIALIST PLUS
PDA-2008

Introduction
DSP ? is the most complete programming device for digital odometers, airbag modules, car radios, car immobilizers. It is a high-quality embeded system, which offers a maximum of flexibility and working comfort.
Technical reference
Based on ARM 920 TDI, high frequency up to 400 MHZ. 800*480 TFT LCD and touch screen(7.0".16:9). Convenoent keyset. USB host and USB device. SD card interface. 128MB NandFlash, 128MB SDRAM.
Self-check function integrated in system.
Enhanced OBD functions, including CAN, J1850, ISO9141, and Keyword 2000 protocols.
Intuitive operability by full menu and picture guidance. All data can be edited, stored and loaded.
Color connection picture is on the screen whenver you need.
The stored data can be transferred to a PC by USB port or SD card, and also can be transfer to wherever you want directly by internet.
Update directly from internet.

Outstanding:
VW / AUDI/BENZ / BMW / CHRYSLER / GM/FORD / CAVALIER / JAGUAR / LINCOLN / SKODA / SEAT / OPEL/HONDA USA by dashboard socket.
Airbag modules of VW / AUDI/BEN Z /BMW / SAIL / OPEL / FORD / GM by OBD2.
The latest:
NEW GOLF5/A3TT(2007)/A6(2008)/A4 by OBD2(arbitrariness calculation of km for all cars).
BMW CAS3(912XDP512) and MB 912/9S12 EZS can be programmed in circuit(without removing MCU).

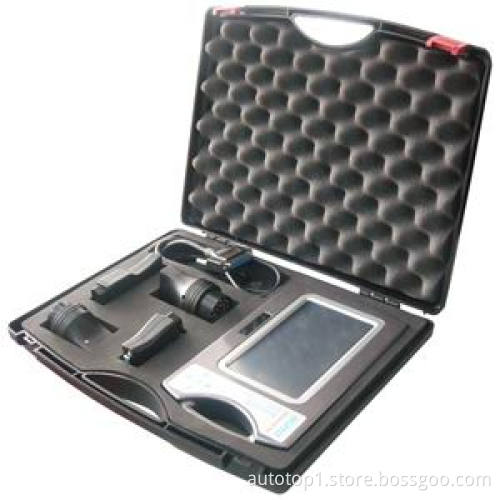

Full package
Full package: Machine, OBD cables, EEPROM , MOTOROLA , NEC, TMS, FLASH, PIC/AVR, HC711, HC908, HC9(S)12, HC705, EWS, NDM457, ST624, TMS374, Transponder,BENZ-38 connector,BWM-20 connector,BMW CAS cables and BENZ cluster cable, SD card , clips, touch-holders, USB cable, DC regulator , with full soft.

DATA SPECIALIST PLUS
PDA-2007

Introduction
The Data-Specialist PLUS is the most complete programming device for digital odometers, airbag modules, car radios, car immobilizers. It is a high-quality embedded system, which offers a maximum of flexibility and working comfort
Technical reference
Based on ARM10 TDI, high frequency up to 400 MHz
640X480 TFT LCD and touch screen. (6.4 inch)
USB host and USB device
SD card interface
Ethernet interface

128MB NandFlash, 128MB SDRAM
Outstanding Characteristics
Color connection picture integrated in software
Enhanced OBD function, ISO-9141 and CAN protocol included

In-circuit Programming Supported

On-board Programming Supported

Security Pass Supported

Update by internet directly
KM Correction, Airbag Reset, Radio and Immo supported
Cover the most latest models
