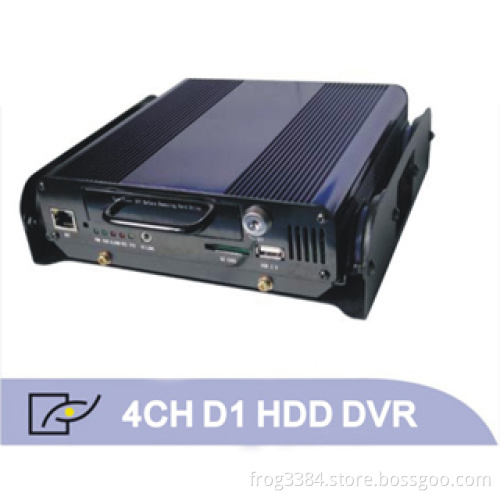

4 Channel Shakeproof HDD DVR

* Edit serial number for differece cars

* Advanced H.264 compression
* D1 Higher resolution for each channel, NTSC: 704 x 480 / PAL:   704 x 576.
* Built-in SATA 2.5" Hard Drive up to 500GB memory and 32GB SD card .
* Standard AVI file format and FAT32 file system
* Reliable power management, wide voltage: +8VDC~+40VDC.
* Multiple way for convenient and fast file searching by date/time with user friendly interface.
* Compact size & lightweight for easy installation.

Professional Aviation Connectors

Face look

SD and HDD memory with Locking

Shakeproof housing designing

Detail datas:

1- High video quality based on H.264 High Profile technology for video compression.

2- High resolution recording, up to mega-pixel for 4 channel(1280x1024) and D1 resolution for 1 channel(PAL: 704x576 / NTSC: 720x480).

3- Compact size, much easier for installation.

4- Support from 8VDC to 40VDC, applicable for 12VDC and 24DC vehicles.

5- The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit.

6- Can use ignition to control the power. Configuable power timer after ignition is off.

7- Automatic, Event Trigger, Schedule or Motion Recording options.

8- Can record speed with audio and video. Support overspeed alarm.

9- Support 3 sensors, can record brake, return, right turn, left turn light status into the record file.

10- Use avi format for record file. Compatiable with different player software.

11- Support FAT32 file system, record file can be read directly on Windows, Linux.

12- USB Port connect thumb Drive / External HDD storage.

13- External GPS allows for vehicle tracking and location recording in video field.

14- Motion detection and the sensitivity can be adjusted.

15- Date and time stamp records onto footage.

16- Play the recorded AVI files back using the unit connected to TV/Computer or if using the SD card, plug directly into your PC.
