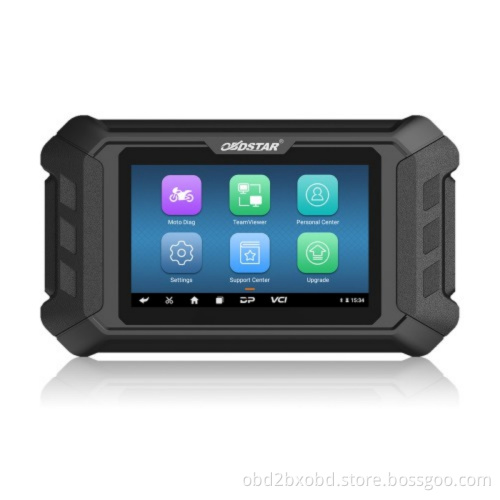

OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

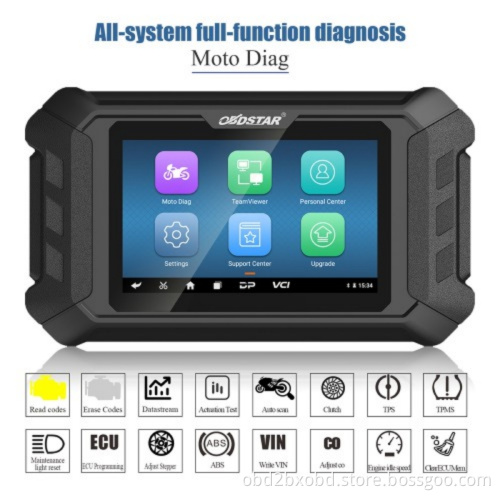

OBDSTAR MS50 Features:

1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support most of the Asia and Europe models;
9.OBDSTAR MS50 Supported car list.

OBDSTAR MS50 Advanced Function:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle/Snowmobile/ATV/UTV Support Car Series:

Asia:
Honda、Kawasaki、Kymco、Suzuki、SYM、Yamaha、PGO、Hardford、AEON；

Europe:
Benelli、KTM、Piaggio、Vespa

More functions under developing...
Different configurations include different software. For details, please contact OBDSTAR.

Function Display:

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin/Fault Guidance

3）Supported System List/ Manual Service Function

4) Manual maintenance reset

5) Diag socket/Diag Connector Location

6) Data Flow Text/ Waveform Diagram/Instrument Diagram

7)Special Function-Benelli

8) Special Function-KTM

9) Special Function-Piaggio

10) Special Function-Vespa

OBDSTAR MS50 Latest Update Information:

MS50 BAJAJ [V30.00] UPGRADE on Mar 30th, 2021:

Brand	Model	Year	System
BAJAJ	Ninja 650R	2006-2011	ENG
	Ninja 650R	2012-	ENG
	Ninja 300	2013-	ENG
	Pulsar 200 NS	2014-	ENG
	Pulsar 200 NS		ABS
	Pulsar 200 NS		ENG
	Pulsar 200 NS		ABS
	Pulsar FF 200		ENG
	Pulsar FF 200		ABS
	Pulsar RS 200		ENG
	Pulsar RS 200		ABS
	Pulsar 150	2014-2016	ENG
	Dominar 400	2016-	ENG
	Dominar 400	2016-	ABS
	Pulsar LS	2017-	ENG
	Pulsar NS160		ENG
	Pulsar NS160		ABS

MS50 ENFIELD[V30.00] UPGRADE on Mar 30th, 2021

Brand	Model	Year	System
ENFIELD	Interceptor	2018-	ENG
			ABS
	Continental GT		ENG
			ABS
		2014-2017	ENG
	Bullet 500 EFI	2009-	ABS
			ENG
	BUullet Electra		ABS
			ENG
	Classic		ENG
	Himalayan	2016-	ABS
			ENG

Product Parameters

Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD：5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature: -20℃～55℃（14℉～131℉）
Storage temperature: -20℃～70℃（-4℉～158℉）
Weight: 700g（Main Unit)
Dimension: 140mm*89mm*18mm

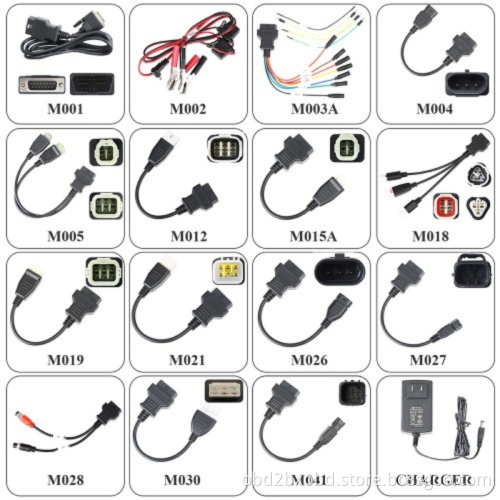

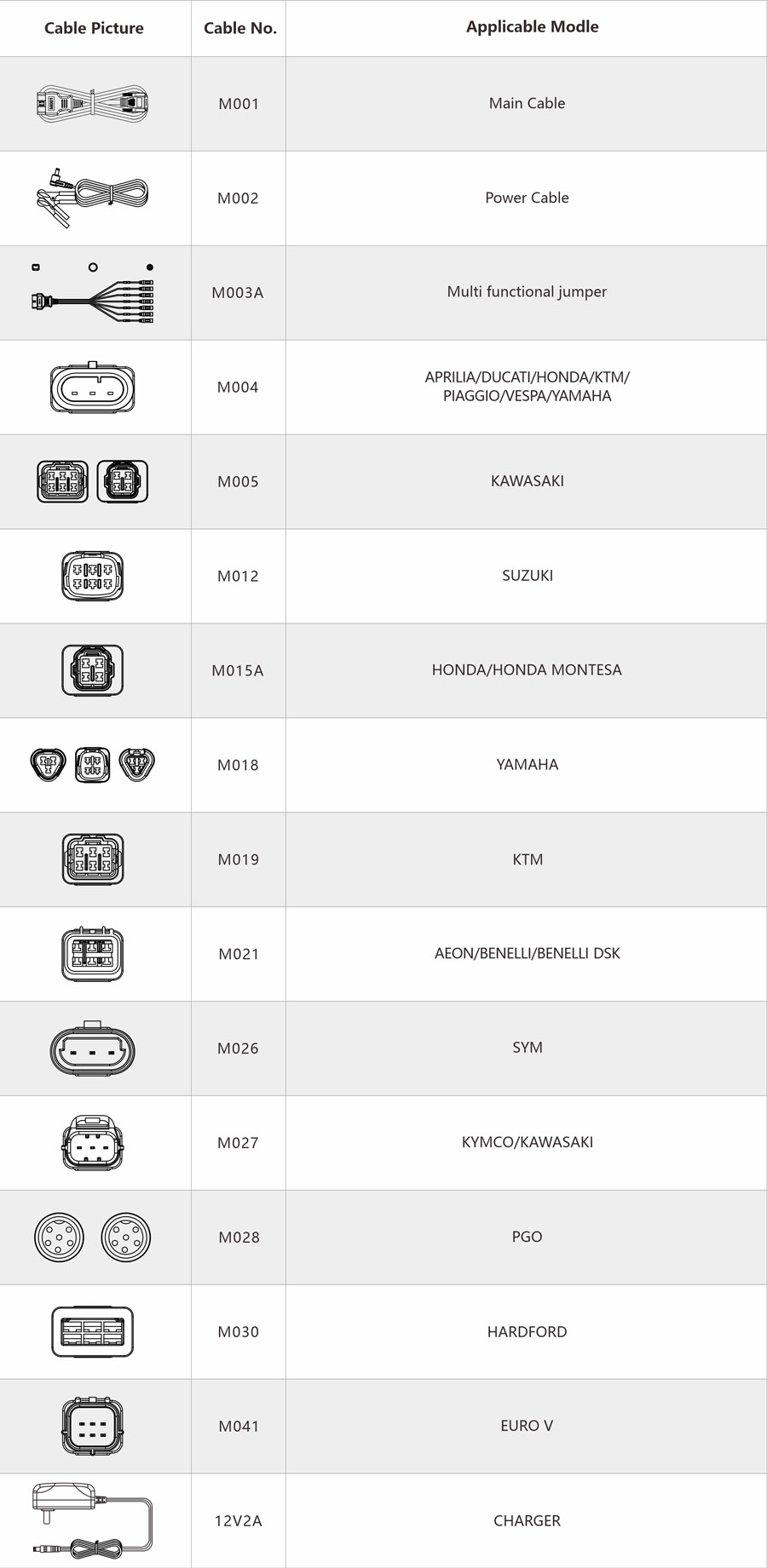

Package includes:

1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi functional jumper
1pc x M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005 KAWASAKI
1pc x M012 SUZUKI
1pc x M015A HONDA/HONDA MONTESA
1pc x M018 YAMAHA
1pc x M019 KTM
1pc x M021 AEON/BENELLI/BENELLI DSK
1pc x M026 SYM
1pc x M027 KYMCO/KAWASAKI
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x M041 EURO V
1pc x 12V2A CHARGER

Shipping Method and Delivery Time:

US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.

DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
