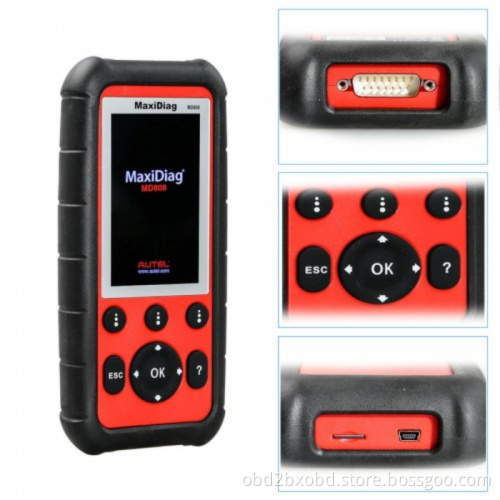

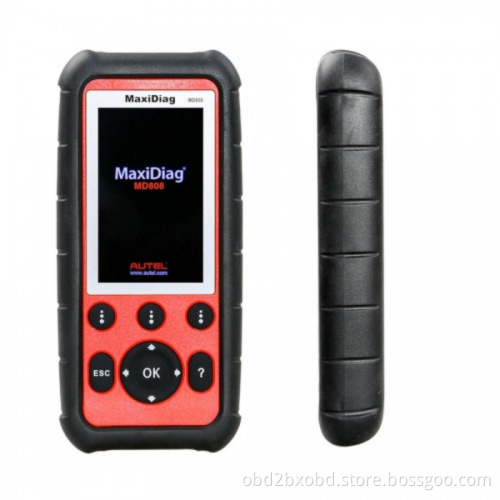

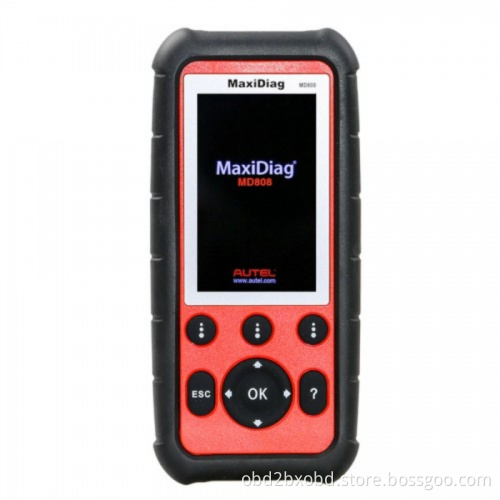

Autel MaxiDiag MD808 Diagnostic Scan Tool for Basic Four Systems

Support Update Online Free Lifetime
Language: English Only

The all new MaxiDiag MD808 is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD808 can access Engine, Transmission, ABS, and Airbag (SRS) systems for the best diagnosis operations. With all that enclosed in a 4-inch hand-held device, there is no better multifunctional scan tool on the market.

Features

Support Read/Clear Codes and Live Data functions for Engine, Transmission, ABS, and Airbag (SRS) systems
Read and clear trouble codes, control and test BMS/Oil Reset/ SRS/EPB/DPF systems
Support oil service reset
Support battery registration and reset
Diesel particulate service including forced regeneration
Reset steering angle sensor (SAS) functionality
Relearn parking brake pad after replacement
Reset service mileage and service intervals
Turn off ECU brake warning light
Perform O2 monitor, on-board monitor, I/M readiness and component testing
Print diagnostic reports via PC connection
Global OBD II coverage for U.S. domestic, Asian and European makes and models
All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 support

Specifications

Processor ARM® Thumb® Processor (400 MHz)
Memory 32MB, 166 MHz
Display 4.0 inch LCD with 800x480 resolution
Connectivity Mini USB: 2.0 Micro SD Card (16GB)
Power Consumption 1.7 W
Operating Temperature -10°C to 60°C (14°F to 140°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 5% - 95% non-condensing
Housing Strong plastic housing with protective rubber boot
Dimensions (W x H x D) 202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight 313 g (0.69 lb.)

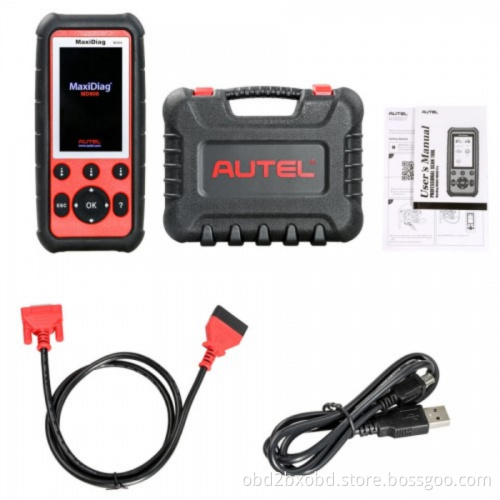

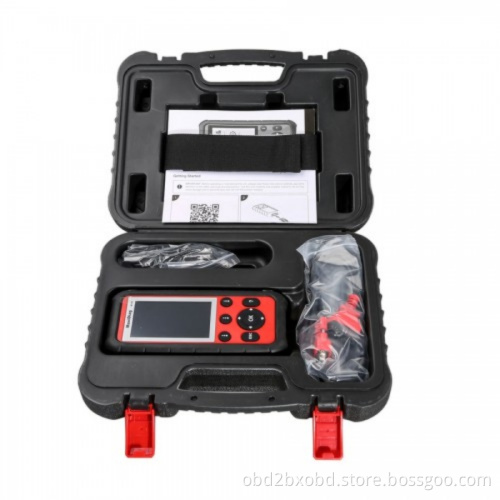

Package includes:

1pc x User Manual
1pc x Quick Reference Guide

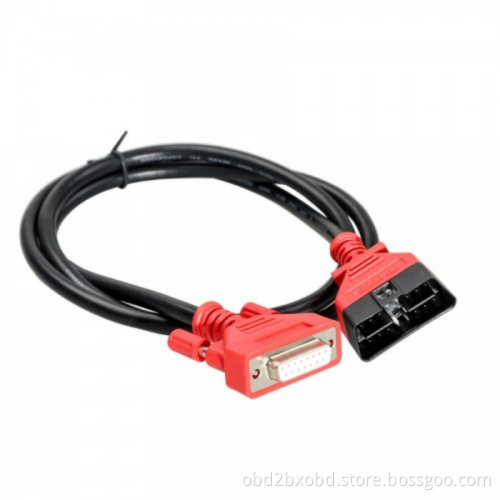

1pc x Main cable
1pc x Micro SD card
1pc x Carry case
1pc x USB Cable



Shipping Method and Delivery Time:

US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.

DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
