Original Xhorse VVDI PROG Programmer V5.0.5

Buy VVDI-Prog programmer, get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service.




VVDI Prog Latest Update Information:

VVDI Prog Software Update V5.0.5 (2021-07-29):
VVDI Prog V5.0.5 Free Download Password:123456
* This version DON't need update firmware
+ Add MPC5632M,
MPC5633M,
MPC5634M,
options in
<2-MCU>->
+ Add CR16MCS9V,
CR16MCT9V,
options in
<2-MCU>->
+ Add R7F701417,
R7F701437,
R7F701441,
R7F701442,
R7F701461,
R7F701462 options in
<2-MCU>->
+ Add BUICK-REGAL-BCM(MC9S12XDP512)
option in <4-IMMOBILIZER>->
+ Add S350 SRS(CR16MCT9VJE7)
option in <7-AIRBAG>->

V5.0.4 VVDI Prog Update (2021-07-01)
* This version DON't need update firmware
+ Add PIC18XX25K80, PIC18XX26K80, PIC18XX45K80, PIC18XX46K80, PIC18XX65K80, PIC18XX66K80 options in <2-MCU>->< MICROCHIP-PIC18F>
+ Add MM9Z1I638_UNSECURED, MM9Z1J638_UNSECURED options in <2-MCU>->
+ Add MPC5514, MPC5515,MPC5516, MPC5517 options in<2-MCU>->
+ Add BENZ-W205_W207_W212 BCM option in <4-IMMOBILIZER>->
+ Add MISTRA-47-PKE-MOUDLE(2017) option in <4-IMMOBILIZER>->
+ Add 70-CHIP-IMMO-MOUDLE option in<4-IMMOBILIZER>->
+ Add HOWO-STRYKER-READ(2019), HOWO-STRYKER-WRITE(2019), options in <5-DASHBOARD>->
+ Add HAVAL-H6PRO-DASHBOARD(2017) option in <5-DASHBOARD>->
+ Add Bora(2015-2020)(D70F3423), JETTA(2015-2020)(D70F3423), SANTANA(2015-2020)(D70F3423), C-TREK(2015-2020)(D70F3423) options in <5-DASHBOARD>->
+ Add Lamando EPS(2018-)option in <8-OTHER>->

VVDI Prog 5.0.2  Update (2021-04-30)
This version DON't need update firmware
+ Add D160XX(ST),
D80XX(ST)
M35080XX(ST),
M35160XX(ST)
options in <1-EEPROM&FLASH>->
+ Add R5F10A/10B_Data_4KB_Write,
R5F10AxAx_Flash_16KB_Write,
R5F10A/10BxCx_Flash_32KB_Write,
R5F10A/10BxDx_Flash_48KB_Write,
R5F10A/10BxEx_Flash_64KB_Write,
R5F10A/10BxFx_Flash_96KB_Write,
R5F10A/10BxGx_Flash_128KB_Write,
options in <2-MCU>->
+ Add R5F11B_Data_4KB_Write,
R5F11BxCx_Flash_32KB_Write,
R5F11BxEx_Flash_64KB_Write,
options in <2-MCU>->
+ Add R5F11Z_Data_2KB_Write,
R5F11ZxAx_Flash_16KB_Write,
options in
<2-MCU>->
+ Add STM32F103xC,
STM32F103xE,
STM32F105x8,
STM32F105xB,
STM32F105xC,
options in
<2-MCU>->
+ Add Mitsubishi-Eclipse
Cross-BCM(D70F3380) option in
<4-IMMOBILIZER>->
+ Add CEM-V40-2014(SPC560B60L7)
options in <4-IMMOBILIZER>->
+ Add CEM1(R5F64524)
options in <4-IMMOBILIZER>->
+ Add SRS(MC9S12DG128-UNSECURED)
options in <7-AIRBAG>->
+ Add ELANTRA-INDOOR-DISASTER-BOX(--17)
options in <8-OTHER>->

V5.0.1 VVDI Prog Update (2021-04-02)
* This version DON't need update firmware
+ Add R5F140_Data_8KB_Write, R5F140xLx_Flash_512KB_Write, R5F140xKx_Flash_384KB_Write, options in <2-MCU>->
+ Add R5F10J/10K_Data_2KB_Write, R5F10J/10KxCx_Flash_32KB_Write, options in<2-MCU>->
+ Add R5F11AxJx_Flash_256KB_Write, R5F11AxHx_Flash_192KB_Write, R5F11AxGx_Flash_128KB_Write, R5F11A_Data_8KB_Write, options in <2-MCU>->
+ Add R5F11Ex8x_Flash_8KB_Write, R5F11ExAx_Flash_16KB_Write, options in <2-MCU>->
+ Add R5F109_Data_4KB_Write, R5F109x8x_Flash_8KB_Write, R5F109xAx_Flash_16KB_Write, R5F109xBx_Flash_24KB_Write, R5F109xCx_Flash_32KB_Write,
R5F109xCx_Flash_48KB_Write, R5F109xEx_Flash_64KB_Write, options in <2-MCU>->
+ Add SPC564B64 option in <2-MCU>->
+ Add CAS1-2K79X/0L01Y option in <4-IMMOBILIZER>->
+ Add BUICK-IMMO (2013)(HC08ASxx) option in <4-IMMOBILIZER>->

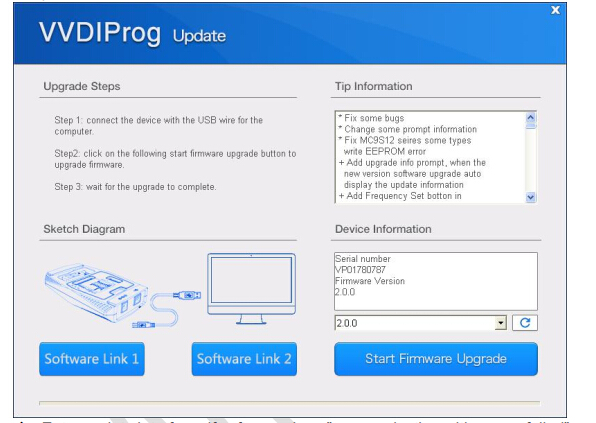

How To Update VVDI Prog Programmer Online?

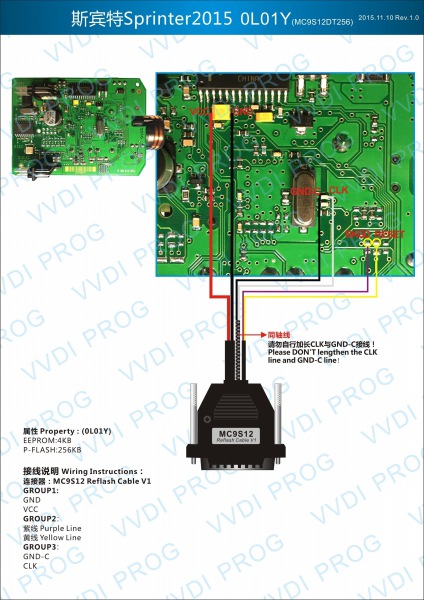

VVDI Prog Connection for Sprinter:

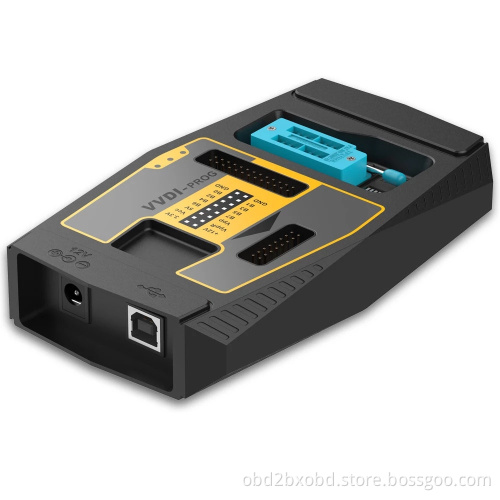

VVDI Prog Programmer Unit Description:

1.16 Pin DIP socket Function:

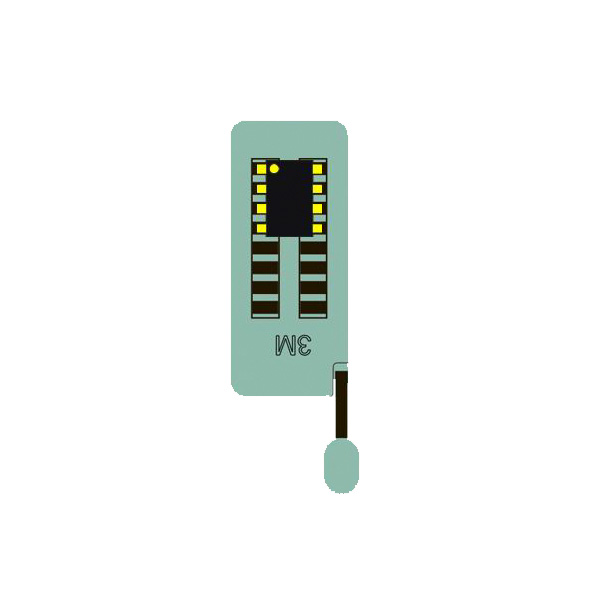

Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction

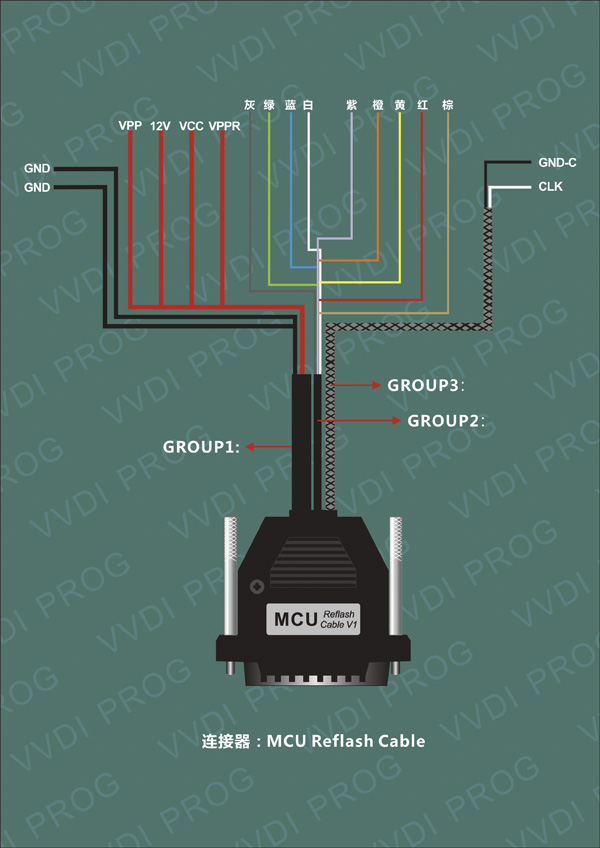

2. MCU Reflash Cable
    Function:       Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
   Use method: Soldering the line on pin of chip before read & write
   Notes:
     (1) Please check all connection lines,ensure correct and reliable connection
     (2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

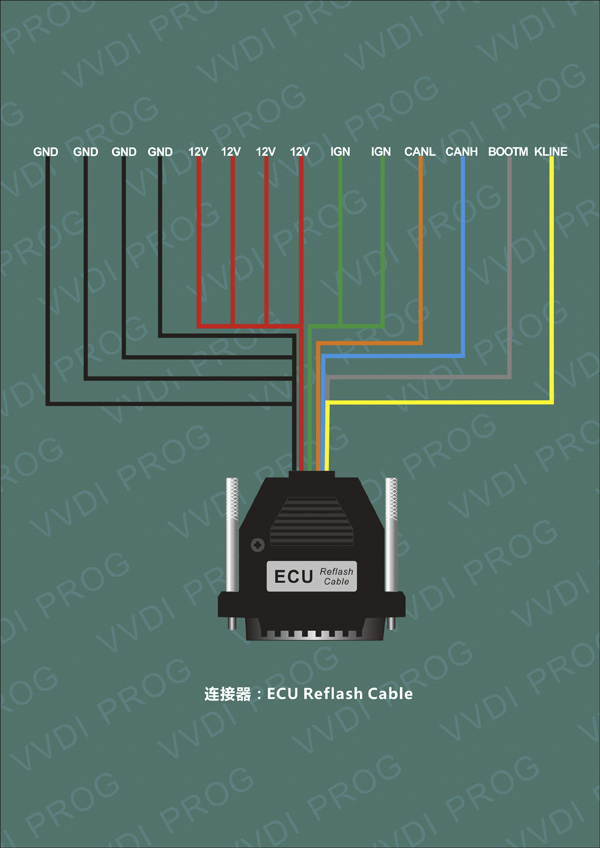

3. ECU Reflash Cable
        Function:          Read & Write engine ECU
        Use method:   Connect the ECU and R&W
        Notes:               Please check all connection lines, ensure correct and reliable connection

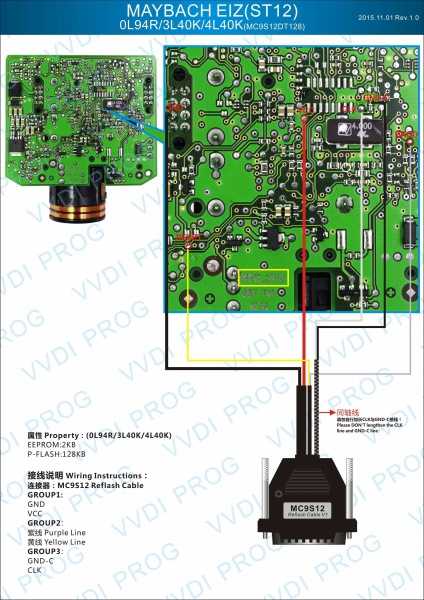

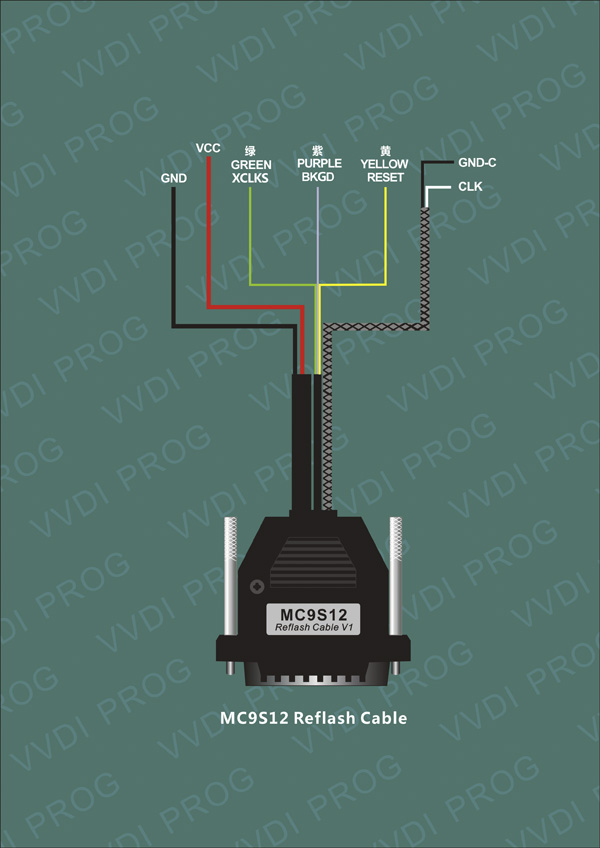

4.MC9S12 Reflash Cable
     Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
     Use method: Soldering the line on pin of chip before read & write
     Notes:
       (1) Please check all connection lines,ensure correct and reliable connection.
       (2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.




VVDI Prog Programmer Feedback:

did a few tests today and this is what I found out.
It seems that VVDI prog reading speed is dependent on the processor speed of the computer.
CAS3 0L15Y flash read times
Centrino processor @ 1.6ghz Windows XP = 12mins
Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
Other programmers do not seem to be affected by processor speed at all.
I also would of thought this was a fairly easy question to answer without me doing all the testing
Tested by me: cas 2, cas 3, cas 3+, Cas4 5m48h, volvo cem v40 all ok.
Is a very good tool and for bmw cas4 .
I tested today D80 and a m35080v6, and they work perfect.
Mine erased D160 (BMW F01 dash) with no problem.
Tried to renew bmw e series 868 key. Vvdi programmer claimed operation success but in tango key is now recognized as transponder type A. locked
I did renew 2 keys! Both worked and now are programmed to cars!
Only thing you need to disconnect from PCB is battery while writing the renew file. (Remove the batteries)
Renew BMW series E 868 key – 100% OK z vvdi-prog v4.5.7
FRM3 works perfectly
More EDC17 under ECU section would be great!
Especially BMW EDC16 and EDC17 for ISN purposes.
BMW F series FEM module reading but for that i can only dream about…
BMW BMSX bike ECU would be great…
Renew pcf7946 and 29f family
Renew E series remote with pcf7942 / pcf7944 would be fine
Unlock and download the 9S12G128 secure without erasing it first would be nice .
erasing all 35080s and d80 with soic clip would be super nice too!
I read the CAS3+ MCU with VVDI Prog and that worked perfect.
BMW FRM3 series Exx – READ and WRITE – OK
BMW KEY series Exx – OK
BMW DashBoard 6WB 160DQWT – READ , ERASE , WRITE – OK

VVDI Prog Reviews:

2004 Suzuki Jimny:
The first job i did with this kit was actually a 2004 Suzuki Jimny, literally within around 30 – 45 minutes of the parcel being delivered. The software was quick and easy to install (No cd provided, need to download from dealer website and update to latest version).

Anyway, for the Suzuki i used the VVDI-prog with the EEPROM clip adapter to read the immobox 24c01 in-circuit. Then using the VVDI2 immobiliser data tool, i was able to create a dealer key with an Xhorse 4d/4c chip. Write the new dump back to the immobox with VVDI-prog, put it all back together and worked first time thankfully after previous failed attempts with other devices.
 Anyway end goal complete and happy with the new purchase

BMW EWS3:
I did some testing on the bench with a BMW EWS3 using VVDI2 with the CAS adapter cable (Needs external 12Vdc supply). It reads the EWS ok, but can’t write a file back to EWS.
 I will try reading the EWS3+ that is in my car and produce a dealer key for it.

The file change km’ seems to read from dump ok, and will allow you to modify file with new km (untested on car though). If i get some time later on will try read/write with VVDIprog.

VVDI Prog FAQs:

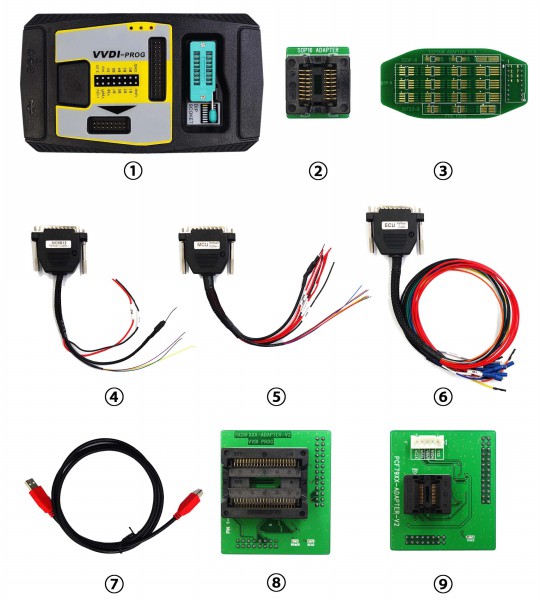

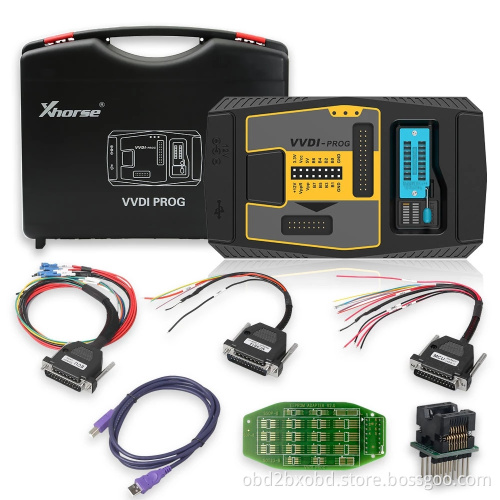

VVDI Prog Programmer Package List:

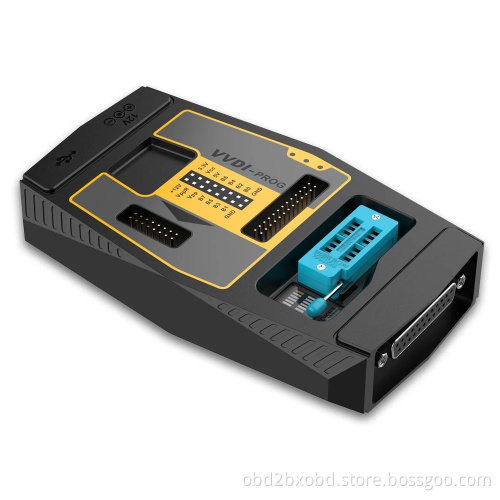

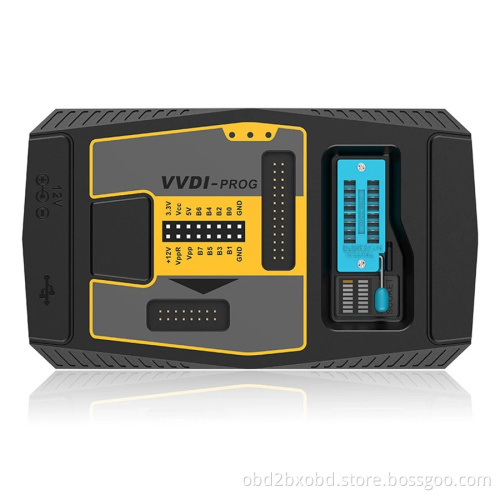

1. VVDI Prog device
2. EEPROM Socket

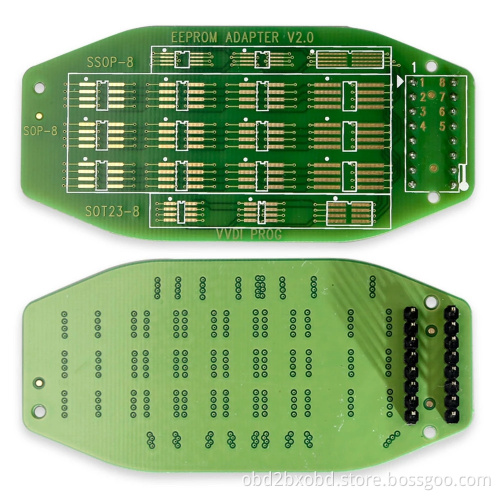

3. EEPROM Adapter
4. MC9S12 Reflash Cable V1
5. MCU Reflash Cable
6. ECU Reflash Cable
7. USB B-Tyte Cable
8. TB28FXXX Adapter (Optional)
9. PCF79XX Adapter (Optional)

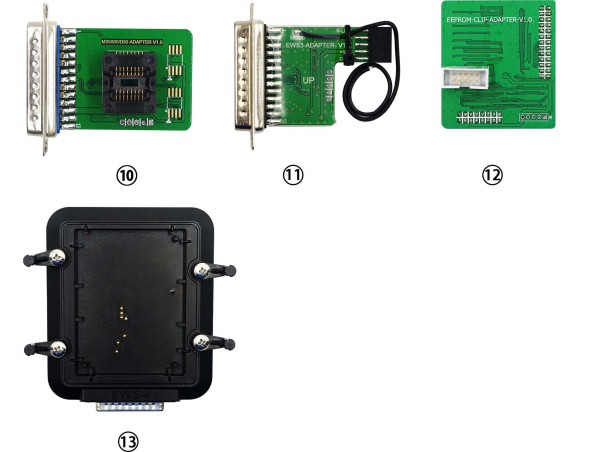

10. New M35080/D80 Adapter (Optional)
11. New EWS3 Adapter (Optional)
12. New EEPROM CLIP Adapter (Optional)
13. NewEWS4 Adapter (Optional)
