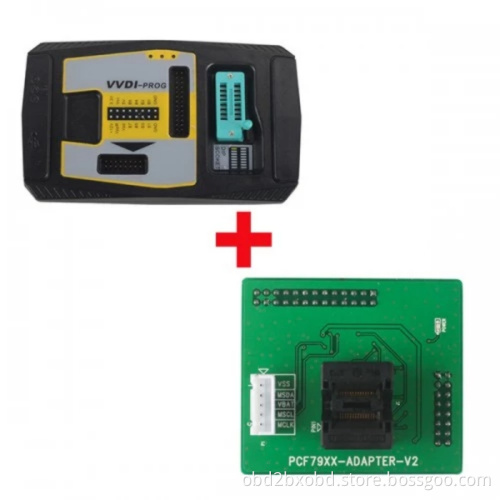

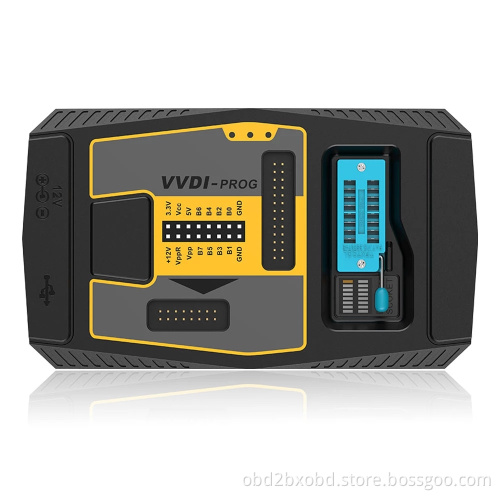

Original Xhorse VVDI PROG Programmer with PCF79XX Adapter
-
$479.001-4 Piece/Pieces
-
$477.005-9 Piece/Pieces
-
$474.00≥10 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now
Buy VVDI-Prog programmer, get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service
Support Multi-language now: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish & Chinese Simplified
Latest Software Version: V5.0.4
V5.0.4 VVDI Prog Update (2021-07-01)
+ Add PIC18XX25K80, PIC18XX26K80, PIC18XX45K80, PIC18XX46K80, PIC18XX65K80, PIC18XX66K80 options in <2-MCU>->< MICROCHIP-PIC18F>
+ Add MM9Z1I638_UNSECURED, MM9Z1J638_UNSECURED options in <2-MCU>->
+ Add MPC5514, MPC5515,MPC5516, MPC5517 options in<2-MCU>->
+ Add BENZ-W205_W207_W212 BCM option in <4-IMMOBILIZER>->
+ Add MISTRA-47-PKE-MOUDLE(2017) option in <4-IMMOBILIZER>->
+ Add 70-CHIP-IMMO-MOUDLE option in<4-IMMOBILIZER>->
+ Add HOWO-STRYKER-READ(2019), HOWO-STRYKER-WRITE(2019), options in <5-DASHBOARD>->
+ Add HAVAL-H6PRO-DASHBOARD(2017) option in <5-DASHBOARD>->
+ Add Bora(2015-2020)(D70F3423), JETTA(2015-2020)(D70F3423), SANTANA(2015-2020)(D70F3423), C-TREK(2015-2020)(D70F3423) options in <5-DASHBOARD>->
+ Add Lamando EPS(2018-)option in <8-OTHER>->
16Pin Locking Socket
Read the common EEPROOM, note: please insert the chip by following the below picture.
1.3.2 MCU Reflash Cable
Used to program MCU on board
1.3.3 ECU Reflash Cable
Used to program ECU
1.3.4 MC9S12 Reflash Cable
Used to program MC9S12 series chip
Supported chip list:
EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Can erase the first 32 bytes |
| M35080 | R | Can erase the first 32 bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
Note: R means the type is supported, £ means the type will be supported soon in the future
MCU
| Manufactures | Types | Support | Remark |
| MOTOROLA | MC9S12XEP | R | Can automatically determine D-FLASH/EEE space |
| MC9S12XA | R | ||
| MC9S12XB | R | ||
| MC9S12XD | R | ||
| MC9S12XDT | R | ||
| MC9S12XDP | R | ||
| MC9S12XDQ | R | ||
| MC9S12DG | R | ||
| MC9S12DT | R | ||
| MC9S12P | R | ||
| MC9S12H | R | ||
| MC9S12HY | £ | ||
| MC9S12HA | £ | ||
| MC9S12HZ | £ | ||
| MC9S12XHZ | £ | ||
| MC9S12B | £ | ||
| MC9S12GC | £ | ||
| MC9S12XS | £ | ||
| MC9S12K | £ | ||
| MC9S12Q | £ | ||
| MC9S12C | £ | ||
| MC9S12P | £ | ||
| MC9HC(9)08 | £ | ||
| ATMEL | ATTINY | £ | |
| ATMEGEA | £ | ||
| NEC | uPD70F | £ | |
| ST | TMS370 | £ |
Note: R means the type is supported £ means the type will be supported soon in the future.
ECU
| Manufactures | Types | Support | Remark |
| VAG | MED17.1-TC1796 | £ | |
| MED17.11-TC1796 | £ | ||
| VAG MEG17.5-TC1766 | £ | ||
| VAG MED17.5.1-TC1796 | £ | ||
| VAG MED17.5.2-TC1767 | £ | ||
| VAG MED17.5.5-TC1766 | £ | ||
| VAG MED17.5.20-TC1766 | £ | ||
| VAG EDC17 CP14/CP20-TC1796 | £ | ||
| VAG EDC17 CP04-TC1796 | £ | ||
| VAG EDC17 C46-TC1767 | £ | ||
| VAG EDC17 CP24-TC1796 | £ | ||
| VAG EDC17 CP44-TC1797 | £ | ||
| VAG EDC17 U01-TC1766 | £ | ||
| VAG EDC17 U05-TC1796 | £ | ||
|
VAG/Porsche Siemens Continental SDI 3-
TC1796 |
£ | ||
| BMW | MEVD172(N55) | R | |
| MEVD172P(N20) | R | ||
| MEVD172G(N55) | R | ||
| MEVD172S(N55) | R | ||
| MEVD1724(N20) | R | ||
| MEVD1725(N13) | R | ||
| MEVD1726(N55) | R | ||
| MEVD1729(N20) | R | ||
| MEVD1728(N63/S63) | R |
Note: R means the type is supported £ means the type will be supported soon in the future.

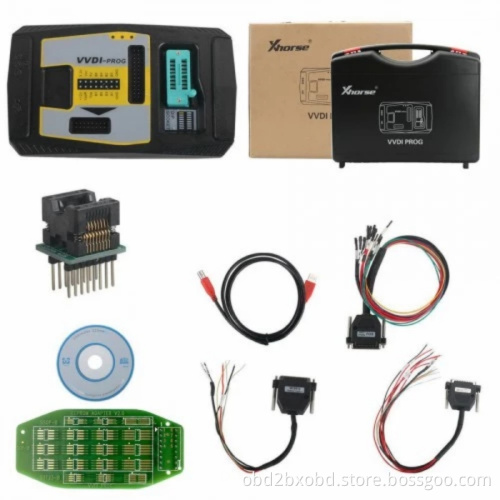

Package List:
| Parts | Number | Remark |
| Programmer multiplexer | 1 | |
| Square USB cable | 1 | |
| SOP16 test socket | 1 | |
| 16pin converter | 1 | Support SOP/SOT/SSOP |
| MCU reflash cable | 1 | |
| ECU reflash cable | 1 | |
| MC9S12 reflash cable | 1 | Used to program MC9S12 series chip |
| 12V3A power adapter | 1 | High quality power supply |

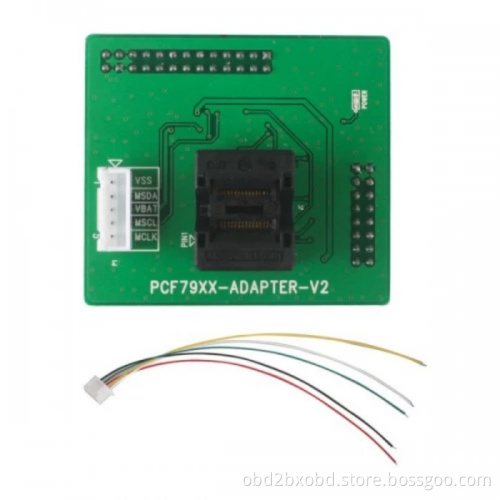

| PCF79XX-Adapter | 1 |
Shipping Method and Delivery Time:
US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
-
