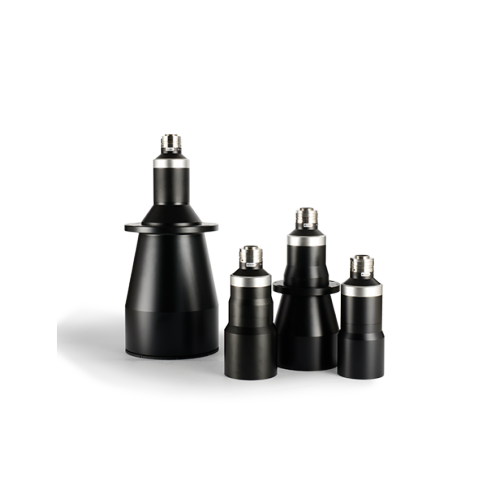

Low Mag 2/3' Sensor Telecentric Lens
-
$8000.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowMegapixels high-resolution c mount telecentric lens
Wide magnification ranges from 0.0282X to 0.5X
Bi-telecentric design and object telecentric system design
High resolution
Compact design
Short OI and high NA
Reduce hot spot for the coaxial type
C mount
Low Mag 2/3' Sensor Telecentric Lens Specification
|
Model |
Optical Size |
Sensor Length (mm) |
Sensor Width (mm) |
Diagonal (mm) |
FOV Length (mm) |
FOV Width (mm) |
Lens Length (mm) |
Max Diameter (mm) |
|
XF-5MDT05x178D |
2/3' |
8.45 |
7.07 |
11 |
16.9 |
14.1 |
218.6 |
52 |
|
XF-5MDTE03X65 |
2/3' |
8.45 |
7.07 |
11 |
28.2 |
23.6 |
114.4 |
49 |
|
XF-5MDTE04X110B |
2/3' |
8.45 |
7.07 |
11 |
21.1 |
17.7 |
139.1 |
56 |
|
XF-5MDT05X178 |
2/3' |
8.45 |
7.07 |
11 |
16.9 |
14.1 |
216 |
52 |
|
XF-5MDT05X65 |
2/3' |
8.45 |
7.07 |
11 |
16.9 |
14.1 |
102.1 |
36 |
|
XF-5MDT05X65D |
2/3' |
8.45 |
7.07 |
11 |
16.9 |
14.1 |
105.1 |
36 |
|
XF-PTL39011-C |
2/3' |
8.45 |
7.07 |
11 |
299.6 |
250.7 |
1046.7 |
430 |
|
XF-PTL35011-C |
2/3' |
8.45 |
7.07 |
11 |
268.3 |
224.4 |
826.4 |
376 |
|
XF-PTL31011-C |
2/3' |
8.45 |
7.07 |
11 |
238 |
199.2 |
754.2 |
340 |
|
XF-PTL26811-C |
2/3' |
8.45 |
7.07 |
11 |
205.6 |
172 |
687.9 |
300 |
|
XF-PTL23811-C |
2/3' |
8.45 |
7.07 |
11 |
182.9 |
153 |
629.3 |
270 |
|
XF-PTL19511-C |
2/3' |
8.45 |
7.07 |
11 |
149.6 |
125.1 |
481.2 |
222 |
|
XF-PTL18211-C |
2/3' |
8.45 |
7.07 |
11 |
140.8 |
117.8 |
454.8 |
210 |
|
XF-PTL15211-C |
2/3' |
8.45 |
7.07 |
11 |
116.6 |
97.5 |
406.9 |
180 |
|
XF-PTL13711-C |
2/3' |
8.45 |
7.07 |
11 |
105.6 |
88.4 |
367.8 |
166 |
|
XF-PTL12211-C |
2/3' |
8.45 |
7.07 |
11 |
93.9 |
78.6 |
359.8 |
166 |
|
XF-PTL11011-C |
2/3' |
8.45 |
7.07 |
11 |
84.5 |
70.7 |
321.1 |
130 |
|
XF-PTL09211-C |
2/3' |
8.45 |
7.07 |
11 |
70.4 |
58.9 |
271.9 |
120 |
|
XF-PTL08011-C |
2/3' |
8.45 |
7.07 |
11 |
61.2 |
51.2 |
247.1 |
104 |
|
XF-PTL06511-C |
2/3' |
8.45 |
7.07 |
11 |
50 |
41.8 |
212.5 |
90 |
|
XF-PTL05511-C |
2/3' |
8.45 |
7.07 |
11 |
42.3 |
35.4 |
196.8 |
79 |
|
XF-PTL04511-C |
2/3' |
8.45 |
7.07 |
11 |
34.6 |
29 |
153.9 |
70 |
|
XF-PTL03711-C-VI |
2/3' |
8.45 |
7.07 |
11 |
28.2 |
23.6 |
121.7 |
70 |
As a custom lens manufacturer, we will do our best to meet all the needs of customers.
