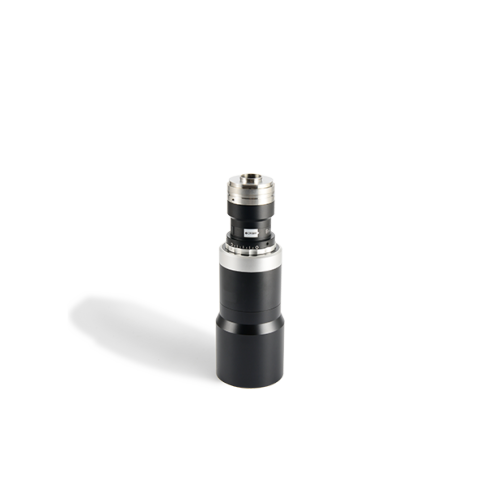

1.1' (18mm) Sensor Telecentric Lens
-
$8000.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowOptimized bi-telecentric lens for 1.1' 3.45um cameras
High mag and low mag of this series of machine vision telecentric lens are both available
High mag from 1X to 4X, bi-telecentric design, working distance from 65mm to 178mm. Built-in coaxial illumination is available. This series also has an excellent performance in high precision industry
Low mag from 0.504X to 0.0475X, bi-telecentric design, large aperature for high brightness. It can be widely applied in instant measurement
C mount
Specification Of High Mag 1.1' Sensor Telecentric Lens
Model Optical Size Sensor Length (mm) Sensor Width (mm) Diagonal (mm) FOV Length (mm) FOV Width (mm) Lens Length (mm) Max Diameter (mm)
|
Model |
Optical Size |
Sensor Length (mm) |
Sensor Width (mm) |
Diagonal (mm) |
FOV Length (mm) |
FOV Width (mm) |
Lens Length (mm) |
Max Diameter (mm) |
|
XF-10MDT1.5X110-1C |
1.1' |
14.2 |
10.4 |
17.6 |
9.5 |
6.9 |
182.5 |
50 |
|
XF-10MDT1.5X110D-1C |
1.1' |
14.2 |
10.4 |
17.6 |
9.5 |
6.9 |
182.5 |
50 |
|
XF-10MDT1X65-1C |
1.1' |
14.2 |
10.4 |
17.6 |
14.2 |
10.4 |
125.4 |
39 |
|
XF-10MDT1X65D-1C |
1.1' |
14.2 |
10.4 |
17.6 |
14.2 |
10.4 |
129.6 |
39 |
|
XF-10MDT1X110-1C |
1.1' |
14.2 |
10.4 |
17.6 |
14.2 |
10.4 |
151.5 |
50 |
|
XF-10MDT1X110D-1C |
1.1' |
14.2 |
10.4 |
17.6 |
14.2 |
10.4 |
151.5 |
50 |
|
XF-10MDT1X178-1C |
1.1' |
14.2 |
10.4 |
17.6 |
14.2 |
10.4 |
171 |
42 |
|
XF-10MDT1X178D-1C |
1.1' |
14.2 |
10.4 |
17.6 |
14.2 |
10.4 |
171 |
42 |
|
XF-10MDT2X65-1C-VI |
1.1' |
14.2 |
10.4 |
17.6 |
7.1 |
5.2 |
150.4 |
44 |
|
XF-10MDT2X65D-1C-VI |
1.1' |
14.2 |
10.4 |
17.6 |
7.1 |
5.2 |
150.4 |
44 |
|
XF-10MDT3X65-1C-VI |
1.1' |
14.2 |
10.4 |
17.6 |
4.7 |
3.5 |
158.4 |
44 |
|
XF-10MDT3X65D-1C-VI |
1.1' |
14.2 |
10.4 |
17.6 |
4.7 |
3.5 |
158.4 |
44 |
|
XF-10MDT4X65-1C-VI |
1.1' |
14.2 |
10.4 |
17.6 |
3.6 |
2.6 |
174.4 |
44 |
|
XF-10MDT4X65D-1C-VI |
1.1' |
14.2 |
10.4 |
17.6 |
3.6 |
2.6 |
174.4 |
44 |
To provide extensive optical solutions in machine vision optics systems, Canrill Optics, as a custom lens manufacturer, has been keeping developing, manufacturing and marketing telecentric lens for machine vision since 2009. In 2019 and 2020, Canrill Optics has successfully upgraded the telecentric lens to 4th generation PTL series and developed new series of non-telecentric Canrill lens.
