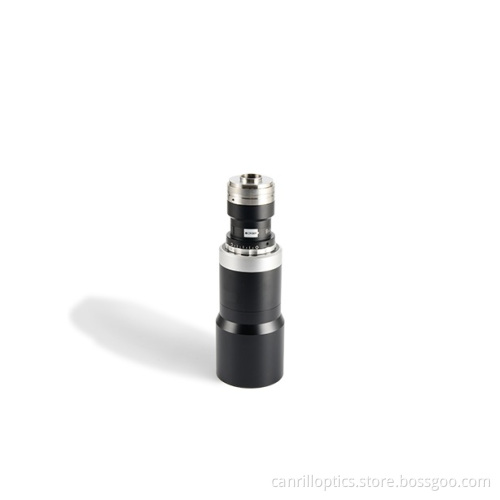

1.1' (18mm) Sensor Telecentric Lens

Optimized bi-telecentric canrill lens for 1.1' 3.45um cameras

High mag and low mag of this series of machine vision telecentric lens are both available

High mag from 1X to 4X, bi-telecentric design, working distance from 65mm to 178mm. Built-in coaxial illumination is available. This series also has an excellent performance in high precision industry

Low mag from 0.504X to 0.0475X, bi-telecentric design, large aperature for high brightness. It can be widely applied in instant measurement

C mount

Specification Of High Mag 1.1' Sensor Lens
Model Optical Size Sensor Length (mm) Sensor Width (mm) Diagonal (mm) FOV Length (mm) FOV Width (mm) Lens Length (mm) Max Diameter (mm)
XF-10MDT1.5X110-1C 1.1' 14.2 10.4 17.6 9.5 6.9 182.5 50
XF-10MDT1.5X110D-1C 1.1' 14.2 10.4 17.6 9.5 6.9 182.5 50
XF-10MDT1X65-1C 1.1' 14.2 10.4 17.6 14.2 10.4 125.4 39
XF-10MDT1X65D-1C 1.1' 14.2 10.4 17.6 14.2 10.4 129.6 39
XF-10MDT1X110-1C 1.1' 14.2 10.4 17.6 14.2 10.4 151.5 50
XF-10MDT1X110D-1C 1.1' 14.2 10.4 17.6 14.2 10.4 151.5 50
XF-10MDT1X178-1C 1.1' 14.2 10.4 17.6 14.2 10.4 171 42
XF-10MDT1X178D-1C 1.1' 14.2 10.4 17.6 14.2 10.4 171 42
XF-10MDT2X65-1C-VI 1.1' 14.2 10.4 17.6 7.1 5.2 150.4 44
XF-10MDT2X65D-1C-VI 1.1' 14.2 10.4 17.6 7.1 5.2 150.4 44
XF-10MDT3X65-1C-VI 1.1' 14.2 10.4 17.6 4.7 3.5 158.4 44
XF-10MDT3X65D-1C-VI 1.1' 14.2 10.4 17.6 4.7 3.5 158.4 44
XF-10MDT4X65-1C-VI 1.1' 14.2 10.4 17.6 3.6 2.6 174.4 44
XF-10MDT4X65D-1C-VI 1.1' 14.2 10.4 17.6 3.6 2.6 174.4 44
