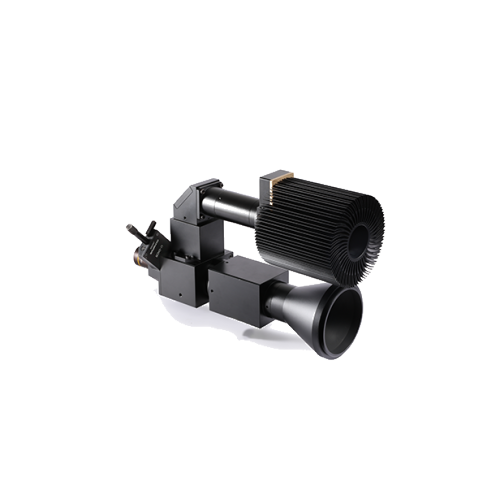

Telecentric Illuminator

$50.00 - $8000.00/Piece/Pieces

Min. Order:: 8000 Piece/Pieces

Min. Order:: 8000 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Supply Ability:	8000pcs/month

Product Description

Canrill Optics is a professional lens manufacturer. We provide Telecentric Lens, Telecentric Illuminator, Non-Telecentric Lens, non telecentric lens and so on. Want to know more? Please contact us. We have vision inspection technology, machine vision inspection systems, machine vision inspection / vision inspection and machine vision surface inspection service.

Telecentric illuminator is of great significance to the image processing system. Providing stable and reproducible illumination conditions, the telecentric illuminator produced by Canrill can help the image processing tools, such as our machine vision telecentric lens, to better capture the visual image of the object.

Better clarity and WBC, higher telecentricity

Especially suitable for round workpiece measurement

Specification Of Telecentric Illuminator

Model Focal Distance (MM) Rated Power (W) Rated Voltage (V) Max Current (MA) Output Light Diameter Φ (MM) WD (MM) WD Tolerance (±mm) Suggested Qualified Collimation (°) Preview (pdf)
XF-PTI020-(C) 100 3W 3V 1000mA 20 110 50 0.52
XF-PTI037-(C) 79.3 5W 24V 208mA 37 56 40 1.73
XF-PTI060-(C) 131.4 5W 24V 208mA 60 90 66 1.05
XF-PTI080-(C) 160.3 5W 24V 208mA 80 120 80 0.86
XF-PTI080-L90-(C) 160.3 5W 24V 208mA 80 120 80 0.86
XF-PTI100-L90-(C) 220.7 5W 24V 208mA 100 165 110 0.62
XF-PTI152-L90-(C) 418.992 5W 24V 208mA 152 419 209 0.33
XF-PTI195-L90-(C) 508.382 5W 24V 208mA 195 508 254 0.27
XF-PTI238-L90-(C) 753.723 5W 24V 208mA 238 751 377 0.18
