Automatic Clothes Folding Machine
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Supply Ability: | In stock |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | CE |
| HS Code: | HS8451500000 |
| Transportation: | Ocean |
| Port: | Shenzhen |
GENERAL DESCRIPTION

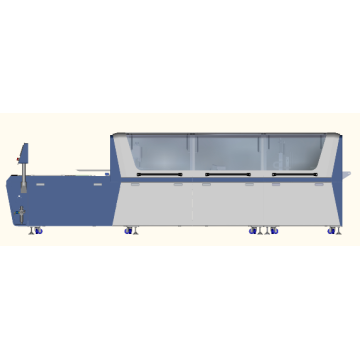

Automatic Folding Packing Machine 4350 .
As far as the operating process on the machine is concerned, it follows the steps given below:
1. Set up the garment folded size on control panel
2. Lay clothes at appointed area on machine
3. Start machine, paperboard/asphalt paper, desiccant will be placed into garment automatically.
4. Then machine folds the garment, makes polybag from membrane automatically, packs the garment into the bag and seals the bag finally all automatically.
For T Shirt Folding Machine，It has been developed in order to easily and efficiently attach paper, moisture proofing bead, or labels to the clothes or the plastic bags.The addition of label attaching makes it easy and efficient for work.
There are many optional programs for the operator to set for folding clothes under perssible limits.The machine will auto finish the number of clothes that the operator set for folding.If the quantity is over the set value,it will turn on caution light and alarm.
Automatic Folding Packing Machine 4350 has a folding capacity of 10-15pcs/min, or 500-600pcs/hour according to our test.
The output of a workday can achieve 6000pcs capacity.(The output depends on the operator's swiftness).
Following are the optional functions that can be obtained through the machine:
1. Automatic sealing by hot-melting (hot seal and hot cut or hot seal and cold cut)
2. Automatic stripping sticky tape and seal (tape wider than 0.8 cm)
3. Automatic sealing bag by adhesive tapes
4. Front and reverse folding function (can solve the problem of collar orientation)
5. Automatic placing of paperboard
6. Automatic paper wrapping
7. Automatic placing drying agent
8. Automatic falling into box after packing
9. Automatic making of flat opening bag (from the material of coil polybag)
10. Automatic making of pillow polybag (from the material of coil polybag)
11. Function that packs multiple pieces of garments into one bag
THCHNICAL SPECIFICATIONS
Dimensions L*W*H: 615*105*150cm
Single Phase Voltage source: 220VMaximum Power: 1.2 KW
Air pressure: 0.6 MPa
Maximum output: 600 foldings per hour.
Operator: 1 person
Length of pants: 40cm min & 120cm max
Width of final folding: 20cm min & 38cm max
Length of final folding: 20cm min & 40cm max
Bag dementions (L & W): 28*23 cm min 52*42 cm max
Sealing Way: Heat sealing/Adhensive type/Skicker (Optional)
CE
After-sale Services:
1.Manual， wiring diagrams and list of the spare parts of the machine are accompanied with Automatic Folding Packing Machine.
2.Video connection or files for installation,use and maintenance will be sent to your side.
3.The machine will have a 12-month warranty, which is in effect from the date of purchase of the machine.
During the warranty year if any of parts broken not by man-made. We will free charge to replace the new one to you.
4.The transportation cost from and to our company's seat, the insurance premiums and any other expenses which may arise during the transportation of the product burden the buyer.
5.Our engineers & technician are available for any services assistance to your seat if you agree pay the transportation expenditure.
6. LingChuang has an independent team for after-sale service.
Any emergency please call the saleman or our after-sale's manager.
If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
