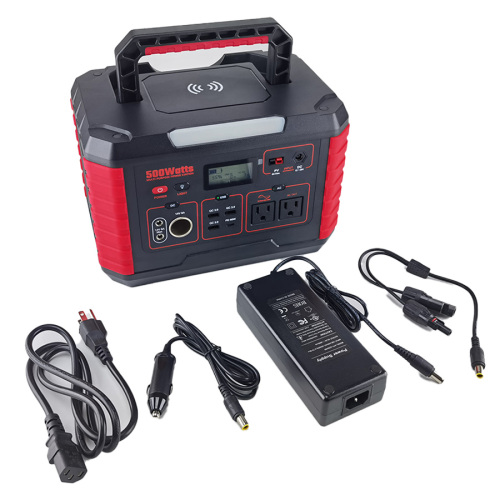

519Wh Pure Sine Wave Battery Pack outdoor fishing

Tired of being tied down by a shaky power supply while exploring outdoors? Let us introduce you to the 519Wh Pure Sine Wave Battery Pack outdoor fishing, which is undoubtedly the ideal companion for your fishing trips and other outdoor adventures. This portable power station has an efficient PCB Battery Protection Board, ensuring that you can enjoy a safe and stable power supply throughout the expedition.

Our protection board, wave-free power to your devices, ensuring optimal performance and perfectly compatible with a wide range of power needs, from smartphones and laptops to power tools and medical devices. With a large capacity of 519Wh, you can provide lasting and stable power support for all types of equipment without frequent charging.

1. Front panel control and digital display instructions

1.1 Switch function

Master switch: the master switch that controls each function of the product (except the lighting function). After the switch is pressed, the power display lights up and the wireless charging function is turned on.

DC key switch: control 14V DC5525, cigarette lighter, the key indicator lights up when the switch is turned on, and goes out after turning off.

USB key switch: control USB A and Type-c, the key indicator lights up when the switch is turned on, and turns off when the switch is turned off.

AC key switch: control reverse AC output, the key indicator lights up when the switch is turned on, and turns off when the switch is turned off.

Lighting key switch: control LED lighting, SOS warning light.

1.2  LCD display information

LCD display information: battery power, input power, output power (DC, USB, AC power)

1) After the charger is plugged into the DC charging port, the battery marquee will be displayed on the left side of the screen and the battery will be displayed, the screen "INPUT" will light up and the charging power will be displayed.

2) After the DC circuit is turned on, the "DC ON" of the digital tube lights up and displays the output power.

3) After the USB circuit is turned on, the "USB ON" of the digital tube lights up and displays the output power.

4) After the AC circuit is turned on, the "AC ON" of the digital tube lights up and displays the output power.

2.Portable energy storage power supply parameters

2.1 DC IN Input port parameters
