Product Description

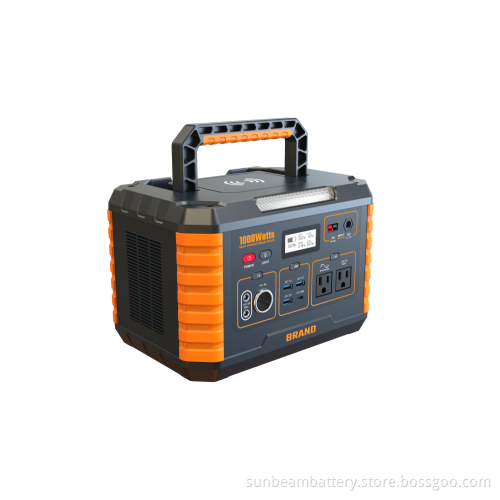

1000w portable power station supply Portable Power Bank quickly Charging Portable power station for power tool Portable power generation

using on Home emergency power supply, travel, Emergency relief, outdoor working Portable power station Portable generator Energy storage system solution LiFePO4 battery Portable Energy Storage Lithium Iron Phosphate battery and 1000w Portable Energy Storage etc.

1.Product Description

This product is a portable energy storage product, suitable for home emergency power backup, outdoor travel, emergency disaster relief, field work and other applications. This product has AC (110V/220V: 500W), USB (QC3.0, Type-C: PD60W), DC (DC5525: 14V/8A, cigarette lighter: 14V/8A) voltage output of different ports, and built-in 3W LED Lighting lamp and SOS alarm function, support 10W wireless charging function; the system is equipped with standard AC adapter 25V/4A to charge the system. You can also choose DC photovoltaic 18V/60-150W charging or DC car charger can also be used to charge the system.

2. Front panel control and digital display instructions

2.1 Switch function

Master switch: the master switch that controls each function of the product (except the lighting function). After the switch is pressed, the power display lights up and the wireless charging function is turned on.

DC key switch: control 14V DC5525, cigarette lighter, the key indicator lights up when the switch is turned on, and goes out after turning off.

USB key switch: control USB A and Type-c, the key indicator lights up when the switch is turned on, and turns off when the switch is turned off.

AC key switch: control reverse AC output, the key indicator lights up when the switch is turned on, and turns off when the switch is turned off.

Lighting key switch: control LED lighting, SOS warning light.

2.2 LCD display information

LCD display information: battery power, input power, output power (DC, USB, AC power)

1) After the charger is plugged into the DC charging port, the battery marquee will be displayed on the left side of the screen and the battery will be displayed, the screen "INPUT" will light up and the charging power will be displayed.

2) After the DC circuit is turned on, the "DC ON" of the digital tube lights up and displays the output power.

3) After the USB circuit is turned on, the "USB ON" of the digital tube lights up and displays the output power.

4) After the AC circuit is turned on, the "AC ON" of the digital tube lights up and displays the output power.

3.Portable energy storage power supply parameters

3.1 DC IN Input port parameters

Item	Min.	STD.	Max.	Remarks
Standard input voltage range	12Vdc	25Vdc	26Vdc	Standard 25V/4A adapter.
Input charging current	---	4A	6A	Max. :120W
PV input	---	18V	---	Max. Current: 6A
Input polarity reverse protection	---	Support	---	Cannot charge when the input is reversed, and the display does not display.

3.2 DC5525 Output port parameters

Item	Min.	STD	Max.	Remarks
Output voltage range	12Vdc	14Vdc	15Vdc
Rated output current	---	8A	---
Current limit protection	8.1A	9A	10A	If the output current exceeds this current limit, the output will be turned off. After the overcurrent is released, you need to manually press the DC switch to restore the output.
Short circuit protection	---	Yes	---	The output terminal and wire are short-circuited with external equipment, and the output port will stop output. When the short-circuit is removed, the output will be restored. The product will not cause a vicious event during the short-circuit process.
Note: Overload and short circuit are destructive tests, the time cannot exceed 3S, and continuous operation is not allowed.

3.3 Cigarette lighter output port parameters

Item	Min.	STD	Max.	Remarks
Output voltage range	12Vdc	---	15Vdc
Rated output current	---	8A	---
Current limit protection	8.1A	9A	10A	If the output current exceeds this current limit, the output will be turned off. After the overcurrent is released, you need to manually press the DC switch to restore the output.
Short circuit protection	---	Yes	---	The output terminal and wire are short-circuited with external equipment, and the output port will stop output. When the short-circuit is removed, the output will be restored. The product will not cause a vicious event during the short-circuit process.
Note: Overload and short circuit are destructive tests, the time cannot exceed 3S, and continuous operation is not allowed.

3.4 QC3.0 Output port parameters

Item	Min.	STD	Max.	Remarks
5V no-load output voltage	4.7V	5.0V	5.30V
5V full load output voltage	4.5V	5.0V	5.30V
5V rated output current	---	2.5A	---
9V no-load output voltage	8.70V	9V	9.3V
9V full-load output voltage	8.50V	9V	9.3V
9V rated output current	---	2.0A	---
12V no-load output voltage	11.7	12.3V	13
12V full-load output voltage	11.5	12V	12.5
12V rated output current	---	1.5A	---
Auto recognition	---	Yes	---	Output corresponding voltage and current according to different loads.
Note: Overload and short circuit are destructive tests, the time cannot exceed 3S, and continuous operation is not allowed；The short-circuit test can only be tested at 5V.

3.5 Type-C output port parameters（PD3.0/60W）

Item	Min.	STD	Max.	Remarks
5V no-load output voltage	4.5V	5V	5.7V
5V full-load output voltage	4V	5V	5.5V
5V rated output current	---	3A	---
9V no-load output voltage	8.5V	9V	9.7V
9V full-load output voltage	8V	9V	9.5V
9V rated output current	---	3A	---
12V no-load output voltage	11.5V	12V	12.7V
12V full-load output voltage	11V	12V	12.5V
12V rated output current	---	3A	---
15V no-load output voltage	14.5V	15V	15.7V
15V full-load output voltage	14V	15V	15.5V
15V rated output current	---	3A	---
20V no-load output voltage	19.5V	20V	20.5V
20V full-load output voltage	18V	20V	20.5V
20V rated output current	---	3A	---
Auto recognition	---	yes	---	Output corresponding voltage and current according to different loads.
Note: Overload and short circuit are destructive tests, the time cannot exceed 3S, and continuous operation is not allowed；The short-circuit test can only be tested at 5V.

3.6 AC output port parameters

Item	Min.	STD	Max.	Remarks
No-load output voltage	105Vac	110Vac	115Vac	American Standard,Japanese Standard
Load output voltage	99V	110V	121V	American Standard,Japanese Standard	DC：19.2-25.2V
No-load output voltage	215Vac	230Vac	240Vac	China Regulation/ European Regulation/ Australian Regulation
Load output voltage	198V	230V	245V	China Regulation/ European Regulation/ Australian Regulation	DC：19.2-25.2V
Output waveform	---	sine wave	---	Rated R load
Output frequency	59Hz	60Hz	61Hz	American Standard,Japanese Standard
Output frequency	49Hz	50Hz	51Hz	China Regulation/European Regulation/Australian Regulation
Rated output power	---	500W	---	Battery module rated input 20.4~25.2Vdc, Rated R load.
Output power factor	0.8	---	---	Battery module rated input 19.2~25.2Vdc, Rated R load.
Efficiency	85%	---	---	Average efficiency with R load at four points of load current 40%, 60%, 80%, 100%. (for reference only).
Short circuit protection	---	yes	---	If the output terminal, wire or external equipment is short-circuited, turn off the inverter output. The product should not be damaged during the short-circuit process, and the output needs to be restored manually.
Overload protection	510W	550W	590W	When the DC+USB+AC load power is greater than 1100W, the overload protection is triggered, the AC is turned off, and the DC and USB output are reserved (the rated input of the battery module is 20.4~25.2Vdc rated R load).
Inverter over temperature protection	85℃	---	---	Stop the inverter output after protection, and need to manually restore.
Note: Overload and short circuit are destructive tests, the time cannot exceed 3S, and continuous operation is not allowed.

3.7 LED lights, warning light parameters

Item	Min.	STD	Max.	Remarks
Lamp power	---	3W	---
Color temperature	2800K	3000k	3200K
Operating mode	Steady on: Short press the constant once, then short press once to close. SOS flashing: continuous short press twice to flash, short press once to turn it on, and then short press once to turn off.

3.8 Wireless charging parameters

Item	Min.	STD	Max.	Remarks
Power	---	10W	---	9V/1A

3.9 Energy storage battery pack parameters

Item	STD	Remarks
Rated voltage	22.2V	Optional according to customer requirements
Cell capacity	23.4Ah
Cell capacity	519.48wh
Cell resistance	≤40mΩ

3.10 System protection function

Item	Min.	STD	Max.	Remarks
Low battery alarm	18.9V	19.2V	19.5V	When the discharge voltage reaches a low battery alarm, the AC buzzer will sound.
Low power protection	18V	18.3V	18.6V	When the discharge voltage reaches the low telegram protection voltage, the product stops working.
Charging high temperature protection	45℃	50℃	55℃	If the battery cell temperature exceeds this range, it is prohibited to charge the battery.
Charging high temperature protection recovery	40℃	45℃	50℃	Automatic recovery.
Charging low temperature protection	-5℃	0℃	5℃	If the battery temperature is lower than or equal to 0°C, it is forbidden to charge the battery.
Charging low temperature protection recovery	0℃	5℃	10℃	Automatic recovery.
Discharge high temperature protection	60℃	65℃	70℃	If the cell temperature exceeds this value, discharging the battery is prohibited.
Discharge high temperature protection recovery	55℃	60℃	65℃	It cannot be restored automatically, you must press the button to restore.
Discharge low temperature protection	-10℃	-15℃	-20℃	It cannot be restored automatically, you must press the button to restore.
Discharge low temperature protection recovery	-15℃	-10℃	-5℃	It cannot be restored automatically, you must press the button to restore.

3.11 Shutdown self-consumption current and hibernation

Item	Standard	Remarks
Power consumption after shutdown	≤1mA
Master Switch	hibernation	＜5W，8H into dormancy
DC output	no hibernation
USB output	no hibernation
AC output	no hibernation

Note: In order to satisfy the low current power supply of low-power products and the charging and refrigeration appliances can start after the heat preservation state (no working current), so all output ports do not have the hibernation function, and any output port of the product should be closed when the output port is not in use. , When the battery is not in use, turn off the main switch to prevent the product from self-consumption (the main switch sleep is to turn off the power when it is not used for more than 8H).

4.Working environment parameters

Item	Min.	STD	Max.	Remarks
Operating temperature	0℃	---	40℃	Ambient temperature where the product works normally.
Storage temperature	-20℃	---	45℃	The product does not work within the storage temperature range and is suitable for storage.
Working humidity	10%	---	90%	Ambient humidity where the product works normally.
Storage humidity		---	45%	The product does not work within the storage humidity range and is suitable for storage.

Notes:

When the product is placed in a high temperature environment (40°C) for discharge. When the system detects that the temperature of the battery cell exceeds 65°C. To ensure the safe use of batteries, all output ports are closed. At this time, the battery cell will not discharge.

The product is placed in a low temperature environment (0℃) when charging. When the system detects that the temperature of the battery cell is lower than 0°C. To ensure the safe use of batteries, close the charging port and prohibit charging.

5.Dimession: 292x202x194mm

6.Aging requirements

The aging sequence during mass production is as follows: first fully charge, then discharge, and then charge 45%~65% of the power. The aging results need to be recorded.

7. Parts list

No	Item and Specification	QTY
1	Host	1
2	Product Manual	1
3	AC charger	1
4	Car charging cable	1

8.Charging instructions

The charging voltage should not exceed the maximum value specified in this specification. The design of the charger should meet the requirements of this specification. When the current and voltage range beyond the requirements of this specification are used, it may cause the charging and discharging performance, mechanical performance and Safety performance issues.

9.Precautions for storage

If the battery is stored for more than three months, please use the charger within the specified parameters to perform a charge and discharge cycle for the product.

10.Warnings and precautions

10.1 Do not put the product in water.

10.2 Do not heat the product or close to the fire source! Do not disassemble or modify the product without authorization! Do not hit the product forcefully! Otherwise, it may cause battery overheating, short circuit, fire or function failure, shortened life and other hazards.

10.3 It is forbidden to use or place the battery in high temperature (in the hot sun or in a very hot car), otherwise it may cause the battery to overheat, catch fire or function failure, and shorten the life.

10.4 It is forbidden to disassemble and install the battery.

10.5 It is forbidden to short-circuit the battery.

10.6 It is forbidden to use non-dedicated chargers to charge the battery, it will be dangerous.

10.7 Do not directly touch the leaking battery. The leaking electrolyte will cause skin discomfort. In case the electrolyte enters the eyes, rinse with clean water as soon as possible, do not rub the eyes, and promptly send to the hospital for medical treatment.
