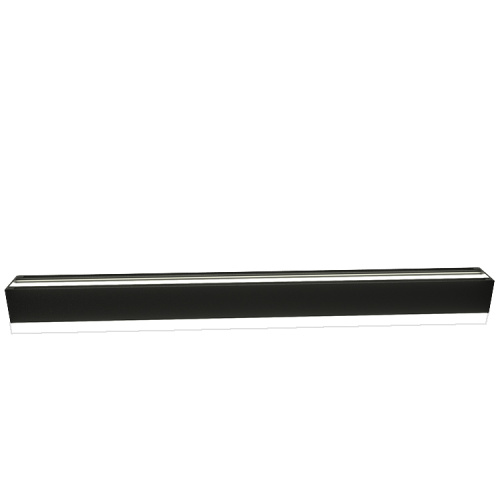

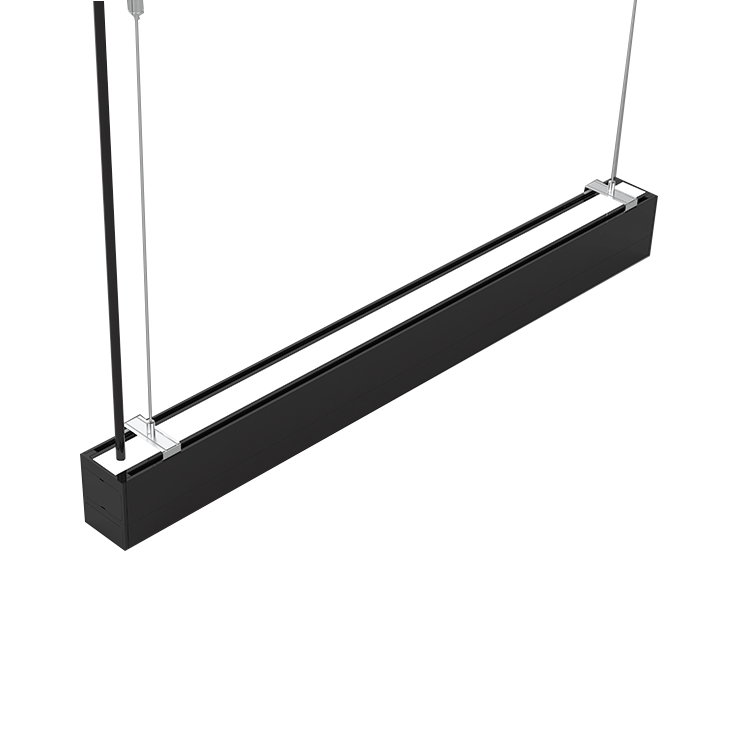

20W suspended linear lighting
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, train
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 30000 pieces/month |
| Supply Ability: | 3000 pieces/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE RoHs |
| HS Code: | 9405409000 |
| Transportation: | Ocean,Land,Air,Express,train |
| Port: | Shenzhen |
What is 120 beam angle mean?
The beam angle refers to the angle between the two vector diameters of the luminous intensity curve expressed in polar coordinates on a given plane. What is the 120° beam angle? You can take a look at our P Panel linear lights. Its beam angle is 120°. Of course there is also a 180° Linear Light. In fact, they just have different areas covered by light. The beam angle of normal led linear light is 120° and 180°.
Like Lens Linear Light, it uses optical materials to make the angle 90°, 30°, 60°.
In residential spaces, museums, exhibition halls and other places, it is often necessary to use lights to create a three-dimensional impression of exhibits or artworks, and the beam angle has an indispensable weight in creating the three-dimensional impression of objects.
Magnetic track downlights are very suitable. With different beam angles, you can also rotate the angle. Moreover, it is a low-voltage rail, and its safety is guaranteed.
Up and Down Linear Light
This lamp can emit light on both sides, and the ratio of light up and down is 3:7. The light-emitting angle of the upper is 120°, and the lower light-emitting surface has two angles to choose from: 120° and 180°.
The up and down lighting design is to make your ceiling no longer lonely, no longer dark.
Create a good atmosphere for shops, offices, parking lots, shopping malls and other places.

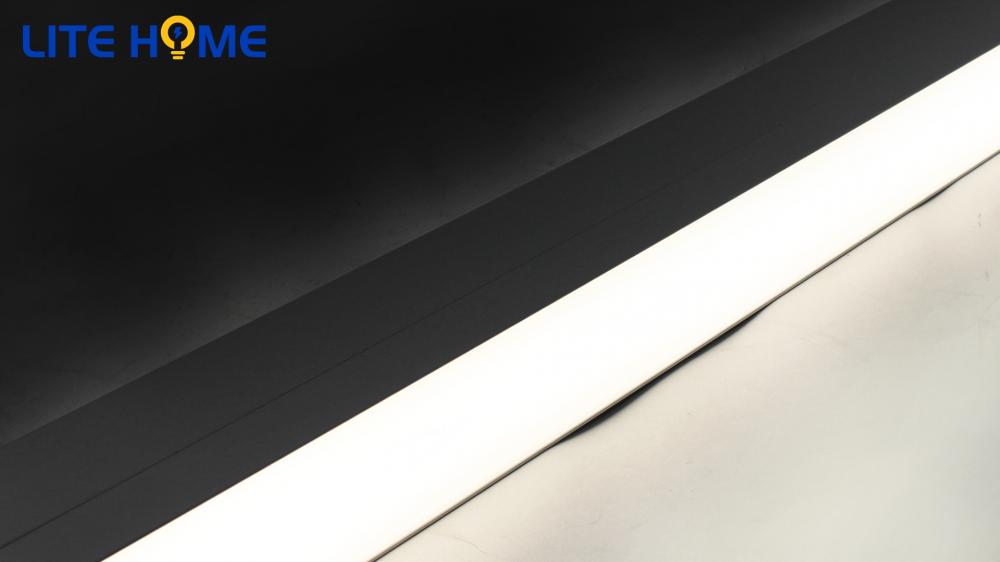

Our lights can be seamlessly spliced. It can realize that there is no dark area when lighting, and the light is very uniform.
The body of this series of linear lights can be opened. It is very convenient when you install lamps in series. Another advantage is that the shell can be reused. After 8 years, the Light can be replaced without replacing the shell, only the power supply and light source need to be replaced. More environmentally friendly.
Our products will not be easily blown by the wind when they are hoisted, they are very texture and weighty.
There are DALI dimming and 0/1-10V dimming to choose from.
|
Code No. |
Beam angle |
Size |
Dimming Type |
Power |
Lumen |
|
LH-LIAO2-020 |
180° |
600*63*80mm |
No/DALI/0-10V |
20W(6W+14W) |
100-120lm/w |
|
LH-LIAO3-030 |
180° |
900*63*80mm |
No/DALI/0-10V |
30W(9W+21W) |
100-120lm/w |
|
LH-LIAO4-040 |
180° |
1200*63*80mm |
No/DALI/0-10V |
40W(12W+28W) |
100-120lm/w |
|
LH-LIAO5-060 |
180° |
1500*63*80mm |
No/DALI/0-10V |
60W(18W+42W) |
100-120lm/w |
|
LH-LIAO6-080 |
180° |
1800*63*80mm |
No/DALI/0-10V |
80W(24W+56W) |
100-120lm/w |
|
LH-LIAO8-100 |
180° |
2400*63*80mm |
No/DALI/0-10V |
100W(30W+70W) |
100-120lm/w |
| LH-LIAD2-020 |
120° |
600*63*80mm |
No/DALI/0-10V |
20W(6W+14W) |
100-120lm/w |
| LH-LIAD3-030 |
120° |
900*63*80mm |
No/DALI/0-10V |
30W(9W+21W) |
100-120lm/w |
|
LH-LIAD4-040 |
120° |
1200*63*80mm |
No/DALI/0-10V |
40W(12W+28W) |
100-120lm/w |
|
LH-LIAD5-060 |
120° |
1500*63*80mm |
No/DALI/0-10V |
60W(18W+42W) |
100-120lm/w |
|
LH-LIAD6-080 |
120° |
1800*63*80mm |
No/DALI/0-10V |
80W(24W+56W) |
100-120lm/w |
|
LH-LIAD8-100 |
120° |
2400*63*80mm |
No/DALI/0-10V |
100W(30W+70W) |
100-120lm/w |
