What is led trunking system?

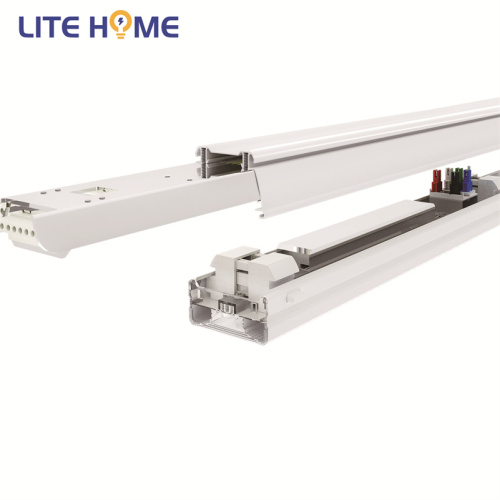

The LED Linear Trunking System have an integrated cable-free system called trunking, which is pre-wired in the factory. The trunking can be seamlessly spliced, and the installation of the trunking does not require additional wiring and purchase additional materials. Therefore, it can greatly shorten the construction period, reduce installation costs, labor costs, and auxiliary materials costs.

There are a variety of modules in the LED Trunking System. Such as; track module, motion sensor module, emergency module, socket module, and lighting module. Various modules can be installed flexibly according to your needs. In addition, various modules can be pieced together into various shapes through L/T/X connectors. It is very suitable for Supermarket Lighting and Retail Lighting.

The discription of all types of LED Trunking light.

3 wires Trunking: N, L, E. (Basic Lighting)

5 wires Trunking:

(1)L1, L2, L3, N, E (Basic Lighting)

(2)L,N,E, (Basic Lighting)+ Dimming

(3)L,N,E (Basic Lighting)+ Sensor

7 wires Trunking:

(1)L,N,E (Basic Lighting)+ Sensor/Diming + Built-in Battery Emergency

(2)L1,L2,L3,N,E (Basic Lighting)+ Sensor/Diming

(3)L1,L2,N,E (Basic Lighting)+ Sensor/Diming+ Built-in Battery Emergency

8 wires Trunking:

(1)L1,L2,L3,N,E (Basic Lighting)+ Sensor/Diming+ Built-in Battery Emergency

(2)L1,L2,N,E (Basic Lighting)+ Sensor+ Diming

(3)L,N,E (Basic Lighting)+ Sensor+ Diming+ Built-in Battery Emergency

11 wires Trunking:

(1)L1,L2,L3,N,E (Basic Lighting)+ Sensor/Diming+ 2xUPS Emergency
