Ortur laser engraving machine for wood glass acrylic

Ortur laser engraving machine for wood glass acrylic

$188.99

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Express

Port:: Donggguan

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000 sets per month
Supply Ability:	10000 sets per month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE, FCC
HS Code:	8456110090
Transportation:	Express
Port:	Donggguan

Product Description

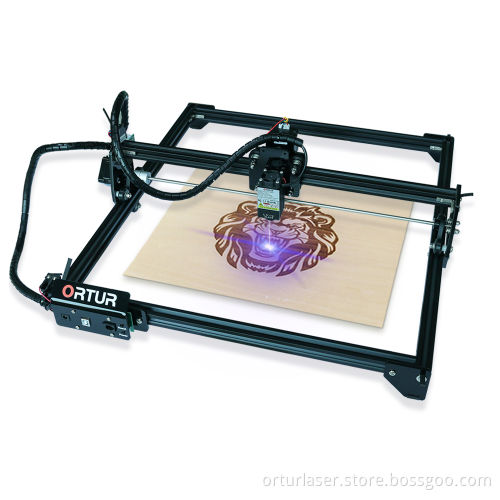

Upgrade Version DIY Ortur Laser Master 2 Laser Engraving Machine GRBL Control Mini Print Logo Picture Laser Engraving Machine

Features

●Specialized Motherboard with STM32 MCU
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 - S1000
● Engraving speed could be as high as 3000MM/Min.
●Active Position Protection
●Laser Beam Safety Guard
●Exposure Duration Detection and Limitation
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10.
● LightBurn (not free software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It's the most popular paid carving software in the world, very easy to use.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 - 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving.

Brief Introduction:

● The Laser Master 2 - 7W (LU1-2) is good at picture engraving.
● The Laser Master 2 - 15W (LU1-3) is the most cost-effective, available for both engraving and cutting.
● The Laser Master 2 - 20W (LU1-4) is higher power and supports a faster engraving and cutting.

Ortur Laser Master 2-7W

Ortur Laser Master 2-15W

Ortur Laser Master 2-20W

PRODUCT SPECIFICATIONS

No	Item	Data
1	LU1-2	Electric Power 7W, Luminous Power 1200-1600MW
2	LU1-3	Electric Power 15W, Luminous Power 4000-4500MW
3	LU1-4	Electric Power 20W, Luminous Power 5000-5500MW
4	Baud Rate	115200-921600（default 115200)
5	Available Materials for Engraving	Wood, Paperboard, Acrylic, Leather, Some Plastic, Power Coated Metal, Coated Glass, Stone, Ceramic
6	Available Materials for Cutting	Kraft Paper, Paper Board, Thin Plywood, KT board, Felt Cloth, Leather, etcs
7	Computer OS	Win XP, Win7, Win8, Win 10(LaserGRBL) Max and Linux(LightBurn)
8	Default Focus Length	58$55mm(from the heat sink to the object)
