CP500M/CP500SW
-
$40.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 500,000PCS |
|---|---|
| Payment Type: | T/T,L/C |

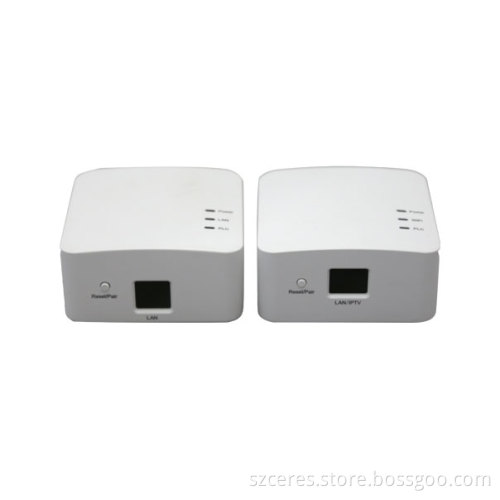

Plug the CP500M wifi extender into the wall outlet, the network signal is transmitted through the power line. Plug the CP500SW wifi extender into other sockets in the home to access the local area network and the wireless signal can be released. Power line transmission rate up to 500Mbps, the wireless rate can reach 300Mbps, which is comparable to traditional network cable effects, and there is no need to worry about wiring problems or obstacles blocking wireless signals. Meet high-bandwidth application requirements such as online video and online games anytime, anywhere. As one of the best wireless network companies, Ceres can provide different kinds of wifi extenders. If you have any demand for 300mbps av200 wifi powerline extender starter kit, please feel free to contact us.
|
Parameters and Specification of CP500M Wi-Fi Extender |
||
|
Parameter |
Specification of CP500M Wi-Fi Extender |
|
|
PLC Characteristic |
Standard |
IEEE 1901, HomePlugAV |
|
|
Frequency |
2MHz—68MHz |
|
|
Transmission distance |
300m |
|
|
Power line physical layer rate |
500Mbps |
|
|
Modulation |
OFDM, QAM, DQPSK, DBPSK |
|
|
Encryption mode |
AES-128 |
|
Button and Interface |
1*Reset button, compatible with a pairing function 1*100Mbps Ethernet interface, RJ45 |
|
|
Ethernet Interface Characteristic |
Fully compatible with IEEE802.3/802.3u protocol 10Base-T & 100Base-TX Full/half-duplex mode Auto MDI/MDIX |
|
|
Indicator |
Power: power light LAN: network interface light PLC: link status light |
|
|
Consumption |
< 3W |
|
|
Environmental Parameters |
||
|
Operating Temperature |
0℃—40℃ |
|
|
Storage Temperature |
-20℃—70℃ |
|
|
Operating Humidity |
10%—90%(Non-condensing) |
|
|
Storage Humidity |
5%—95%(Non-condensing) |
|
|
Power |
100VAC~240 V AC, 0.15A, 50/60Hz |
|
|
Physical Characteristic |
||
|
Dimension |
L x W x H: 70mm x 70mm x 38mm |
|
|
Weight |
60 g |
|
|
Parameter |
Specification of CP500M Wi-Fi Extender |
|
|
PLC Characteristic |
Standard |
IEEE 1901, HomePlugAV |
|
|
Frequency |
2MHz—68MHz |
|
|
Transmission distance |
300m |
|
|
Power line physical layer rate |
500Mbps |
|
|
Modulation |
OFDM, QAM, DQPSK, DBPSK |
|
|
Encryption mode |
AES-128 |
|
Wi-Fi Characteristic |
Standard |
IEEE802.11b/g/n |
|
= |
Frequency |
2.4GHz |
|
= |
Wireless data rate |
300Mbps |
|
= |
Transmission distance |
100m indoor environment 300m outdoor open environment |
|
= |
Encryption mode |
WPA-PSK、WPA2-PSK |
|
Button and Interface |
1*Reset button, compatible with a pairing function 1*100Mbps Ethernet interface, RJ45 |
|
|
Ethernet Interface Characteristic |
Fully compatible with IEEE802.3/802.3u protocol 10Base-T & 100Base-TX Full/half-duplex mode Auto MDI/MDIX |
|
|
Indicator |
Power: power light WiFi: WiFi light PLC: link status light |
|
|
Consumption |
＜5W |
|
|
Environmental Parameters |
||
|
Operating Temperature |
0℃—40℃ |
|
|
Storage Temperature |
-20℃—70℃ |
|
|
Operating Humidity |
10%—90%(Non-condensing) |
|
|
Storage Humidity |
5%—95%(Non-condensing) |
|
|
Power |
100VAC~240 V AC, 0.15A, 50/60Hz |
|
|
Physical Characteristic |
||
|
Dimension |
L x W x H: 70mm x 70mm x 38mm |
|
|
Weight |
120 g |
|
As a reliable wireless network manufacturer, we provide 300mbps av200 wifi powerline extender starter kit, kit powerline wireless, extend wifi through power lines, av200 wifi powerline extender, 300mbps av600 wifi powerline extender and etc. Want to know more. Contact us, we will try our best to meet the needs of all customers.
