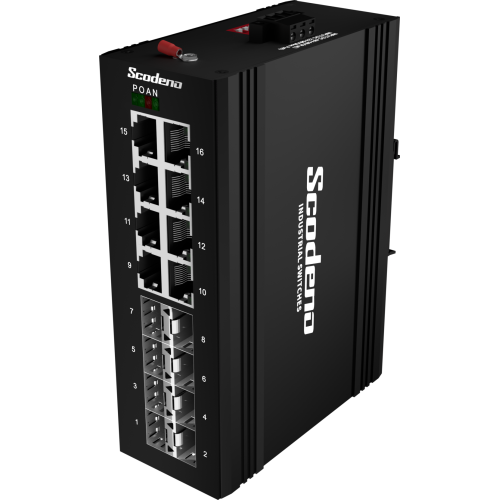

8xSFP and 8xRJ45 Industrial Fast Media Converter Switches

Product Description:

The equipment is 8*1000M Base-X, 8*10/100/1000 Base-T Managed Industrial Ethernet fast switch, through the fanless cooling circuit design, wide range working environment temperature, high protection level and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality, and integrated switching, safety and various rich protocols, simultaneously supported The public Ethernet multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

Main Features:

Input Voltage: DC12~58V(Non-PoE), DC48~58V(PoE)

Operating Temperature: -40℃ ~ +75℃

Shell: IP40 protection, fanless design

Test Report: CCC, RoHS, FCC, CE

Anti-static: 8KV-15KV

MTBF: 100000 Hours

PRODUCT PARAMETERS

Provider Mode Ports
Fixed port	81000 Base-X，810/100/1000Base-T
Power interface	Phoenix terminal, redundant dual power supply
LED Indicators	PWR，Link/ACT LED

Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode optical fiber	20/40/60/80/100KM
Multimode (optical) fiber	550m

Network Topology
Ring topology	Unsupported
Star topology	Support
Bus topology	Support
Tree Topology	Support
Hybrid topology	Support

Electrical Specifications
Input voltage	DC12-58V（Non-PoE）, DC48~58V(PoE)
Total Power consumption	<26W(Non-PoE); <386W(PoE)

PoE Support
PoE port	1~16
PoE Protocol	802.3af，802.3at
Pin Assignment	12+, 36-

Layer 2 Switching
Switching capacity	68G
Packet forwarding rate	50.59Mpps
MAC address table	16K
Buffer	12M
Forwarding delay	<10us
MDX/MIDX	Support
Flow control	Support
Jumbo Frame	Support 10K Bytes

Environment
Operating temperature	-40℃~+75℃ The device is tested for 4 hours at temperatures in 85℃
Storage temperature	-40℃~+85℃
Relative humidity	5%~95% non-condensing
Thermal methods	Fanless, natural cooling
MTBF	100,000 hours

Mechanical Dimensions
Product size	94104143mm
Installation Method	DIN rail
Weight	1KG around

EMC & Ingress Protection
IP Level	IP40
Surge protection of Power	IEC 61000-4-5 Level X（6KV/6KV）（8/20us）
Surge protection of Ethernet port	IEC 61000-4-5 Level X（4KV/4KV）（10/700us）
RS	IEC 61000-4-3 Level 3（10V/m）
EFI	IEC 61000-4-4 Level 3（1V/2V）
CS	IEC 61000-4-6 Level 3（10V/m）
PFMF	IEC 61000-4-8 Level 4（30A/m）
DIP	IEC 61000-4-11 Level 3 （10V）
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free fall	0.5m

Authentication
Authentication	CCC, CE, FCC, RoHS

Accessories
Accessories	Device, Terminals, Specification, Certificate, power adapter(optional)

Optional model
XPTN-9000-65-8GX8GT	21000Mbps SFP Port 1610/100/1000Mbps RJ45 Port
XPTN-9000-65-8GX8GP	21000Mbps SFP Port 1610/100/1000Mbps RJ45 Port, PoE & PoE+
XPTN-9000-65-8GX8GPB	21000Mbps SFP Port 1610/100/1000Mbps RJ45 Port, PoE & PoE+, 2 Port support++
