2 Gigabit and 16 RJ45 Ports Industrial Fast Ethernet Switch

2 Gigabit and 16 RJ45 Ports Industrial Fast Ethernet Switch

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

HS Code:	8517622990

Product Description

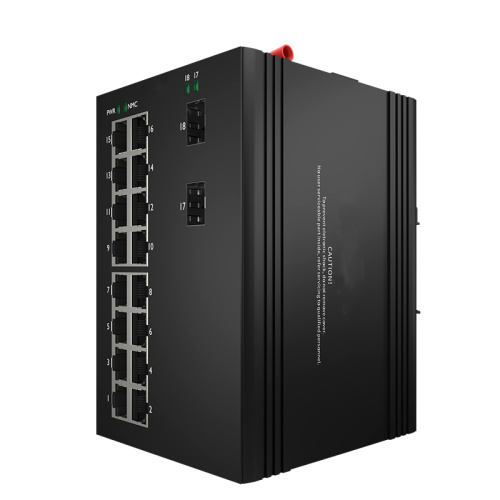

2 Gigabit and 16 RJ45 Ports Industrial Fast Ethernet Switch

Product Description:

This device is 4*1000Base-X & 16*10/100/1000Base-T Industrial Ethernet PoE Switches. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

Main Features:

Input Voltage: DC12~58V(Non-PoE), DC48~58V(PoE)

Operating Temperature: -40℃ ~ +75℃

Shell: IP40 protection, fanless design

Test Report: CCC, RoHS, FCC, CE

Anti-static: 8KV-15KV

MTBF: 100000 Hour

PRODUCT PARAMETERS

Provider Mode Ports

Fixed port

4*1000 Base-X， 16*10/100/1000Base-T

Power interface

Phoenix terminal, redundant dual power supply

LED Indicators

PWR，Link/ACT LED

Cable Type & Transmission Distance

Twisted-pair

0-100m（CAT5e,CAT6）

Monomode optical fiber

20/40/60/80/100KM

Multimode (optical) fiber

550m

Network Topology

Ring topology

Unsupported

Star topology

Support

Bus topology

Support

Tree Topology

Support

Hybrid topology

Support

Electrical Specifications

Input voltage

DC12-58V（Non-PoE）, DC48~58V(PoE)

Total Power consumption

<26W(Non-PoE); <386W(PoE)

PoE Support (Optional)

PoE port

1~16

PoE Protocol

802.3af，802.3at

Pin Assignment

12+, 36-

PoE++ Support (Optional)

PoE Port

1-16

PoE Protocol

802.3af，802.3at，802.3bt ( Port 1 & Port 2 support 90W per port)

Pin Assignment

1245+, 3678-

Layer 2 Switching

Switching capacity

68G

Packet forwarding rate

50.59Mpps

MAC address table

16K

Buffer

12M

Forwarding delay

<10us

MDX/MIDX

Support

Flow control

Support

Jumbo Frame

Support 10K Bytes

Environment

Operating temperature

-40℃~+75℃

The device is tested for 4 hours at temperatures in 85℃

Storage temperature

-40℃~+85℃

Relative humidity

5%~95% non-condensing

Thermal methods

Fanless, natural cooling

MTBF

100,000 hours

Mechanical Dimensions

Product size

94*104*143mm

Installation Method

DIN rail

Weight

1KG around

EMC & Ingress Protection

IP Level

IP40

Surge protection of Power

IEC 61000-4-5 Level X（6KV/6KV）（8/20us）

Surge protection of Ethernet port

IEC 61000-4-5 Level X（4KV/4KV）（10/700us）

RS

IEC 61000-4-3  Level 3（10V/m）

EFI

IEC 61000-4-4 Level 3（1V/2V）

CS

IEC 61000-4-6 Level 3（10V/m）

PFMF

IEC 61000-4-8 Level 4（30A/m）

DIP

IEC 61000-4-11  Level 3 （10V）

ESD

IEC 61000-4-2 Level 4（8K/15K）

Free fall

0.5m

Authentication

Authentication

CCC, CE, FCC, RoHS

Accessories

Accessories



Device, Terminals, Specification, Certificate, power adapter(optional)

Optional model

XPTN-9000-65-4GX16GT

4*1000Mbps SFP Port

16*10/100/1000Mbps RJ45 Port

XPTN-9000-65-4GX16GP

4*1000Mbps SFP Port

16*10/100/1000Mbps RJ45 Port, PoE & PoE+

XPTN-9000-65-4GX16GPB

4*1000Mbps SFP Port

16*10/100/1000Mbps RJ45 Port, PoE & PoE+,

2 Port support++

5tx 9 5tx 6 Production Process 5tx 5 Package And Shipping Png 5tx 3

5tx 12

5tx 11 Hot Sales 2

FAQ :

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
