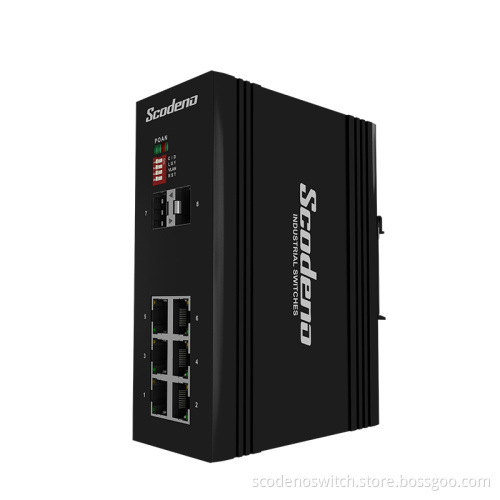

2 Gigabit SFP 6 Rj45 PoE industrial ethernet switch

2 Gigabit SFP 6 Rj45 PoE industrial ethernet switch

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China
Productivity:	1000000pcs/Month
Supply Ability:	1000000/Month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,Express Delivery
Certificate:	ISO9001,CCC,FCC, CE, RoHS
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Product Description

OEM/ODM Supplier 100Mbps IP40 2+6 Ports Industrial Ethernet Network Switch

Product Description:

This device is 2*1000Base-X 6*10/100/1000Base-T Industrial Ethernet PoE Switches. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

Main Features:

Input Voltage: DC12~58V(Non-PoE), DC48~58V(PoE)

Operating Temperature: -40℃ ~ +75℃

Shell: IP40 protection, fanless design

Test Report: CCC, RoHS, FCC, CE

Anti-static: 8KV-15KV

MTBF: 100000 Hour

PRODUCT PARAMETERS

Provider Mode Ports
Fixed port	21000Base-X 610/100/1000Base-T
Power interface	Phoenix terminal, redundant dual power supply
LED Indicators	PWR，OPT ,NMC，ALM

DIP Switch
1 C/D	Reserve
2 LGY	Stand/Non-standard PoE Mode
3 VLAN	Port Isolation
4 RST	Reset

Cable Type & Transmission Distance
Twisted-pair	0-100m（CAT5e,CAT6）
Monomode optical fiber	/
Multimode (optical) fiber	/

Network Topology
Ring topology	Unsupported
Star topology	Support
Bus topology	Support
Tree Topology	Support

Electrical Specifications
Input voltage	DC12-58V(Non-PoE), DC48~58V(PoE)
Total Power consumption	<6W(Non-PoE); <126W(PoE)
Voltage Alarm	Support

PoE Support
PoE port	1~6
PoE Protocol	802.3af，802.3at
Pin Assignment	1,2,3,6
PoE Mode	Standard & non-standard are supported

Layer 2 Switching
Switching capacity	36G
Packet forwarding rate	25.78Mpps
MAC address table	8K
VLAN	Unsupported
Buffer	1M
Forwarding delay	<5us
MDX/MIDX	Support
Flow control	Support
Jumbo Frame	Support 10K Bytes
WatchDog	Support
Port Isolation	Support

Environment
Operating temperature	-40℃~+75℃ The device is tested for 4 hours at temperatures in 85℃
Storage temperature	-40℃~+85℃
Relative humidity	5%~95% non-condensing
Thermal methods	Fanless, natural cooling
MTBF	100,000 hours

Mechanical Dimensions
Product size	143X104X48mm
Installation Method	DIN rail
Weight	0.45KG around

EMC & Ingress Protection
IP Level	IP40
Surge protection of Power	IEC 61000-4-5 Level X（6KV/6KV）（8/20us）
Surge protection of Ethernet port	IEC 61000-4-5 Level X（4KV/4KV）（10/700us）
RS	IEC 61000-4-3 Level 3（10V/m）
EFI	IEC 61000-4-4 Level 3（1V/2V）
CS	IEC 61000-4-6 Level 3（10V/m）
PFMF	IEC 61000-4-8 Level 4（30A/m）
DIP	IEC 61000-4-11 Level 3 （10V）
ESD	IEC 61000-4-2 Level 4（8K/15K）
Free fall	0.5m

Authentication
Authentication	CCC, CE, FCC, RoHS

Accessories
Accessories	Device, Terminals, Specification, Certificate, power adapter(optional)

Optional model
XPTN-9000-65-2GX6GT	21000Base-X 610/100/1000Mbps RJ45 Port
