Product Description

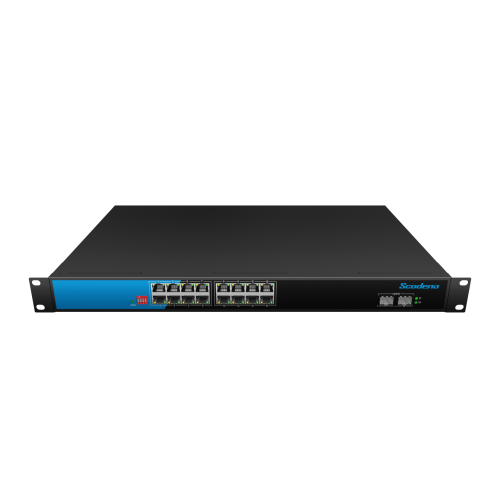

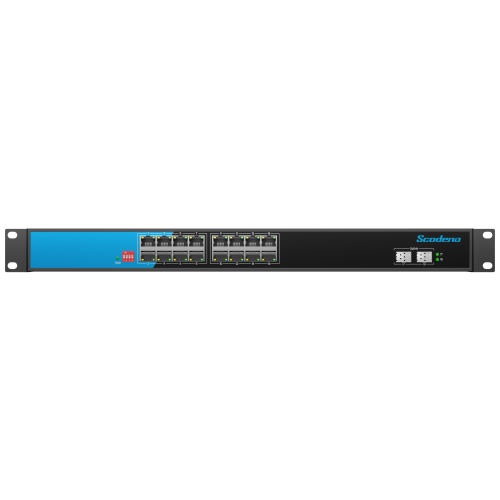

S200-18GP-S2-AC model unmanaged Poe Switches, 2*1000Base-X+16*10/100/1000Base－T Ports. ,all support PoE. All network ports support MDI/MDIX auto-flip and wire-speed forwarding. The store-and-forward method is adopted to provide stable and reliable data transmission.

Model Number	S200-18GP-S2-ACR
Manage	None Managed
Switch Chipset	Realtek, None blocking structure design
PoE	Support PoE
Housing	Metal
Ports	16X10/100/1000Mbps RJ45
Ports	2X10/100/1000Mbps SFP
PoE Standard	IEEE802.3af/at

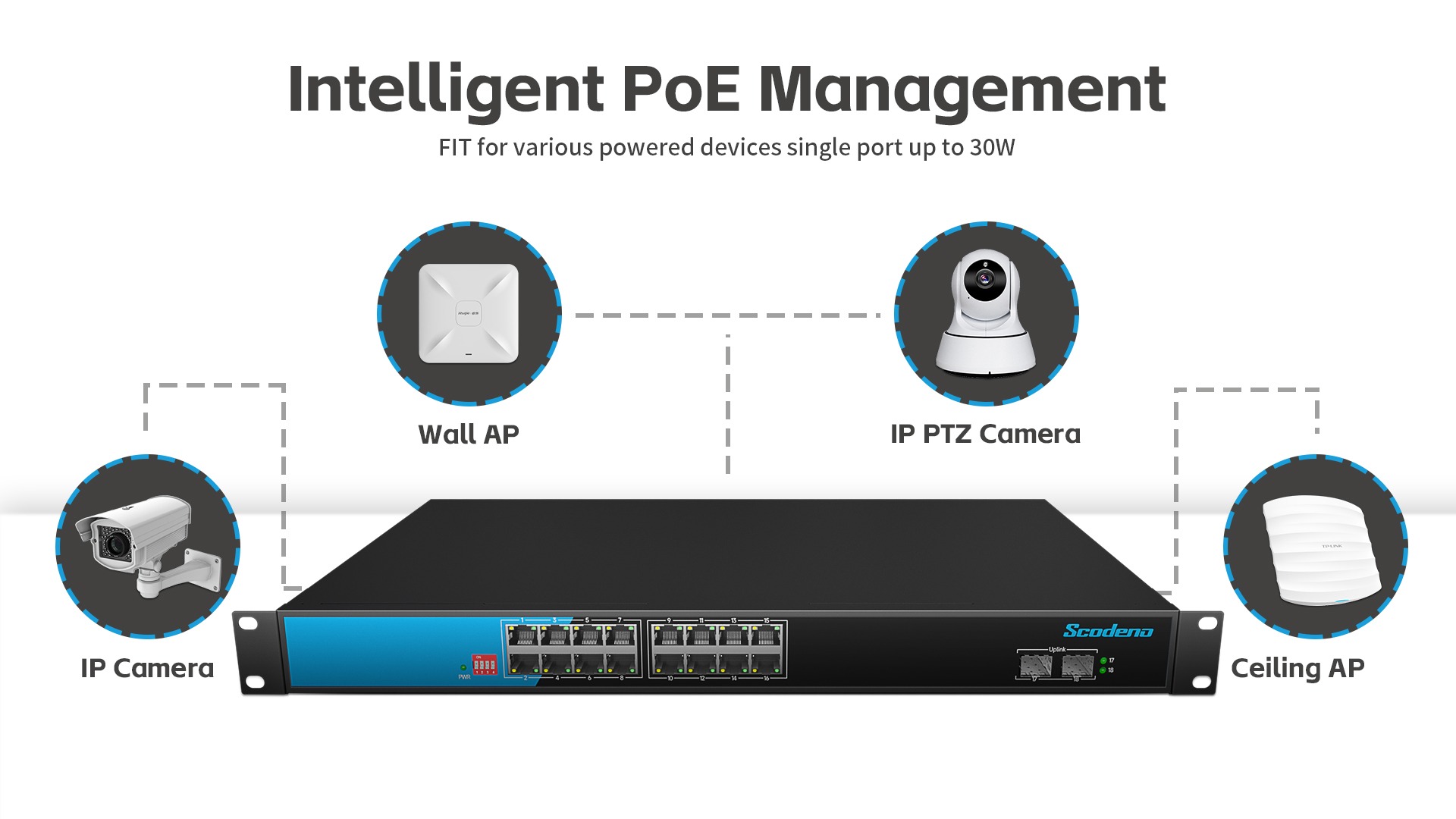

PoE Chipset	Realtek, Support PoE negotiate power supply
PoE Pin	1,2 + / 3,4-
Single Port Max Power	30W
AI DIP Switch	PoE Watchdog: Auto reboot the unresponsive PoE devices for recovery
	250M: 1-8 ports support 250m power and data transmission
	Port Isolation: All LAN ports are isolated from each other to avoid interference
	Network storm control: Able to limited the network storm within 3%
Total PoE Power	280W
Switch Capacity	52G
Forwarding Rate	38.6Mpps
Mac Table	8K
Buffer	4.1M
Forwarding Delay	<8us
MDX/MIDX	Support
Working Temperature	(-10℃~+50℃)
Storage temperature	(-40℃~+70℃)
Relative humidity	5%~95% non-condensing
MTBF	100000 Hours
ESD	8KV~ 15KV
Surge Proof	General 6000V , Difference: 2000V
Free Fall	0.5m
Product Size	44028544mmLxWxH
Weight	3.5Kgs
Power In	AC 100-240V 50/60Hz
Certificate	CE, FCC, RoHS
