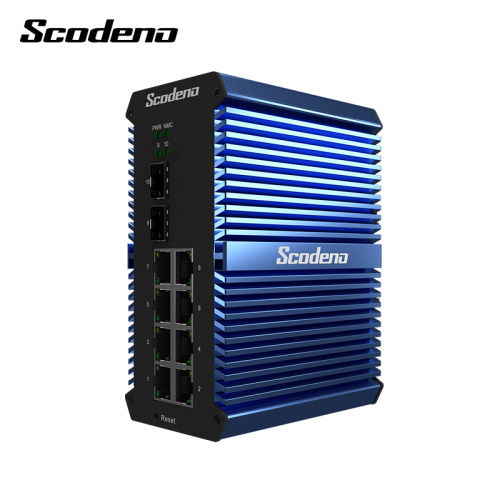

Industrial Ethernet PoE Switch 1+8Ports 100/1000M
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|---|
| Productivity: | 1000000pcs/Month |
| Certificate: | ISO9001,CCC,FCC, CE, RoHS |
| HS Code: | 8517622990 |
The device is 1*1000Base-X, 8*10/100/1000Base-T Managed PoE Industrial switch, through the fanless cooling circuit design, wide range working environment temperature, high protection level and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality, and integrated switching, safety and various rich protocols, simultaneously supported The public Ethernet multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.
Provider Mode Ports
Fixed port
1*1000 Base-X，8*10/100/1000 Base-T
Management Port
Support console
Power interface
Phoenix terminal, redundant dual power supply
LED Indicators
PWR，Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair
0-100m（CAT5e,CAT6）
Monomode optical fiber
20/40/60/80/100KM
Multimode (optical) fiber
550m
Network Topology
Ring topology
Support
Star topology
Support
Bus topology
Support
Tree Topology
Support
Hybrid topology
Support
Electrical Specifications
Input voltage
DC12-58V(Non-PoE), DC48~58V(PoE)
Total Power consumption
<10W(Non-PoE), <250W(PoE)
PoE Support
PoE port
1-8
PoE Protocol
802.3af，802.3at
Pin Assignment
1,2,3,6
PoE Management
Support
Layer 2 Switching
Switching capacity
36G
Packet forwarding rate
26.78Mpps
MAC address table
16K
VLAN
Support 4K
Buffer
12M
Forwarding delay
<10us
MDX/MIDX
Support
Flow control
Support
Jumbo Frame
Support 10Kbytes
Spanning Tree
Support STP/RSTP/MSTP
Ring Protocol
Support ERPS
Link Aggregation
Support 12 group
Multicast
Support IGMP Snooping
Port Mirroring
Support
Storm Control
Support
Interface Counters
Support
QINQ
Support
802.1X
Support
MAC Authentication
Support
Port Isolation
Support
Rmon
Support
NTP client
Support
DHCP client
Support
DHCP snooping
Support
DHCP CLIENT
Support
PING/TRACEROUT
Support
Dying gasp
Support
DDM
Support
Convergence
ACL
Support ACL 500
Support IP standard ACL
Support MAC expand ACL
Support IP expand ACL
QOS
Support QoS re-marking, priority mapping
Support SP, WRR queue scheduling
Support engress rate-limited, egress rate-limit
Support Policy-based QoS
Management
CLI
Support
Console
Support
Telnet
Support
WEB management
Support
Management IP
Support IPV4/IPV6
SNMP
Support SNMPv1/v2c/v3
User Management
Support
System Log
Support
Configuration File Download/Upload
Support
Upgrade Firmware
Support
Environment
Operating temperature
-40℃~+75℃
The device is tested for 8 hours at temperatures in 85°C
Storage temperature
-40℃~+85℃
Relative humidity
5%~95% （non-condensing）
Thermal methods
Fanless design
MTBF
100,000 hours
Mechanical Dimensions
Product size
65X104X143mm
Installation Method
DIN-rail
Weight
0.85KG
EMC & Ingress Protection
IP Level
IP50
Surge protection of Power
IEC 61000-4-5 Level X（10KV/10KV）（8/20us）
Surge protection of Ethernet port
IEC 61000-4-5 Level X（6KV/4KV）（10/700us）
RS
IEC 61000-4-3 Level 3（10V/m）
EFI
IEC 61000-4-4 Level 3（1V/2V）
CS
IEC 61000-4-6 Level 3（10V/m）
PFMF
IEC 61000-4-8 Level 4（30A/m）
DIP
IEC 61000-4-11 Level 3 （10V）
ESD
IEC 61000-4-2 Level 4（8K/15K）
Free fall
0.5m
Authentication
Authentication
CCC/CE/FCC/RoHS
Accessories
Accessories
Device, Terminals, Specification, Certificate
Adapter (Optional)
Optional Model
XPTN-9000-85-1GX8GT-VX
1*1000Mbps SFP Port
8*10/100/1000Mbps RJ45 Port
FAQ :
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What’s the payment type?
A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.
Q: What’s the accepted trade terms?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.
